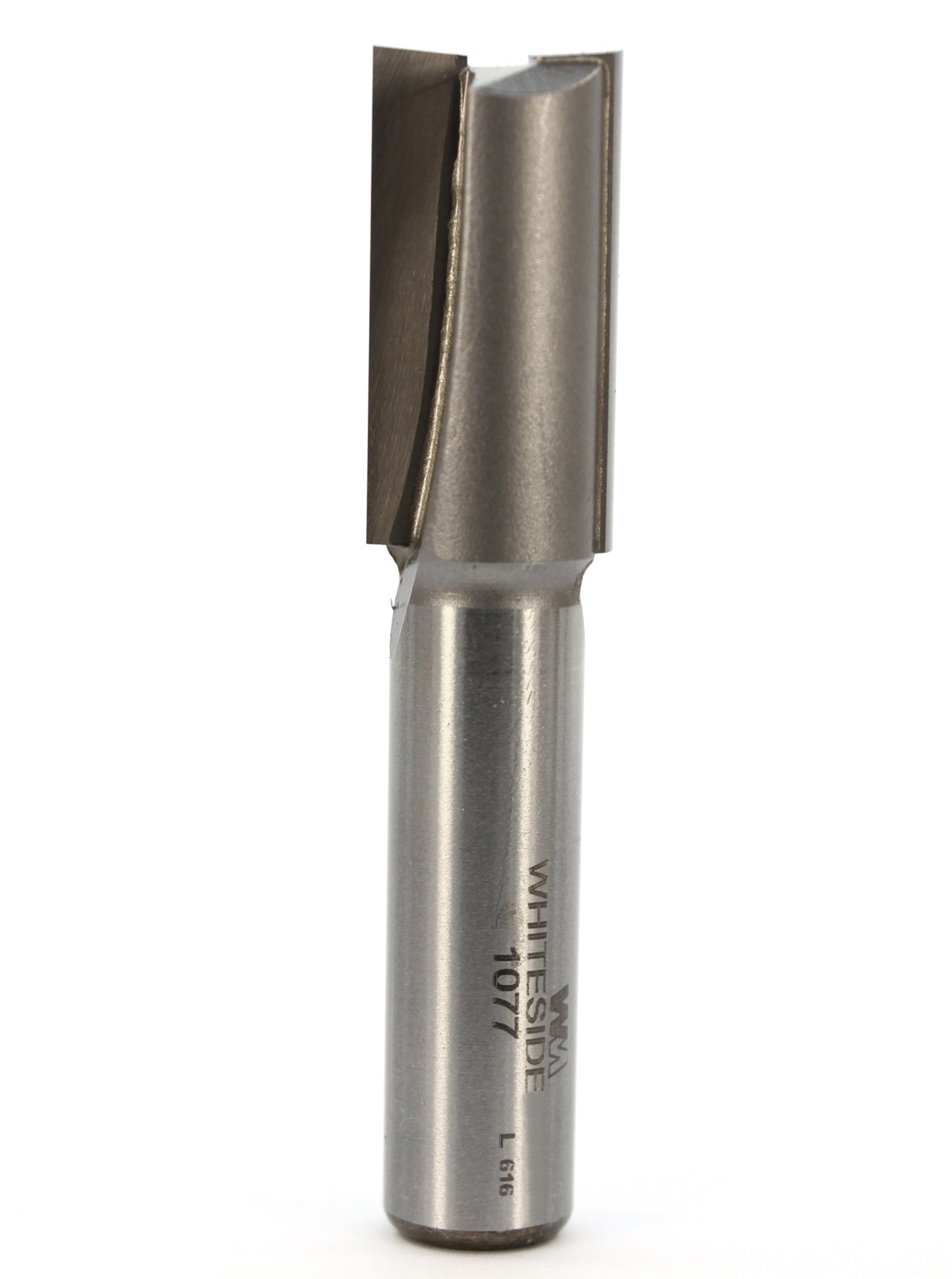

1077

Straight Bit

1/2"SH, 5/8"CD, 1-1/4"CL

Product Description



Standard Straight bit with plunging capabilities for cutting grooves, dados, mortising, and more.

Materials: Natural woods, composite woods, hard plastics

Recommended RPM: 14,000-16,000 (max 24,000)

Part # Cutting Dia. Cutting Length Overall Length Special Use
1/2" SHANK - Single Flute
1049 3/8" 1" 2-5/8" -
1050 3/8" 1-1/4" 2-7/8" -
1051 1/2" 3/4" 2-3/8" Midwest Machine
1052 1/2" 1-1/4" 2-7/8" -
1054 1/2" 1-1/2" 3-1/8" -
1055 1/2" 2" 4-1/8" -
1055A 1/2" 2-1/2" 4-3/8" -
1/2" SHANK - Two Flute
1058 1/4" 3/4" 2-3/8" Incra®
1059 9/32" 3/4" 2-3/8" -
1060 5/16" 1" 2-5/8" -
1061 3/8" 3/4" 2-3/8" -
1062 3/8" 1" 2-5/8" Incra®
1063 3/8" 1-1/4" 2-7/8" -
1064A 13/32" 1" 2-1/2" P.C. #43743PC
1065 7/16" 1-1/4" 2-7/8" -
1065L 7/16" 1-1/4" 3-1/4" Leigh #150
1065A 31/64" 1" 2-5/8" Plywood Dado
1066 1/2" 1" 2-5/8" -
1067 1/2" 1-1/4" 2-7/8" Leigh #160
1067F 1/2" 1-1/4" 2-7/8" Carbide Boring Point
1069 1/2" 1-1/2" 3-1/8" -
1070 1/2" 1-1/2" 4-1/8" -
1071 1/2" 2" 3-1/2" -
1072 1/2" 2" 4-1/8" -
1073 1/2" 2-1/2" 4-3/8" -
1073-01 1/2" 2-1/2" 5-1/2" -
1073-03 1/2" 2-1/2" 5-1/2" Flat on Shank
1074 17/32" 1-1/4" 2-7/8" -
1075 9/16" 1-1/4" 3" -
1075A 19/32" 3/4" 2-1/4" Plywood Dado
1076 5/8" 1" 2-1/2" -
1076F 5/8" 1" 2-1/2" Carbide Boring Point
1077 5/8" 1-1/4" 3" -
1078 5/8" 1-1/2" 3" -
1079 5/8" 2" 4" -
1080 21/32" 1-1/4" 3" -
1082 11/16" 1" 2-1/2" -
1083 11/16" 1-1/4" 3" -
1083A 23/32" 1" 2-1/2" Plywood Dado
1302A 3/4" 5/8" 2-1/4" Mortising
1084 3/4" 1" 2-3/4" -
1085 3/4" 1-1/4" 3" -
1085F 3/4" 1-1/4" 3" Carbide Boring Point
1086 3/4" 1-1/2" 3-1/4" -
1087 3/4" 2" 3-5/8" -
1088 25/32" 1-1/4" 3" -
1090 13/16" 1-1/4" 3" -
1091 7/8" 1-1/4" 3" -
1092 15/16" 1-1/4" 3" -
1093 1" 1-1/4" 3" -
1093F 1" 1-1/4" 3" Carbide Boring Point
1094 1" 1-1/2" 3" -
1095 1" 2" 3-3/4" -
1096 1-1/8" 1-1/2" 3" -
1304 1-1/4" 1/2" 2-1/8" Mortising
1097 1-1/4" 1-1/2" 3" -
1098 1-3/8" 1-1/4" 3" -
1099 1-1/2" 1-1/4" 3" -
1100 1-3/4" 1-1/4" 3" -
1101 2" 1-1/4" 3" -
