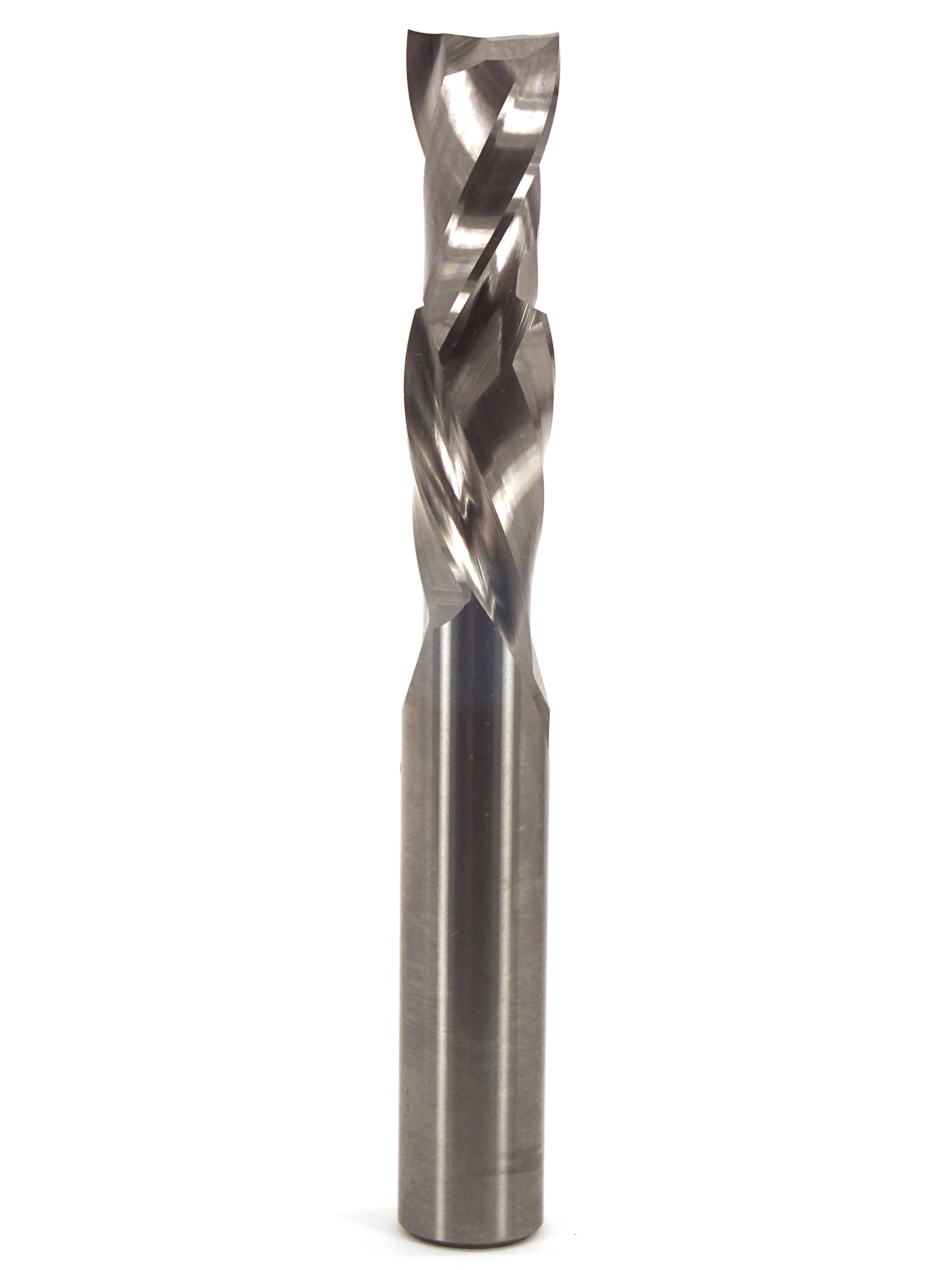

UD5222
Up/Down Cut Spiral
1/2"SH, 1/2"CD, 2-1/4"CL
Product Description
Made from solid carbide, each bit contains up cut and down cut flutes. This flute design creates a compression cut that prevents fraying and splintering. Compression spirals will save you time and money on finishing your projects edges by reducing sanding time.
Designed specifically for the fiberglass and wood door industry, with 2-1/4" cutting length.
Materials: Natural woods, composites, hard plastics, thin aluminum
Recommended RPM: 16,000-18,000 (max 24,000)
Similar Sizes
| Part # | Shank Dia. | Cutting Dia. | Cutting Length | Overall Length |
|---|---|---|---|---|
| UD1602 | 1/4" | 1/8" | 1/2" | 2-1/2" |
| UD2102 | 1/4" | 1/4" | 1" | 2-1/2" |
| * UD4102M | 3/8" | 3/8" | 1" | 2-1/2" |
| UD4122 | 3/8" | 3/8" | 1-1/4" | 3" |
| * UD4122M | 3/8" | 3/8" | 1-1/4" | 3" |
| UD5122 | 1/2" | 1/2" | 1-1/4" | 3" |
| * UD5122M | 1/2" | 1/2" | 1-1/4" | 3" |
| UD5152 | 1/2" | 1/2" | 1-1/2" | 3-1/2" |
| UD5162 | 1/2" | 1/2" | 1-5/8" | 3-1/2" |
| * UD5162M | 1/2" | 1/2" | 1-5/8" | 3-1/2" |
| UD5202 | 1/2" | 1/2" | 2" | 4" |
| UD5222 | 1/2" | 1/2" | 2-1/4" | 5-1/2" |
| UD6152 | 5/8" | 5/8" | 1-1/2" | 4" |
| UD7152 | 3/4" | 3/4" | 1-1/2" | 4" |
| UD7202 | 3/4" | 3/4" | 2" | 5" |
* Mortise Style - These bits have a short up-cut end flute. This design allows down shear cutting action to the top surface during shallow cuts.
Related Items

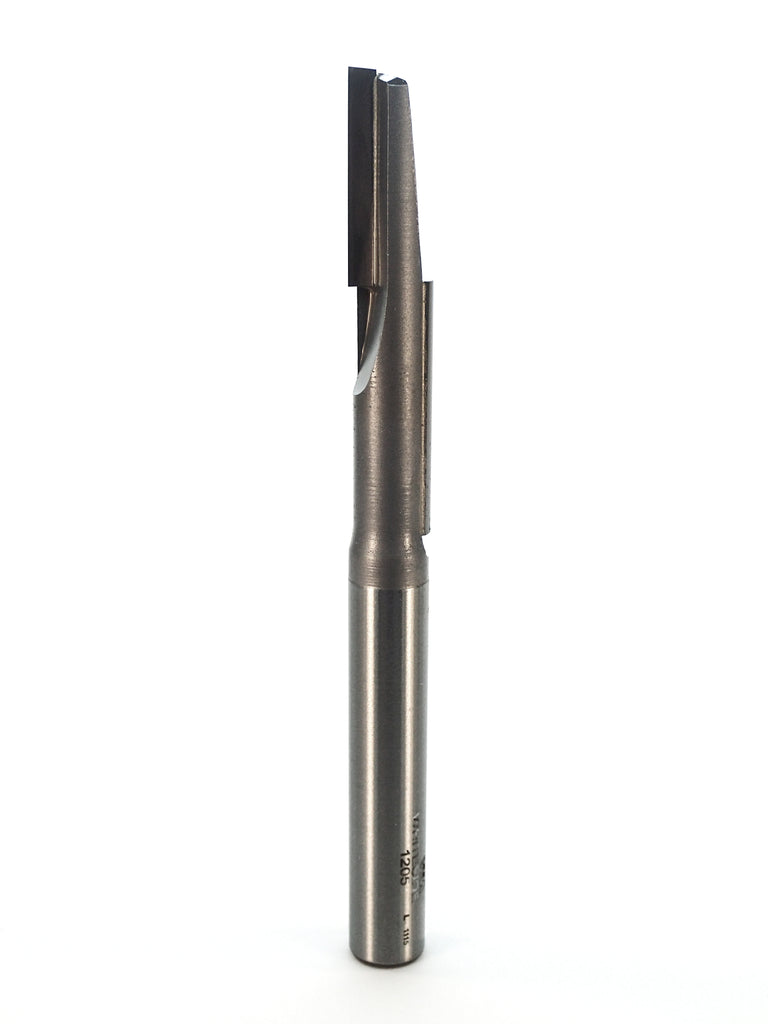

Straight Staggertooth
1/2"SH, 1/2"CD, 2-5/8"CL
As their name implies, Staggertooth bits feature two staggered cutting edges. While the stagger adds strength to the tool, it also provides the ability for part of... View full product details

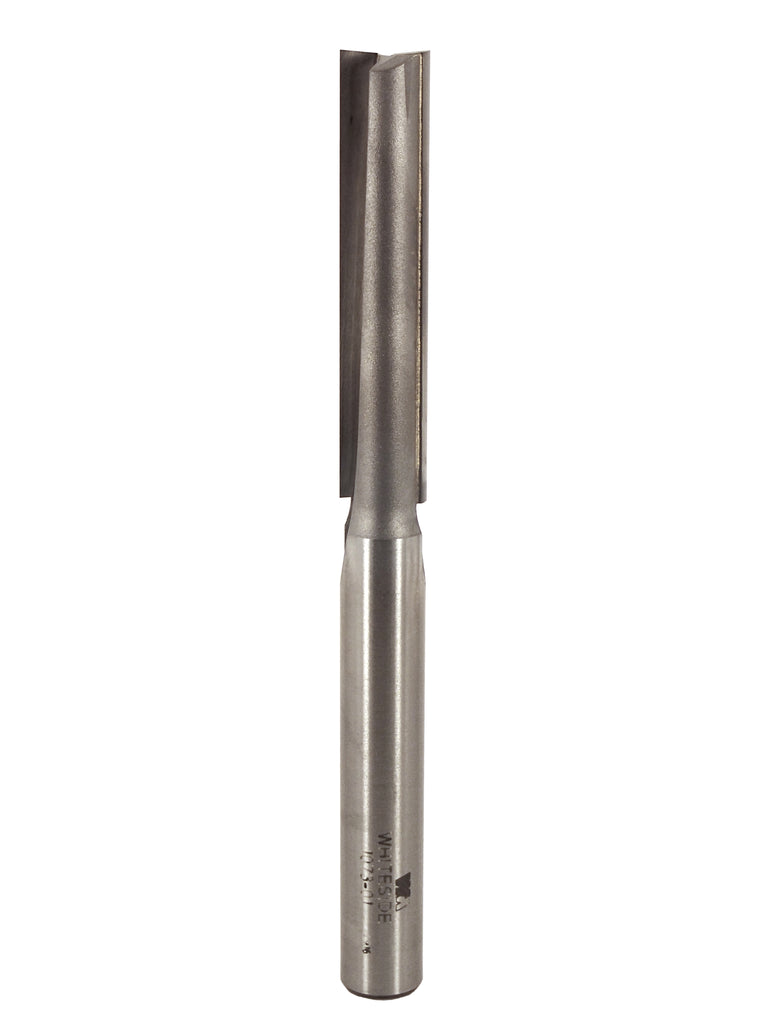

Straight Bit
1/2"SH, 1/2"CD, 2-1/2"CL
Whiteside's Standard Straight bit is fine-tuned for cutting grooves, dados, mortising, and more. This traditional design is accompanied with a 1/2" shank, plunging capability, and quality... View full product details

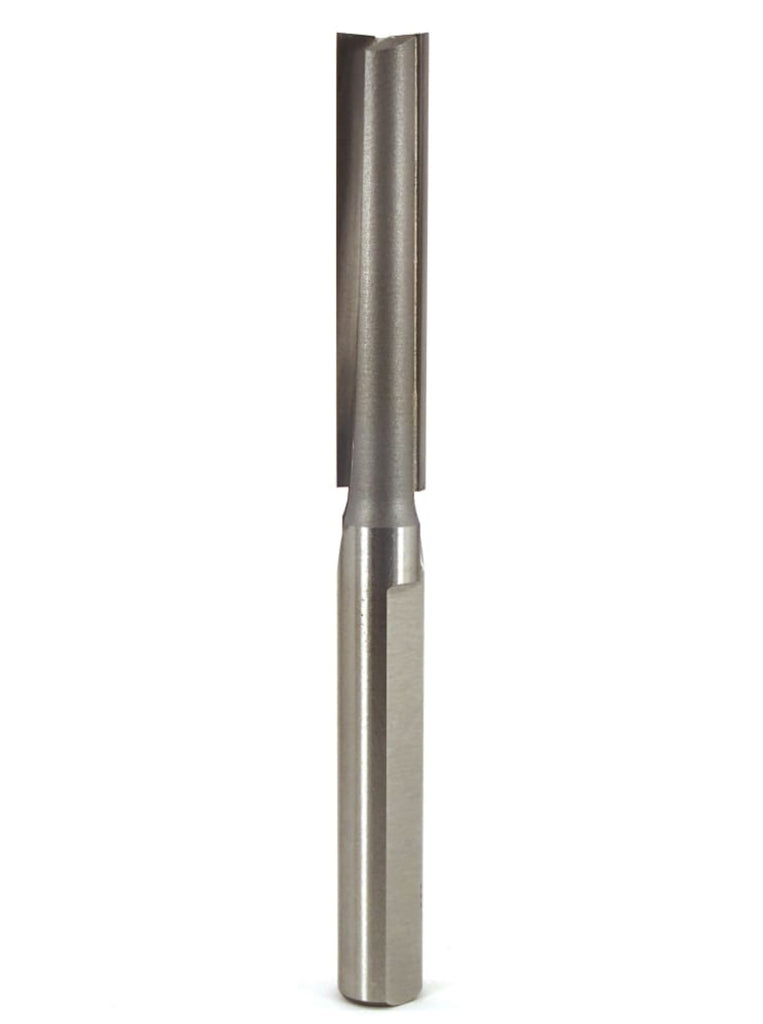

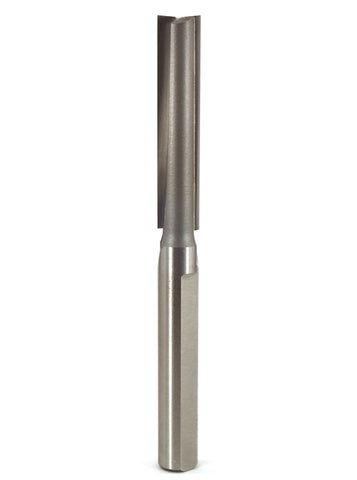

Straight- Flat on Shank
