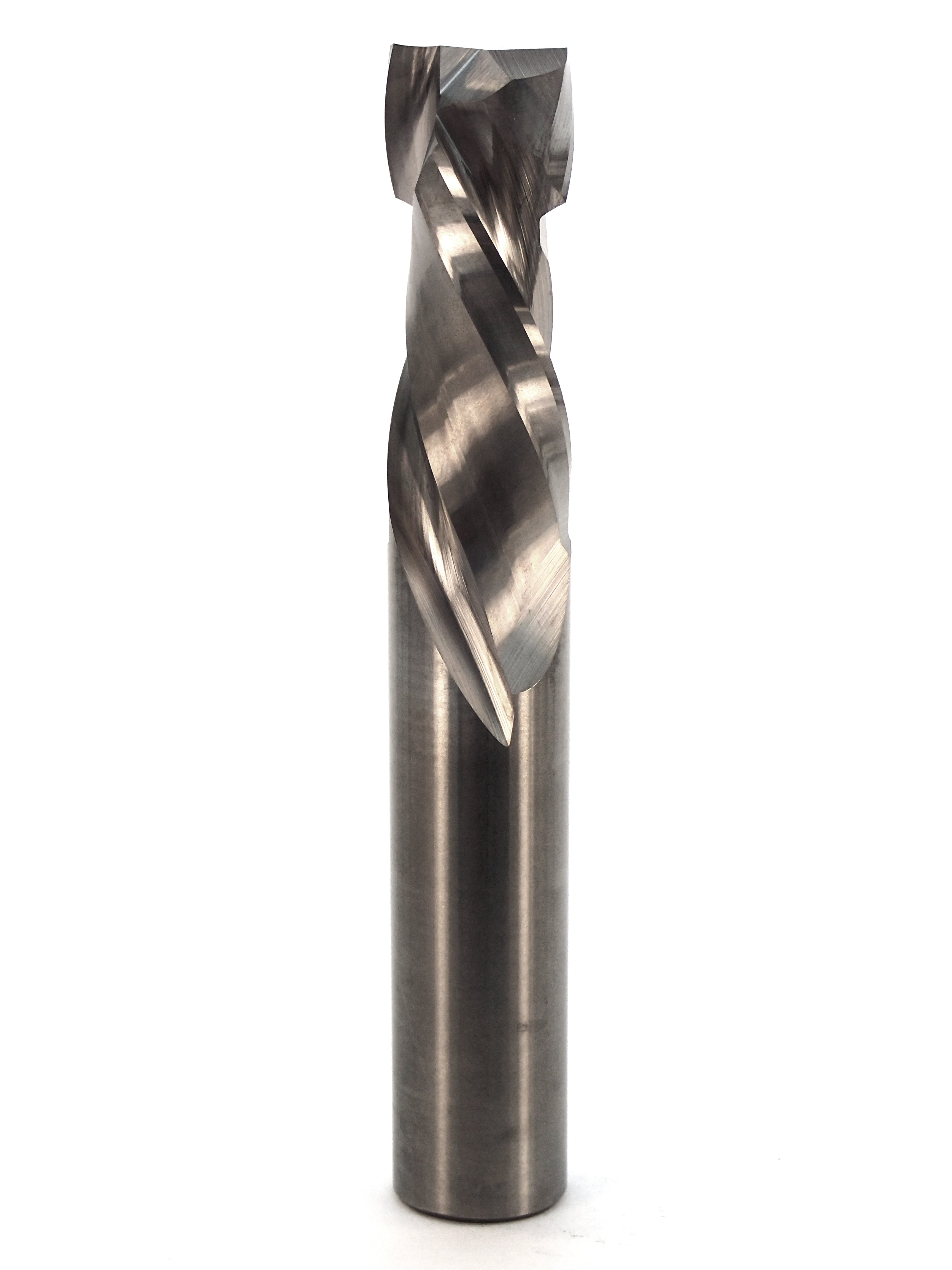

UD6152

Up/Down Cut Spiral

2+2, 5/8"SH, 5/8"CD, 1-1/2"CL

Product Description



Made from solid carbide, each bit has both up cut and down cut flutes to provide a smooth cut to both the top and bottom side of your project.

Materials: Natural woods, composites, hard plastics, thin aluminum

Recommended RPM: 14,000-16,000 (max 24,000)

Part # Shank Dia. Cutting Dia. Cutting Length Overall Length
  UD1602 1/4" 1/8" 1/2" 2-1/2"
  UD2102 1/4" 1/4" 1" 2-1/2"
UD4102M 3/8" 3/8" 1" 2-1/2"
  UD4122 3/8" 3/8" 1-1/4" 3"
UD4122M 3/8" 3/8" 1-1/4" 3"
  UD5122 1/2" 1/2" 1-1/4" 3"
UD5122M 1/2" 1/2" 1-1/4" 3"
  UD5152 1/2" 1/2" 1-1/2" 3-1/2"
  UD5162 1/2" 1/2" 1-5/8" 3-1/2"
UD5162M 1/2" 1/2" 1-5/8" 3-1/2"
  UD5202 1/2" 1/2" 2" 4"
  UD5222 1/2" 1/2" 2-1/4" 5-1/2"
  UD6152 5/8" 5/8" 1-1/2" 4"
  UD7152 3/4" 3/4" 1-1/2" 4"
  UD7202 3/4" 3/4" 2" 5"

* Mortise Style - These bits have a short up-cut end flute. This design allows down shear cutting action to the top surface during shallow cuts.
