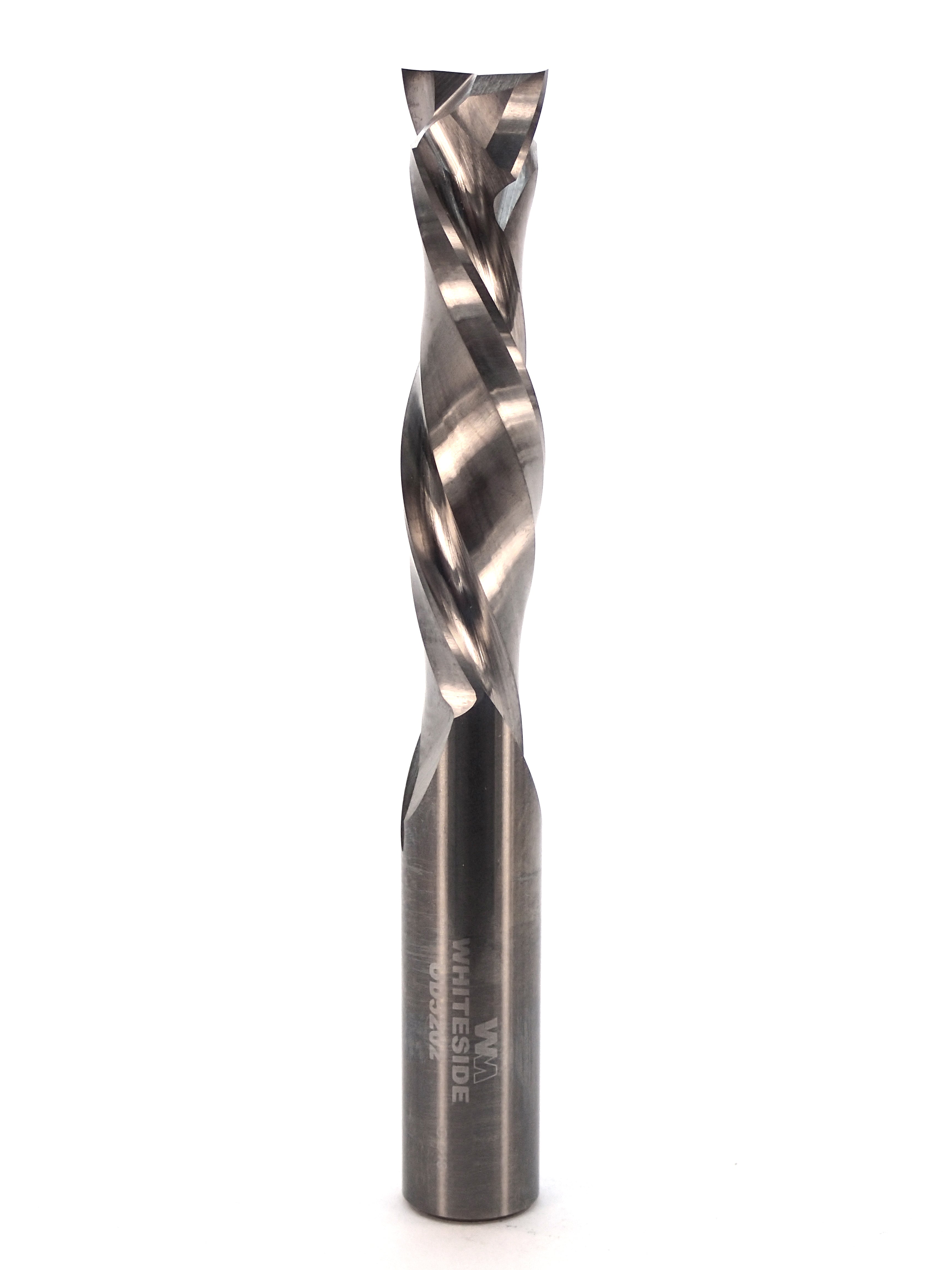

UD5202

Up/Down Cut Spiral

2+2, 1/2"SH, 1/2"CD, 2"CL

Materials: Natural woods, composites, hard plastics, thin aluminum

Recommended RPM: 16,000-18,000 (max 24,000)

Made from solid carbide, each bit has both up cut and down cut flutes to provide a smooth cut to both the top and bottom side of your project.

TOOL SPECS: Solid carbide, 2+2 compression spiral with 1/2" cutting diameter, 1/2" shank, 2" cutting length, and 4" overall length for use in routers with a 1/2" collet.
COMPRESSION SPIRAL: Features upcut and downcut edges for chip-free finishes on both sides of the material. The two-flute design ensures smooth, precise results and is widely used.
UP AND COWN CUT: Designed with up cut and down cut edges, this tool performs like two separate bits, providing the many benefits of both styles in one tool.
MULTI-PURPOSE TOOLING: Plunge-capable bit for woodworking. Perfect for creating grooves, dados, slots, pockets, and more.
MATERIAL: Perfect for plywood and laminate cuts where chip out is common. Also performs excellent in hardwoods and softwoods, providing clean, smooth cuts in various materials.
MACHINES: Perfect for routing grooves, dados, trim, or through cuts. Compatible with hand-held routers, router tables, and CNC routers for precision woodworking.

Part #	Shank Dia.	Cutting Dia.	Cutting Length	Overall Length
UD1602	1/4"	1/8"	1/2"	2-1/2"
UD2102	1/4"	1/4"	1"	2-1/2"
* UD4102M	3/8"	3/8"	1"	2-1/2"
UD4122	3/8"	3/8"	1-1/4"	3"
* UD4122M	3/8"	3/8"	1-1/4"	3"
UD5122	1/2"	1/2"	1-1/4"	3"
* UD5122M	1/2"	1/2"	1-1/4"	3"
UD5152	1/2"	1/2"	1-1/2"	3-1/2"
UD5162	1/2"	1/2"	1-5/8"	3-1/2"
* UD5162M	1/2"	1/2"	1-5/8"	3-1/2"
UD5202	1/2"	1/2"	2"	4"
UD5222	1/2"	1/2"	2-1/4"	5-1/2"
UD6152	5/8"	5/8"	1-1/2"	4"
UD7152	3/4"	3/4"	1-1/2"	4"
UD7202	3/4"	3/4"	2"	5"
