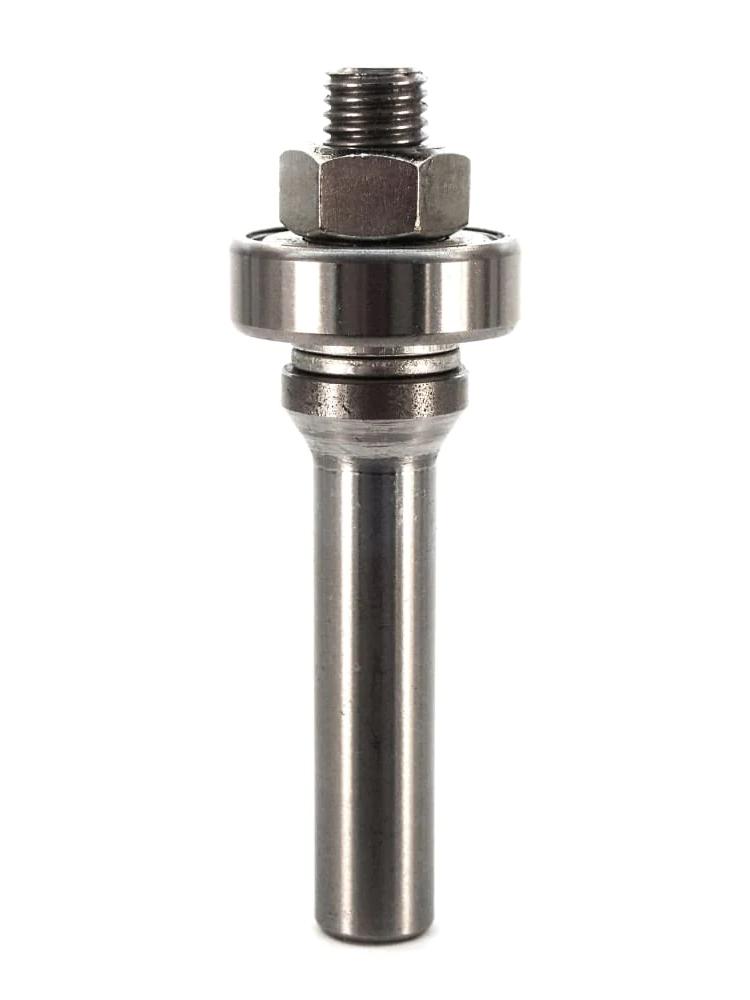

A220B

Slotting Cutter Arbor

1/2"SH, 5/16"AD, 7/8"AL 4"OAL

Product Description

This arbor has an extra long shank for extended reach and is designed for use with the 1-7/8" cutting diameter Slotting Cutters in the 6700 series. The arbor includes a B5 bearing for a 1/2" depth of cut. Add a different size bearing to change the depth of cut.

Slotting Cutter Arbors

Part # Shank Dia. Overall Length
A200B 1/4" 2-3/8"
A205B 3/8" 2-3/8"
A210B 1/2" 2-5/8"
A220B 1/2" 4"

Note: A220B has an extra long shank for extended reach.
All include B5 bearing for 1/2" depth of cut

  • Use B20 Bearing for 9/16" depth of cut
  • Use B25 Bearing for 3/8" depth of cut
  • Use B26 Bearing for 1/4" depth of cut
  • Use B27 Bearing for 5/8" depth of cut

Slotting Cutters

Part # 3-Wing Part # 4-Wing Decimal Kerf Fractional Kerf Large Diameter
6700A 6700B .062" 1/16" 1-7/8"
6701A - .070" - 1-7/8"
6701C - .078" 5/64" 1-7/8"
6702A - .080" - 1-7/8"
6703A 6703B .094" 3/32" 1-7/8"
6704A - .100" - 1-7/8"
6704C - .110" 7/64" 1-7/8"
6705A 6705B .125" 1/8" 1-7/8"
6708A - .156" 5/32" 1-7/8"
6709A - .187" 3/16" 1-7/8"
6709C - .218" 7/32" 1-7/8"
6710A 6710B .250" 1/4" 1-7/8"
6712A - .281" 9/32" 1-7/8"
6715A - .312" 5/16" 1-7/8"

Special Sizes available upon request.
