6715A

Slotting Cutter

5/16"B, 0.312"CL, 3-Wing

Product Description

Materials: Natural woods, composite woods

Recommended RPM: 12,000-15,000 (max 16,000)

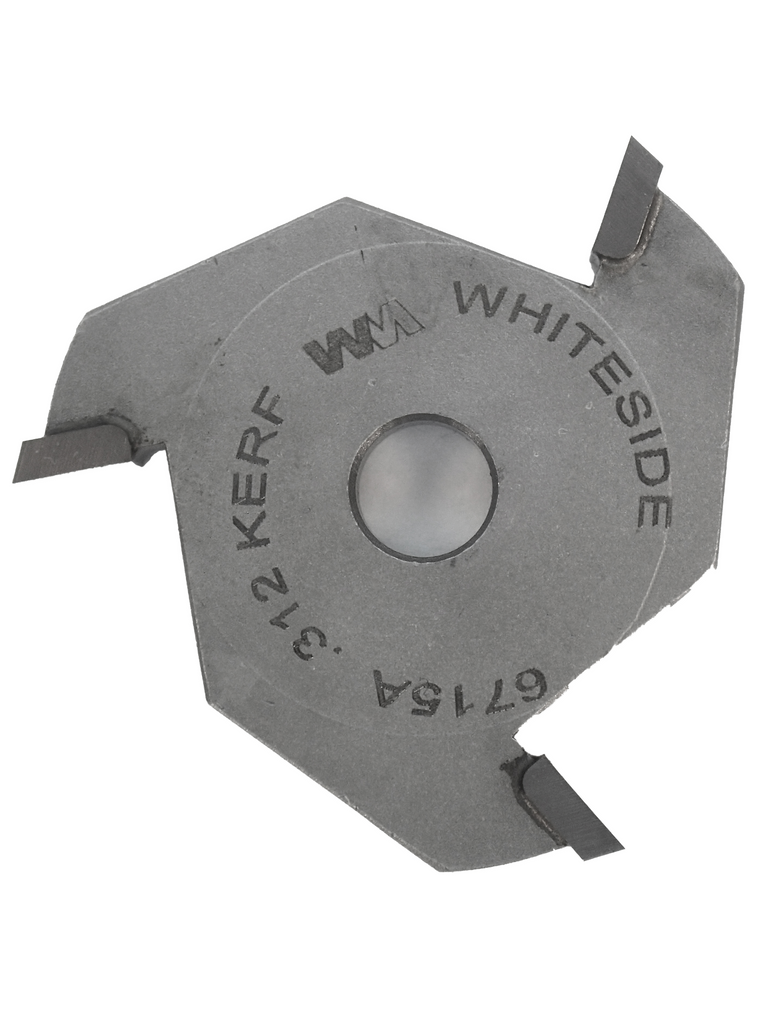

Straightforward and easy to use, this 1-7/8" diameter slotting cutter makes a small slot into your workpiece for a wide variety of applications. Whiteside offers a selection of sizes in 3-wing and 4-wing configurations. Do not forget your arbor for the slot cutter. Our arbors include a B5 bearing for a 1/2" depth of cut.

TOOL SPECS: Carbide-tipped slotting cutter with 1-7/8" cutting diameter, 5/16" bore, 3 wings, and 5/16" kerf.
SLOT CUTTING: Ideal for creating precise slots and grooves in wood and composite materials, perfect for adding functionality and detail.
JOINTS/SPLINES: Perfect for making biscuit joints, tongue and groove joints, and splines, ensuring strong and precise connections.
THREE WING: Designed with 3 cutting edges for increased material removal and a finer finish.
ASSEMBLY: Mount on an 5/16" arbor for use. The bearing diameter placed on the arbor will provide varying depths of cut.
MATERIALS: Perfect for use on natural woods and composite woods, providing clean and precise cuts across a variety of surfaces.

Prop 65 Warning

Slotting Cutters

Part # 3-Wing	Part # 4-Wing	Decimal Kerf	Fractional Kerf	Large Diameter
6700A	6700B	.062"	1/16"	1-7/8"
6701A	-	.070"	-	1-7/8"
6701C	-	.078"	5/64"	1-7/8"
6702A	-	.080"	-	1-7/8"
6703A	6703B	.094"	3/32"	1-7/8"
6704A	-	.100"	-	1-7/8"
6704C	-	.110"	7/64"	1-7/8"
6705A	6705B	.125"	1/8"	1-7/8"
6708A	-	.156"	5/32"	1-7/8"
6709A	-	.187"	3/16"	1-7/8"
6709C	-	.218"	7/32"	1-7/8"
6710A	6710B	.250"	1/4"	1-7/8"
6712A	-	.281"	9/32"	1-7/8"
6715A	-	.312"	5/16"	1-7/8"
