2306

45° Chamfer Bit

1/2"SH, 45°, 1-1/16"CL

Product Description



Materials: Natural woods, composite woods, hard plastics

Recommended RPM: 13,000-15,000 (max 16,000)

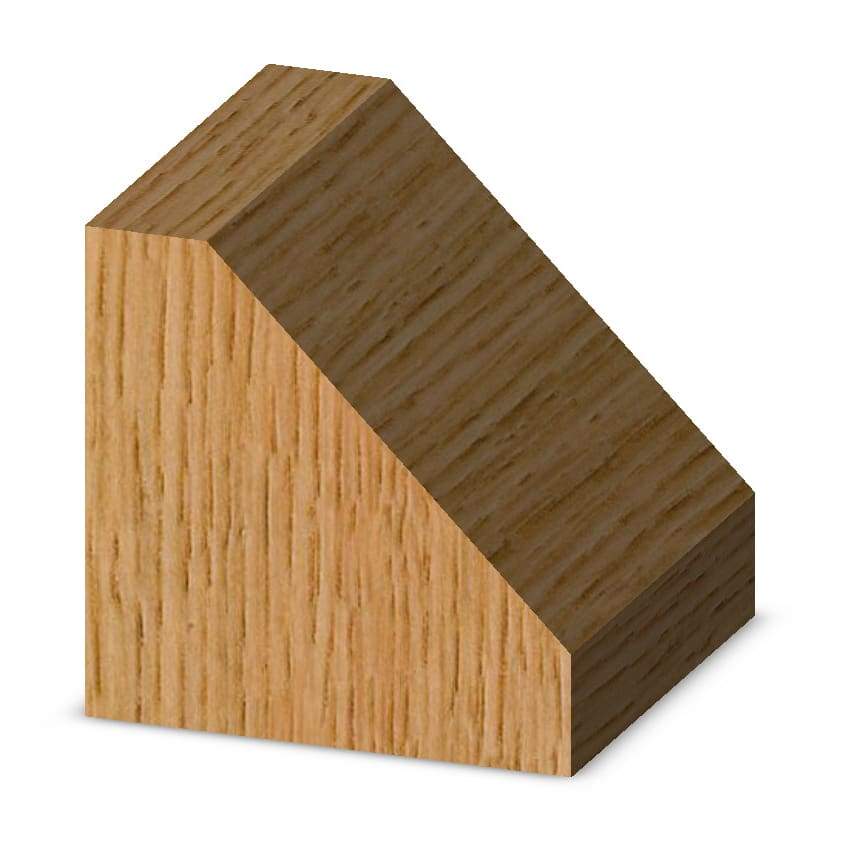

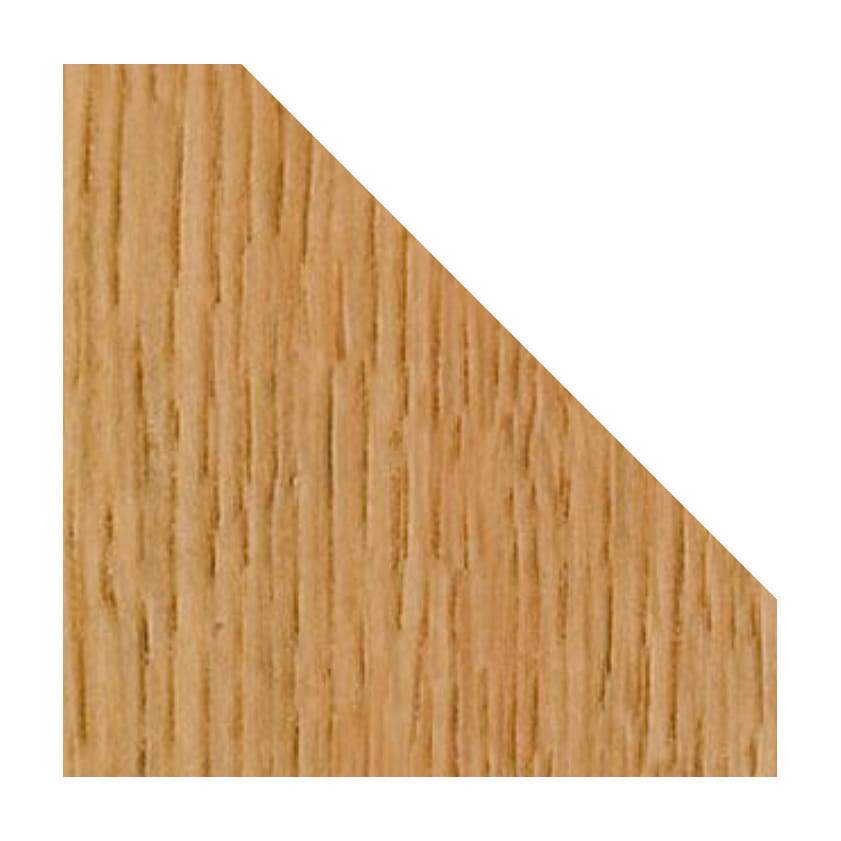

This chamfer bit is designed to cut a 45 degree angle on your work piece. Whether you are using the 45° as a decorative edge or making mitered corners, the two flute carbide tipped design will give you an accurate cut every time.

  • TOOL SPECS: Carbide-tipped chamfer bit with 45° angle, 1-1/16" cutting length, 3/4" cutting height, 1/2" shank, and 2" large diameter for use with 1/2" collets.
  • CHAMFER: Ideal for creating a 45-degree beveled edge on workpieces, ensuring precise, clean cuts on both sides for a professional finish on various woodworking projects.
  • APPLICATIONS: Ideal for removing sharp wedges or adding a visual detail to wood, perfect for enhancing modern or contemporary designs with smooth, clean edges and professional finishes.
  • BEARING GUIDE: A bearing guide is located on the end of the bit, ensuring precise cuts and optimal performance for your projects.
  • CARBIDE TIPPED: Offers an excellent balance of quality and cost, making it ideal for a wide range of applications.
  • STEEL SHANK: The steel body creates a rigid tool with reduced vibration while the carbide cutting edges provide extended life.
Part # Degree of Angle Cutting Length Cutting Height Large Dia.
1/4" SHANK
2292 45° 7/16" 5/16" 1"
   2302 45° 5/8" 7/16" 1-3/8"
1/2" SHANK
   2305 45° 5/8" 7/16" 1-3/8"
   2306 45° 1-1/16" 3/4" 2"
   2310 45° 1-1/2" 1-1/16" 2-5/8"

Bearing Number: B3 (Use B2 on #2292)

* 2292 has 1" large diameter for use in trim routers
