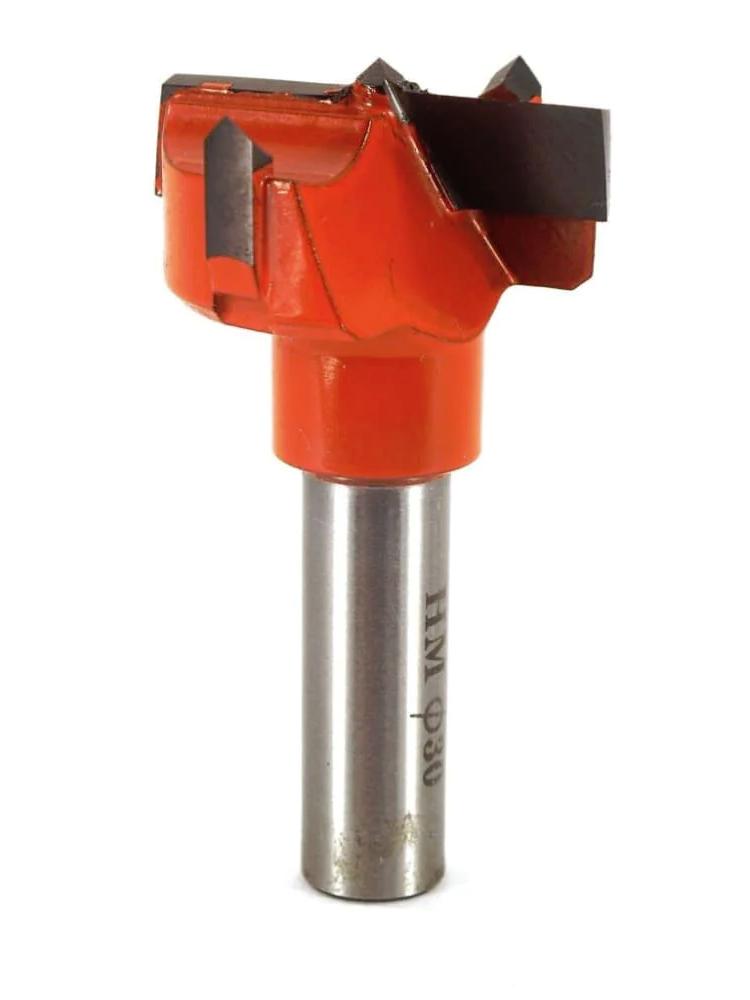

DH30-57LH

Left Hand Hinge Boring Bit

30mmCD, 57mmOAL

Product Information

These bits are designed to bore a small recess into your workpiece for cup hinges to be installed. Make sure to review what diameter you need to fit your hinge.

Whiteside Hinge Boring Bit

Part # Shank Dia. Cutting Dia. Overall Length
6140 3/8" 35mm 2-3/8"

Use in drill press or boring machine. NOT for use in routers.

Hinge Boring Bits- Left Hand

Part # 57mm OAL Part # 70mm OAL Shank Dia. Cutting Dia.
DH15-57LH DH15-70LH 10mm 15mm
DH20-57LH DH20-70LH 10mm 20mm
DH25-57LH DH25-70LH 10mm 25mm
DH30-57LH DH30-70LH 10mm 30mm
DH35-57LH DH35-70LH 10mm 35mm

Supplied with flat on shank.

Hinge Boring Bits- Right Hand

Part # 57mm OAL Part # 70mm OAL Shank Dia. Cutting Dia.
DH15-57 DH15-70 10mm 15mm
DH20-57 DH20-70 10mm 20mm
DH25-57 DH25-70 10mm 25mm
DH30-57 DH30-70 10mm 30mm
DH35-57 DH35-70 10mm 35mm

Supplied with flat on shank.
