6140

Boring Bit - Cup Hinge

3/8"SH, 35mm CD

Product Information

Whiteside Machine Company's Carbide Tipped Boring Bits feature a centering point and two carbide spurs to eliminate tear-out. The 35mm diameter bit is widely used for European style cabinet door hinges. Made in the USA by Whiteside Machine Company.



Use in drill press or boring machine. NOT for use in routers.

Whiteside Hinge Boring Bit

Part # Shank Dia. Cutting Dia. Overall Length
6140 3/8" 35mm 2-3/8"

Use in drill press or boring machine. NOT for use in routers.

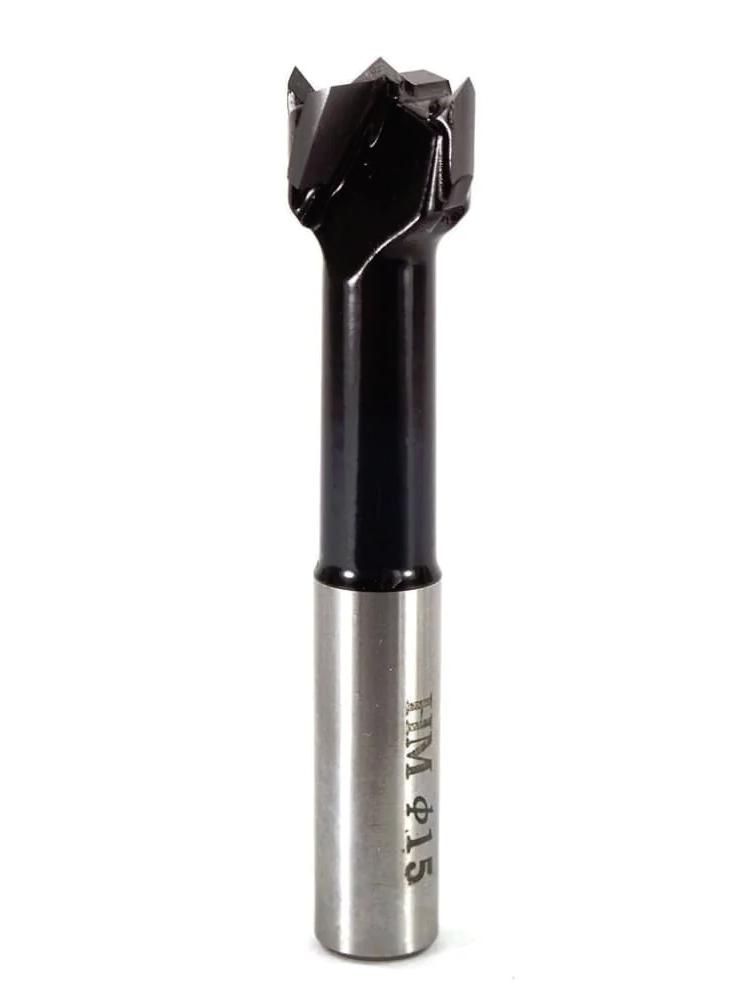

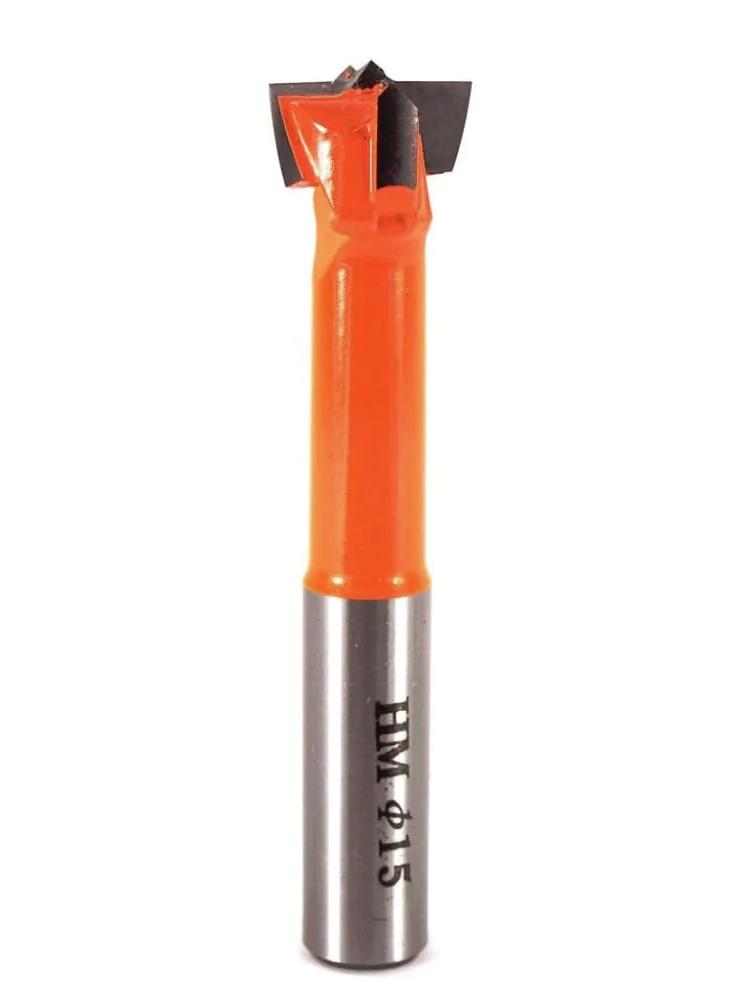

Hinge Boring Bits- Right Hand

Part # 57mm OAL Part # 70mm OAL Shank Dia. Cutting Dia.
DH15-57 DH15-70 10mm 15mm
DH20-57 DH20-70 10mm 20mm
DH25-57 DH25-70 10mm 25mm
DH30-57 DH30-70 10mm 30mm
DH35-57 DH35-70 10mm 35mm

Supplied with flat on shank.

Hinge Boring Bits- Left Hand

Part # 57mm OAL Part # 70mm OAL Shank Dia. Cutting Dia.
DH15-57LH DH15-70LH 10mm 15mm
DH20-57LH DH20-70LH 10mm 20mm
DH25-57LH DH25-70LH 10mm 25mm
DH30-57LH DH30-70LH 10mm 30mm
DH35-57LH DH35-70LH 10mm 35mm

Supplied with flat on shank.
