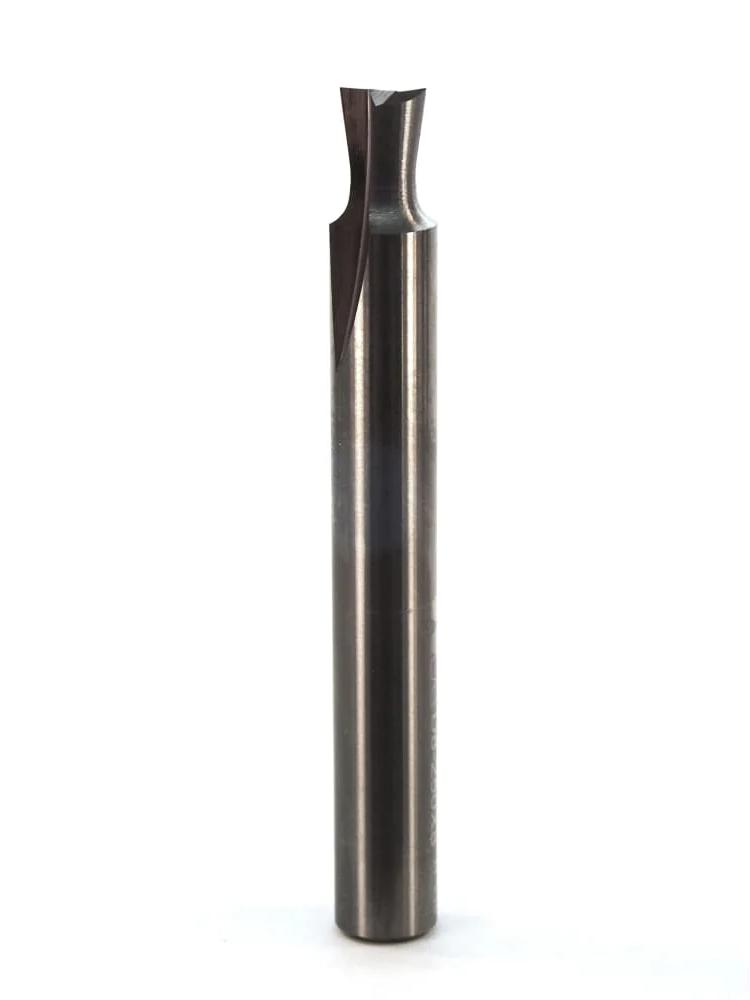

D8-250x8

8° Dovetail Bit

8mm SH, 1/4"LD, 1/4"DOC

Product Information

A premium quality Dovetail Bit made of solid carbide to meet all of your Dovetailing needs.

Part # Shank Dia. Large Dia. Cut Depth Overall Length Cross Reference
7° ANGLE
 D7-530 1/4" 17/32" 3/4" 2-1/4" -
 D7-531 1/2" 17/32" 3/4" 2-1/2" P.C. #43776PC
 D7-625 1/2" 5/8" 7/8" 2-5/8" Incra®
 D7-750 1/2" 3/4" 7/8" 2-5/8" Incra®
 D7-875 1/2" 7/8" 7/8" 2-1/2" Stair Tread
      D7-875LH 1/2" 7/8" 7/8" 2-1/2" Stair Tread- Left Hand
7-1/2° ANGLE
sc D75-25    1/4" 1/4" 5/16" 2-1/2" Incra®/OmniJig® 43639
8° ANGLE
sc D8-250     1/4" 1/4" 1/4" 2-1/2" Leigh® #50
sc D8-250x8 8mm 1/4" 1/4" 2-1/2" Leigh® #50-8mm shank
 D8-312 1/4" 5/16" 3/8" 2-1/4" Leigh® #60
     D8-312x8 8mm 5/16" 3/8" 2-1/4" Leigh® #60-8mm shank
 D8-375 1/4" 3/8" 1/2" 2-3/8" Leigh® #70
     D8-375x8 8mm 3/8" 1/2" 2-3/8" Leigh® #70-8mm shank
 D8-437 1/4" 7/16" 5/8" 2-3/8" Leigh® #75
     D8-437x8 8mm 7/16" 5/8" 2-3/8" Leigh® #75-8mm shank
 D8-500 1/4" 1/2" 13/16" 2-3/4" Leigh® #80
     D8-500x8 8mm 1/2" 13/16" 2-3/4" Leigh® #80-8mm
 D8-687 1/2" 11/16" 1" 3" Leigh® #90
 D8-812 1/2" 13/16" 1-1/4" 3-1/4" Leigh® #100
9° ANGLE
 D9-312 1/4" 5/16" 3/8" 2-1/4" Incra®
 D9-372 1/4" 3/8" 3/8" 2" Incra®
 D9-375 1/2" 3/8" 3/8" 2" -
      D9-375LH 1/2" 3/8" 3/8" 2" Left Hand
 D9-376 1/2" 3/8" 3/8" 2-1/2" Incra®
      D9-376LH 1/2" 3/8" 3/8" 2-1/2" Incra®- Left Hand
10° ANGLE
 D10-50 1/4" 1/2" 5/8" 2-1/2" Incra®/Leigh® #101
     D10-50x8 8mm 1/2" 5/8" 2-1/2" Leigh® #101-8mm shank
 D10-55 1/2" 1/2" 5/8" 2-5/8" Incra®
14° ANGLE
   D14-375 1/4" 3/8" 3/8" 2" -
 D14-50 1/4" 1/2" 1/2" 2" Incra®/OmniJig® 43705
 D14-51 1/4" 1/2" 1/2" 2-3/8" Leigh® #120
     D14-51x8 8mm 1/2" 1/2" 2-3/8" Leigh® #120-8mm shank
 D14-55 1/2" 1/2" 1/2" 2-1/2" Incra®/OmniJig® 43750
   D14-531 1/4" 17/32" 1/2" 2" Incra®
 D14-75 1/2" 3/4" 3/4" 3" OmniJig® 43774
   D14-100 1/2" 1" 7/8" 2-1/2" -
18° ANGLE
 D18-50 1/4" 1/2" 3/8" 2-1/4" Leigh® #128
     D18-50x8 8mm 1/2" 3/8" 2-1/4" Leigh® #128-8mm shank

SC - Solid Carbide
All bits designated Incra® are also compatible with the JoinTech­™ system.

Incra® Dovetail Sets: D101 and 605
Leigh® Dovetail Sets: D108 and D116
