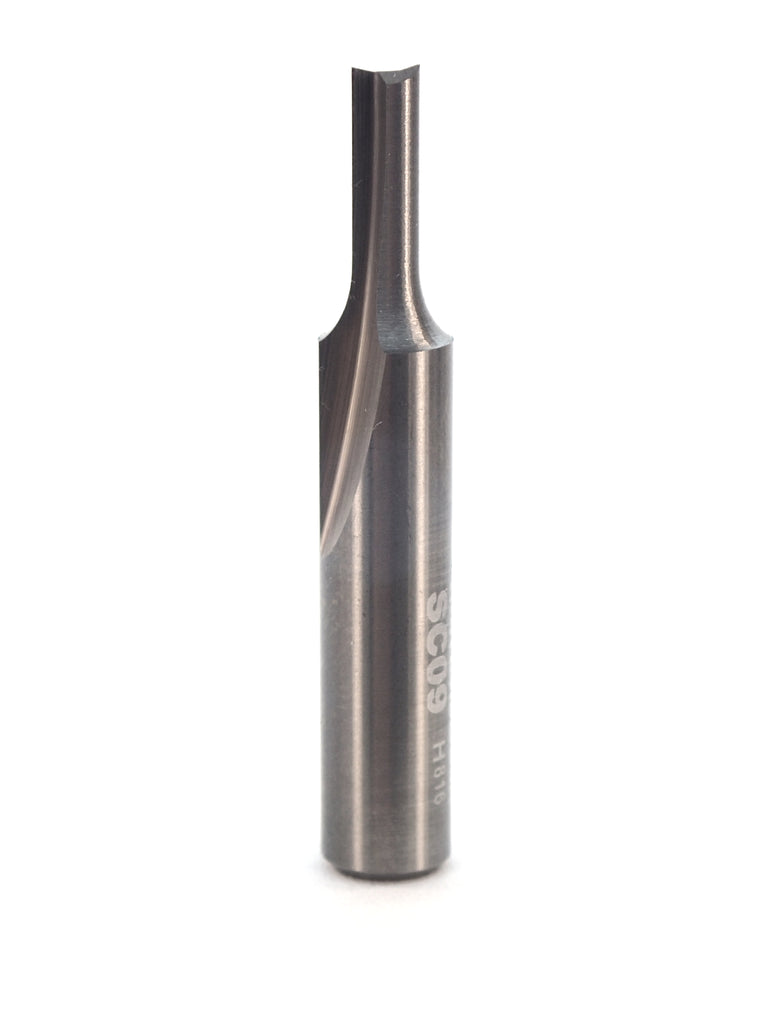

SC09
Carbide Straight
1/4"SH, 1/8"CD, 3/8"CL
UPC: 844278000092. Whiteside SC09 Solid Carbide Straight Router Bit: 1/8 Inch Cutting Diameter, 1/4 Inch Shank, 3/8 Inch Cutting Length.
Product Description
Materials: Natural woods, composite woods, hard plastics
Recommended RPM: 18,000-20,000 (max 24,000)
Basic double flute Straight bit made out of solid carbide for extended life.
- TOOL SPECS: Solid carbide, straight bit with 1/8" cutting diameter, 1/4" shank, 3/8" cutting length, and 1-1/2" overall length for use in routers with a 1/4" collet.
- DOUBLE FLUTE: Perfect for precision cuts and tight tolerances, thanks to the inherent rigidity and sharpness of solid carbide for superior performance.
- SOLID CARBIDE: For extended use projects, solid carbide's hardness and sharpness retention are essential for lasting performance and durability.
- PLUNGE DESIGN: The tip of this bit is designed with the capability to plunge into materials when required.
- MACHINES: Designed for hand-held routers, router tables, and CNC machines in a wide variety of applications.
Similar Sizes
| Part # | Cutting Dia. | Cutting Length | Overall Length |
|---|---|---|---|
| 1/4" SHANK | |||
| SC33 | 1/8" | 1/4" | 2" |
| SC09 | 1/8" | 3/8" | 1-1/2" |
| SC09A | 1/8" | 3/8" | 2" |
| SC156 | 5/32" | 3/8" | 1-1/2" |
| SC10 | 5/32" | 5/8" | 1-1/2" |
| SC10A | 5/32" | 5/8" | 2" |
| SC34 | 3/16" | 3/8" | 2" |
| SC11 | 3/16" | 1/2" | 1-1/2" |
| SC11A | 3/16" | 1/2" | 2" |
| SC12 | 3/16" | 5/8" | 2" |
| SC13 | 7/32" / 5.5mm | 3/4" | 2" |
| SC35 | 1/4" | 1/2" | 2" |
| SC14 | 1/4" | 3/4" | 2" |
| SC15 | 1/4" | 1" | 2-1/2" |
| SC16 | 1/4" | 1" | 3" |
| 5/16" SHANK | |||
| SC18 | 5/16" | 1" | 2-1/2" |
| 3/8" SHANK | |||
| SC19 | 3/8" | 1" | 2-1/2" |
| SC19A | 3/8" | 1-1/4" | 3" |
| 1/2" SHANK | |||
| SC218 | 7/32" / 5.5mm | 3/4" | 2-3/4" |
| SC235 | 15/64" / 6mm | 3/4" | 2-3/4" |
| SC20 | 1/4" | 3/4" | 2-3/4" |
| SC21 | 1/4" | 1" | 3" |
| SC22 | 5/16" | 1" | 3" |
| SC23 | 3/8" | 1" | 3" |
| SC24 | 3/8" | 1-1/4" | 3" |
| SC25 | 1/2" | 1" | 3" |
| SC26 | 1/2" | 1-1/4" | 3" |
| SC27 | 1/2" | 1-1/2" | 3-1/2" |
