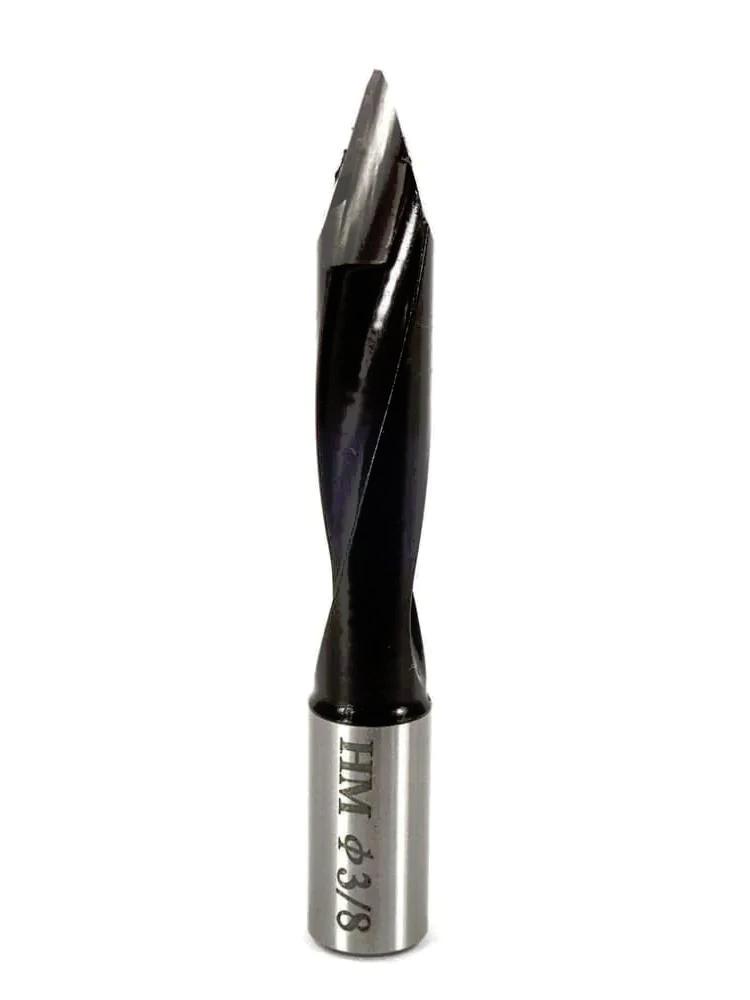

DT375-70

Right Hand V-Point Dowel Drill

3/8"CD, 70mmOAL

Product Description

Thru Hole V-Point Dowel Drills are used for boring a hole through your wood so that dowels can be used in your project.

Thru Hole V-Point (Left Hand)

Cutting Dia. Shank Dia. Part # 57mm OAL Part # 70mm OAL
INCH SIZES
   3/16" 10mm   DT187-70LH
   7/32" 10mm   DT218-70LH
  1/4" 10mm DT250-57LH DT250-70LH
  3/8" 10mm   DT375-70LH
   7/16" 10mm   DT437-70LH
  1/2" 10mm   DT500-70LH
METRIC SIZES
* 3mm 10mm DT3-57LHSC DT3-70LHSC
   4mm 10mm DT4-57LH DT4-70LH
   5mm 10mm DT5-57LH DT5-70LH
   6mm 10mm DT6-57LH DT6-70LH
   7mm 10mm DT7-57LH DT7-70LH
   8mm 10mm DT8-57LH DT8-70LH
   9mm 10mm DT9-57LH DT9-70LH
    10mm 10mm DT10-57LH DT10-70LH
    11mm 10mm DT11-57LH DT11-70LH
    12mm 10mm DT12-57LH DT12-70LH
    13mm 10mm DT13-57LH DT13-70LH

Supplied with flat on shank.
3 mm available in Solid Carbide only.

Thru Hole V-Point (Right Hand)

Cutting Dia. Shank Dia. Part # 57mm OAL Part # 70mm OAL
INCH SIZES
   3/16" 10mm   DT187-70
   7/32" 10mm   DT218-70
  1/4" 10mm DT250-57 DT250-70
  3/8" 10mm   DT375-70
   7/16" 10mm   DT437-70
  1/2" 10mm   DT500-70
METRIC SIZES
* 3mm 10mm DT3-57SC DT3-70SC
   4mm 10mm DT4-57 DT4-70
   5mm 10mm DT5-57 DT5-70
   6mm 10mm DT6-57 DT6-70
   7mm 10mm DT7-57 DT7-70
   8mm 10mm DT8-57 DT8-70
   9mm 10mm DT9-57 DT9-70
    10mm 10mm DT10-57 DT10-70
    11mm 10mm DT11-57 DT11-70
    12mm 10mm DT12-57 DT12-70
    13mm 10mm DT13-57 DT13-70

Supplied with flat on shank.
3 mm available in Solid Carbide only.

Thru Hole V-Point (Solid Carbide)

Cutting Dia. Shank Dia. Rotation Part # 57mm OAL Part # 70mm OAL
METRIC SIZES
* 3mm 10mm Right DT3-57SC DT3-70SC
* 3mm 10mm Left DT3-57LHSC DT3-70LHSC
   4mm 10mm Right DT4-57SC DT4-70SC
   4mm 10mm Left DT4-57LHSC DT4-70LHSC
   5mm 10mm Right DT5-57SC DT5-70SC
   5mm 10mm Left DT5-57LHSC DT5-70LHSC
   6mm 10mm Right DT6-57SC DT6-70SC
   6mm 10mm Left DT6-57LHSC DT6-70LHSC
   8mm 10mm Right DT8-57SC DT8-70SC
   8mm 10mm Left DT8-57LHSC DT8-70LHSC

Supplied with flat on shank.
3 mm available in Solid Carbide only.
