6050

Window Sash Set

1/2"SH, 7/8" - 1-5/8"CL, 1-3/8"CD

Product Description



Materials: Natural woods, composite woods

Recommended RPM: 14,000-16,000 (max 18,000)

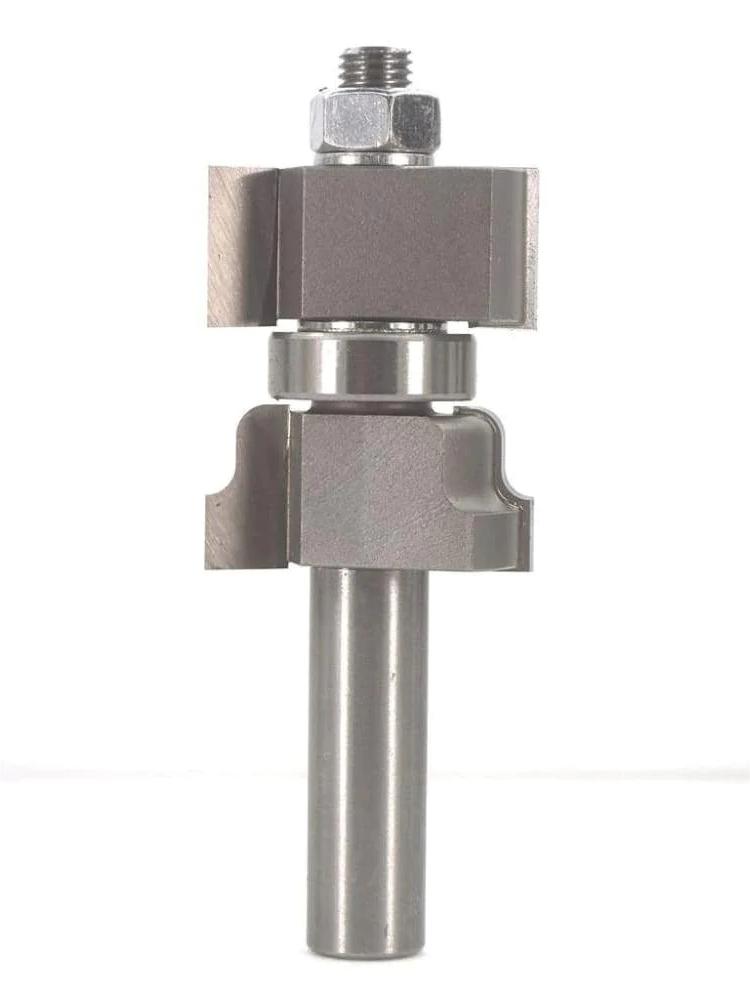

This is the only bit you need to make a complete window sash. The bearing guide controls the pattern depth and also allows you to make arched or curved windows and glass doors. This assembly with the straight end cutter cuts the inside edges on both the stiles and rails.

Convert the assembly to make the mating end cut by exchanging the straight cutter for the spacer. The spacer can be installed between the profile cutter and the shank if additional reach across the workpiece is needed. Now make the mating end cuts on the rails. This bit can also be used to cut both the decorative edges and the mating end cuts required to make your own window mullions (crosspieces).

  • TOOL SPECS: Carbide-tipped window sash bit with 1-3/8" cutting diameter, 7/8" - 1-5/8" cutting length, 1/2" shank, and 3-5/8" overall length for use with 1/2" collets.
  • WINDOW SASH: This is the only bit needed to make a complete window sash. Standard assemble allows for stile and rail cuts while the converted assembly makes the mating end cut.
  • CONVERTING THE BIT: Easily convert for end cuts by swapping the straight cutter for the included spacer. The spacer can be installed between the profile cutter and shank for additional reach.
  • WINDOW PANES: Shallow profile and rabbeted back design, perfect for inserting or replacing window panes with ease.
  • BEARING GUIDE: The bearing guide controls the pattern depth and also allows you to make arched or curved windows and glass doors.
  • WINDOW MULLIONS: This bit can also be used to cut both the decorative edges and the mating cuts required to make your own window mullions (crosspieces).
Part # Cutting Dia. Cutting Length Overall Length
1/2" SHANK
6050 1-3/8" 7/8" - 1-5/8" 3-5/8"

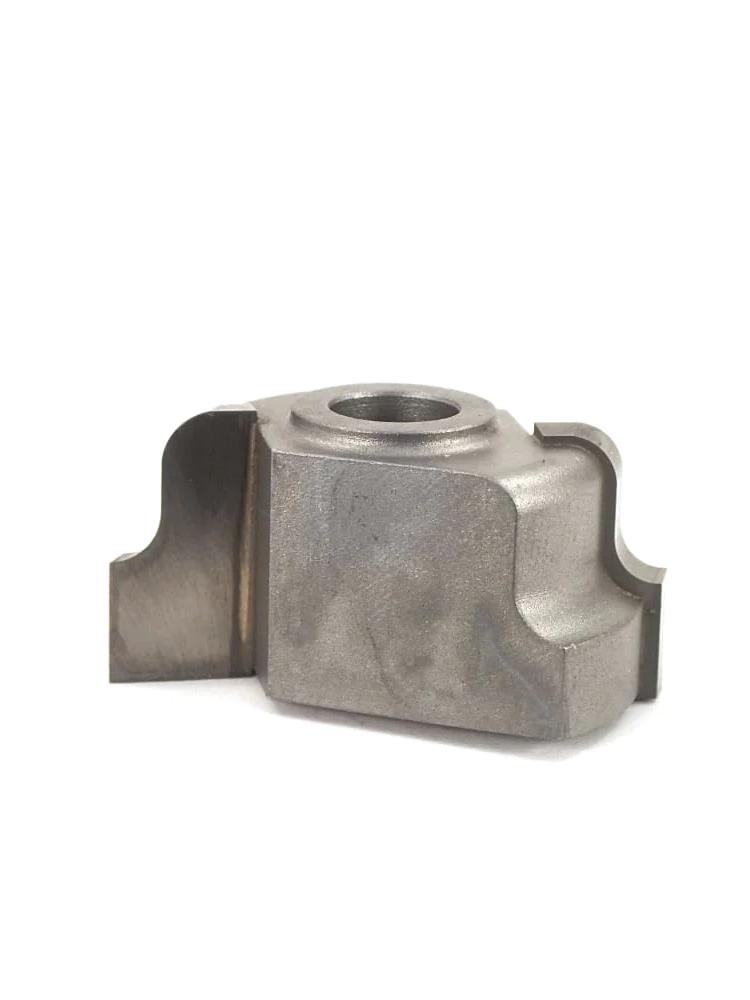

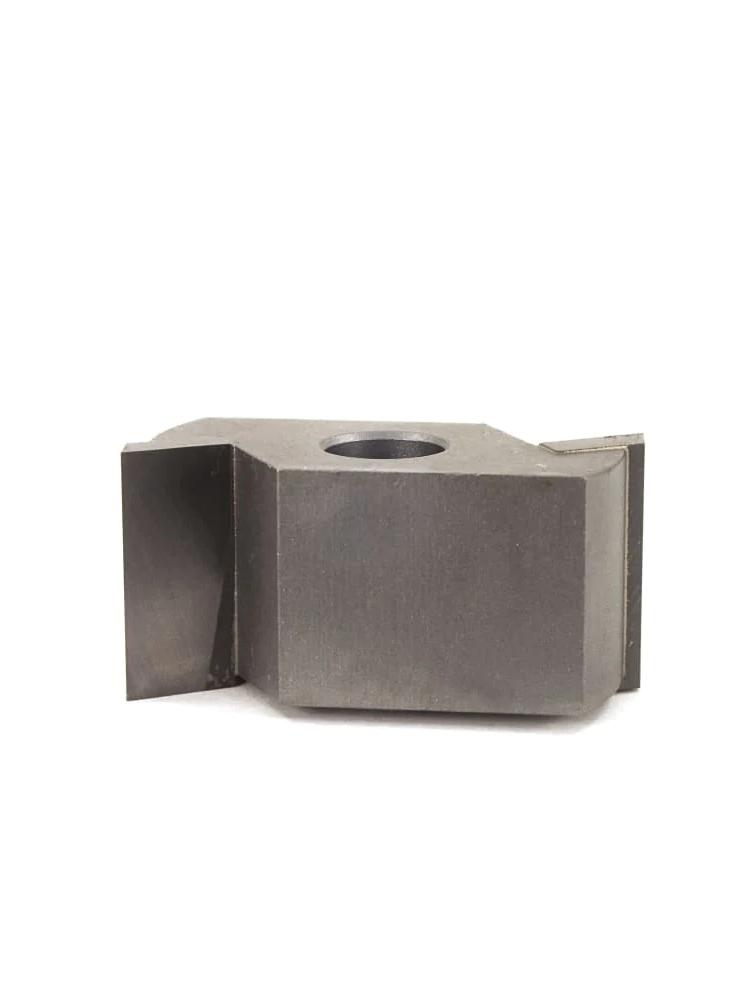

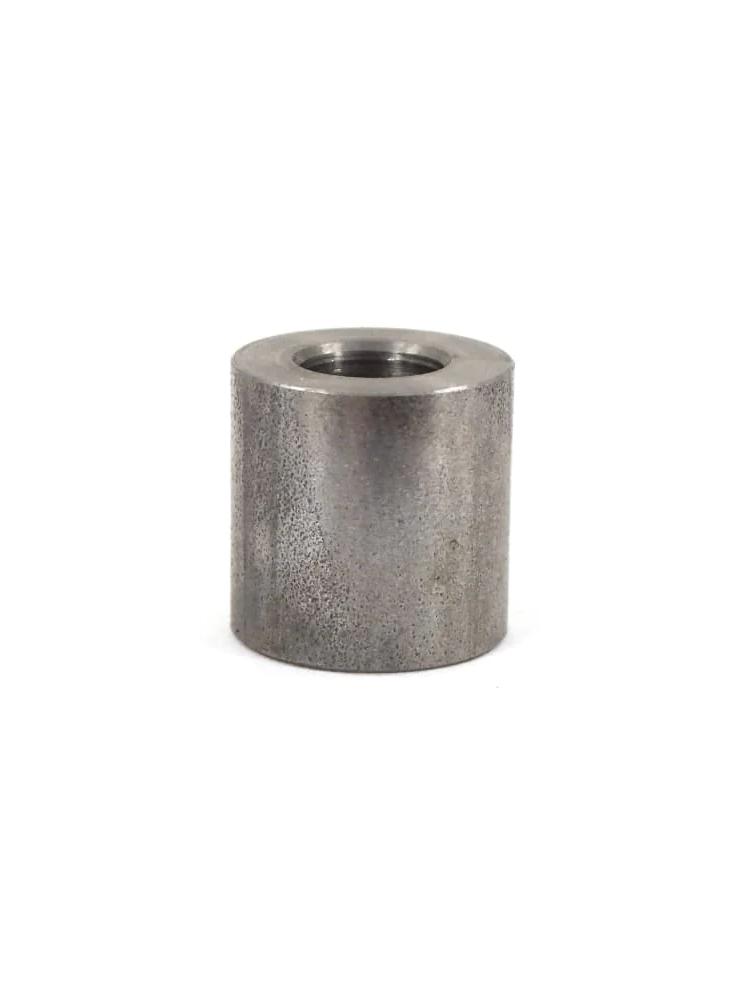

Replacment Parts: Profile Cutter: 6050H; Straight Cutter: 6050G; Spacer: 6050SP,

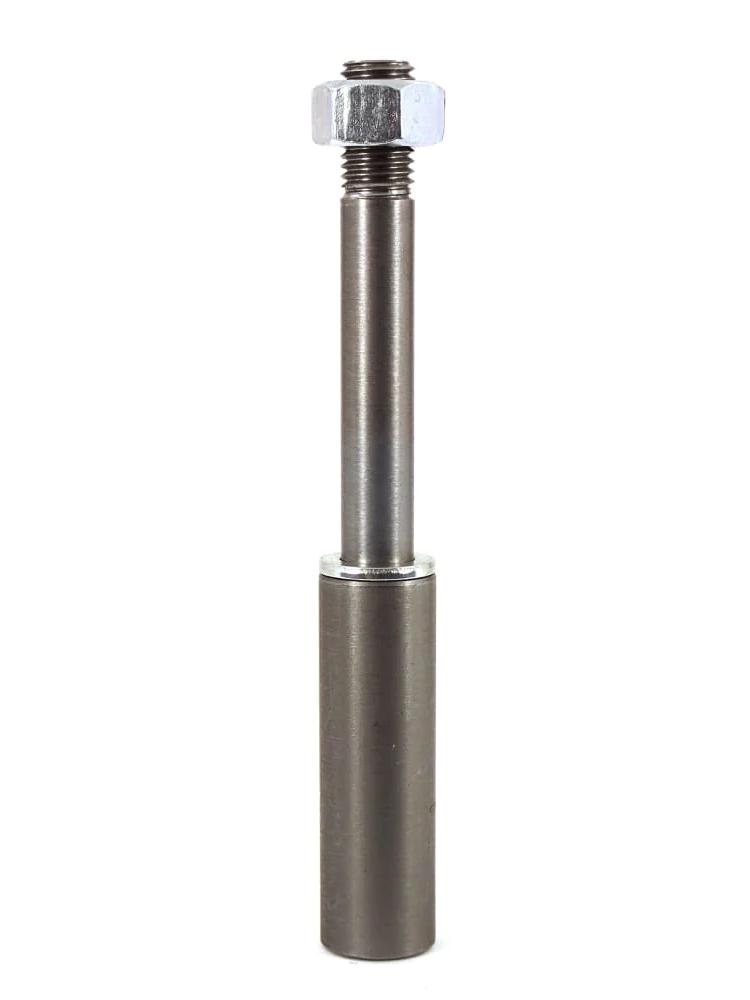

Arbor: A380; Bearing Number: B5
