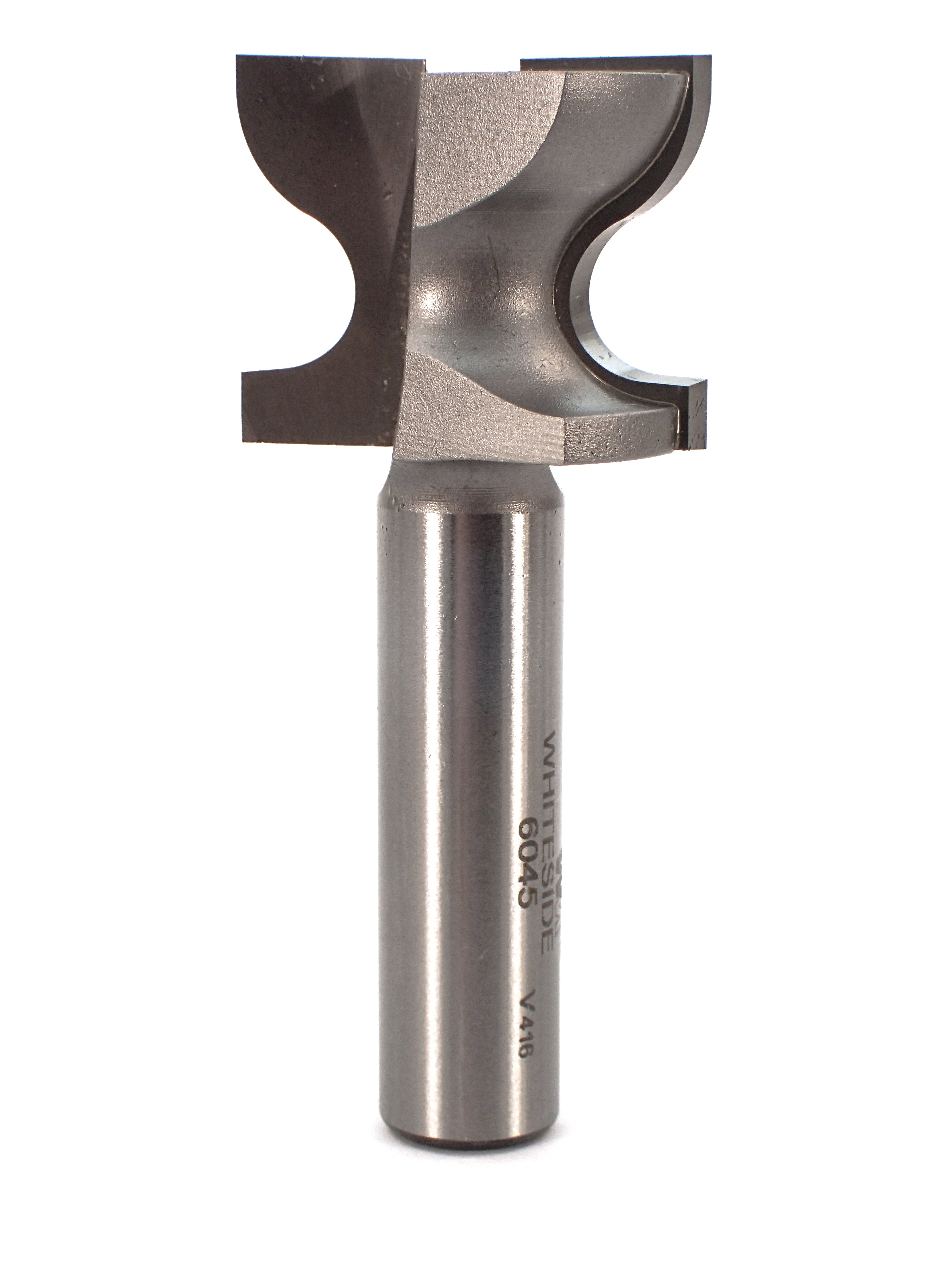

6045
Window Sill Edge/Finger Pull
1/2"SH, 7/32"R, 13/16"CL
Product Description
Originally designed to cut the front edge of window sills, this bit has also become popular for making a rounded finger edge on both drawers and door edges. Use with a router fence or add a shank mounted bearing for following a straight edge or template.
Materials: Natural woods, composite woods
Recommended RPM: 14,000-16,000 (max 18,000)
Similar Sizes
Drawer Edge Finger Pull
| Part # | Radius | Large Dia. | Cutting Length | Overall Length |
|---|---|---|---|---|
| 1/2" SHANK | ||||
| 6045 | 7/32" | 1-1/4" | 13/16" | 2-7/8" |
| 6046 | 3/8" | 1-7/16" | 1-1/8" | 3-3/8" |
Use Bearing (B16 for #6045, B18 for #6046) and Lock Collar (LC-1/2) on shank for template work.
Drawer Pull - European Style
| Part # | Large Radius | Large Dia. | Cutting Length | Overall Length |
|---|---|---|---|---|
| 1/2" SHANK | ||||
| 6024 | 3/16" | 3/4" | 7/8" | 2-3/8" |
| 6026 | 1/4" | 1-1/2" | 13/16" | 2-3/8" |
Drawer Edge Finger Pull
| Part # | Shank Dia. | Large Dia. | Cutting Length | Overall Length |
|---|---|---|---|---|
| 6032 | 1/2" | 1-1/4" | 3/4" | 2-1/2" |
Bearing Number: B3
Related Items

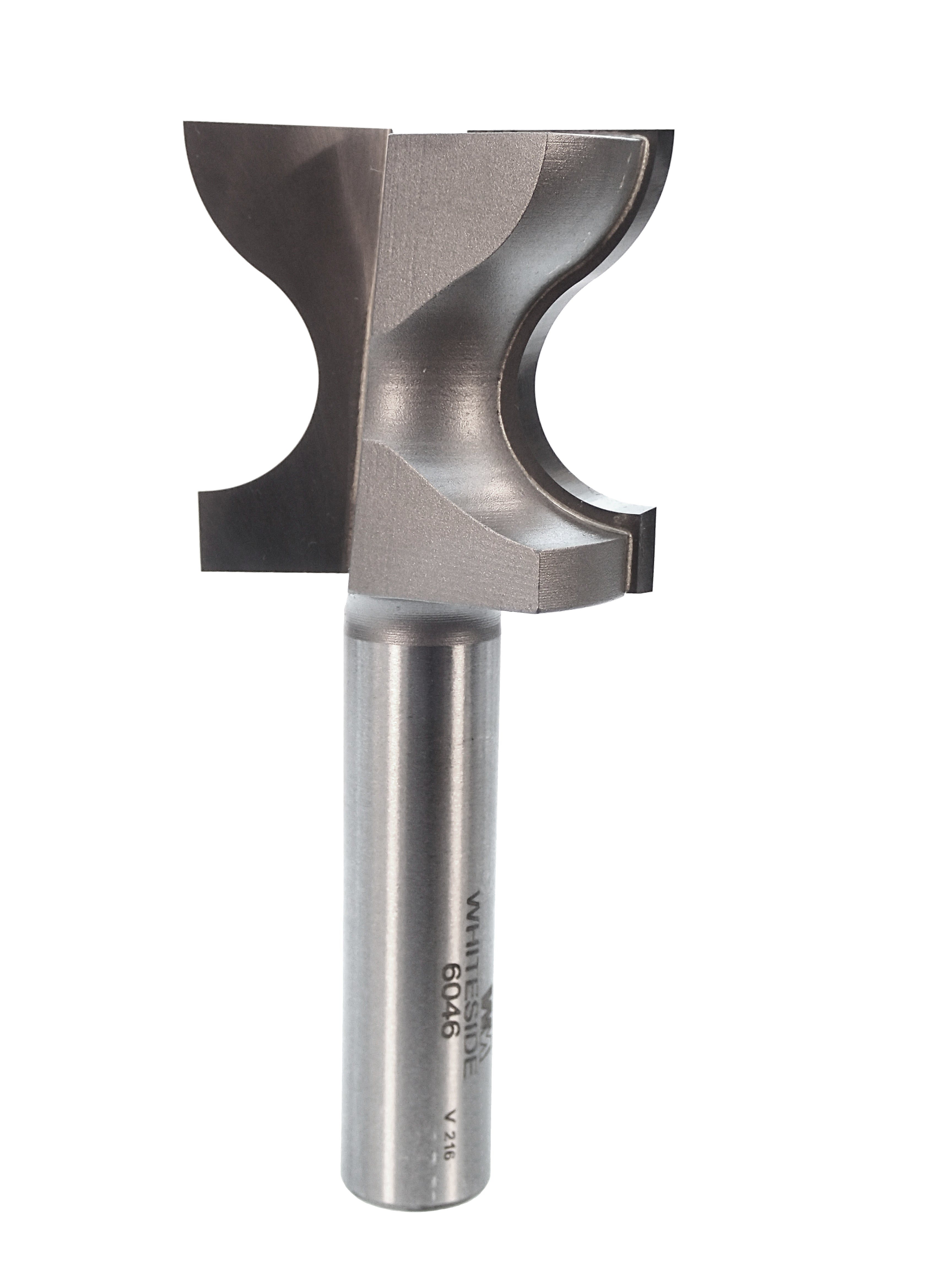

Window Sill Edge/Finger Pull
1/2"SH, 3/8"R, 1-1/8"CL
Originally designed to cut the front edge of window sills, this bit has also become popular for making a rounded finger edge on... View full product details
