5850

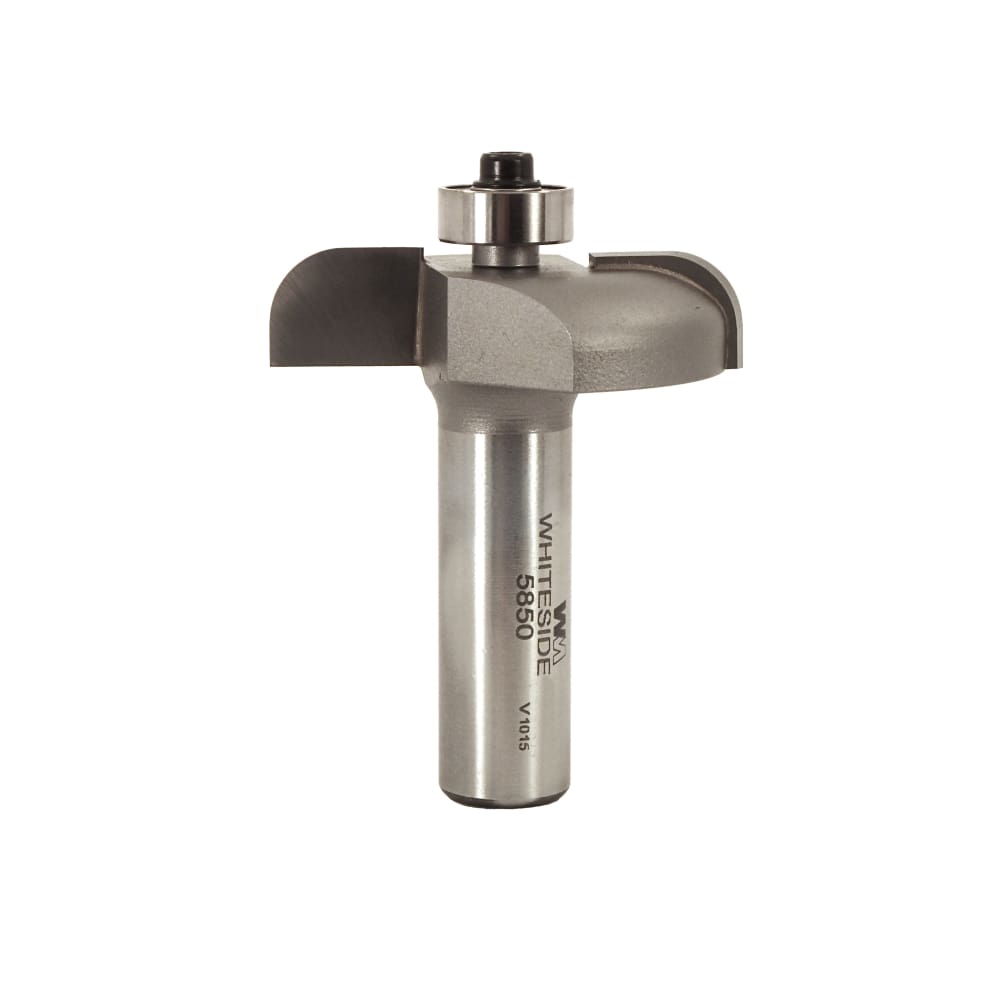

Raised Panel Back Cutter Bit
1/2"SH, 1-3/4"LD
Product Description

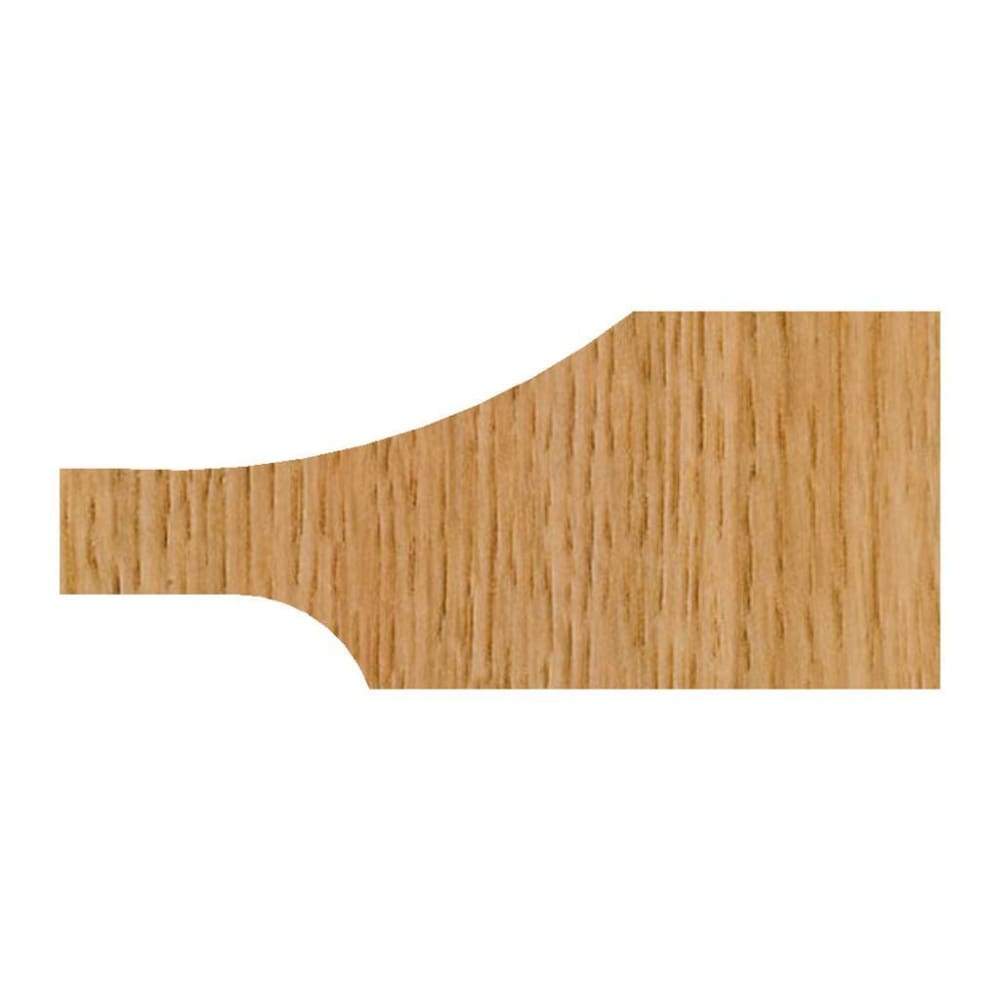

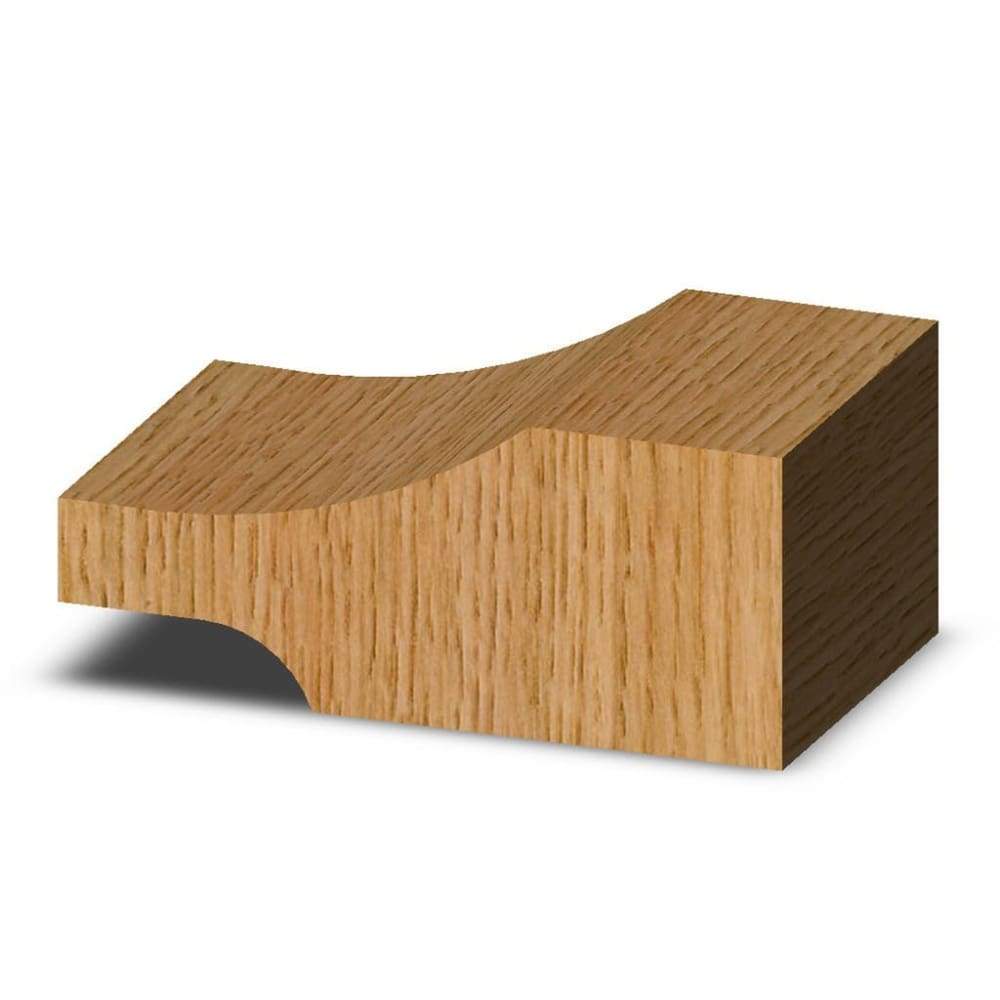

This bit offers a safe and economical way to make that optional backside cut on raised panels. It is suitable for use with any of our Stile and Rail bits. The bit can also be used as a shallow raised panel bit for smaller projects. Manufactured with a 1-3/4” large diameter and a 1/2” shank.
Materials: Natural woods, composite woods
Recommended RPM: 12,000-14,000 (max 16,000)
