3520

Canoe Making

Flute Style

Product Description



Materials: Natural woods, composite woods, hard plastics

Recommended RPM: 14,000-16,000 (max 18,000)



Sold individually as a 1/8" Radius Fluting Bit (#3520) or Beading Bit (#3530). When used together to edge 1/4" thick stock, the resulting joint allows each strip to be angled. This allows assembly in a curved configuration for numerous projects such as canoe hulls.



**Wood block shows the joint made using both the #3520 and #3530.**

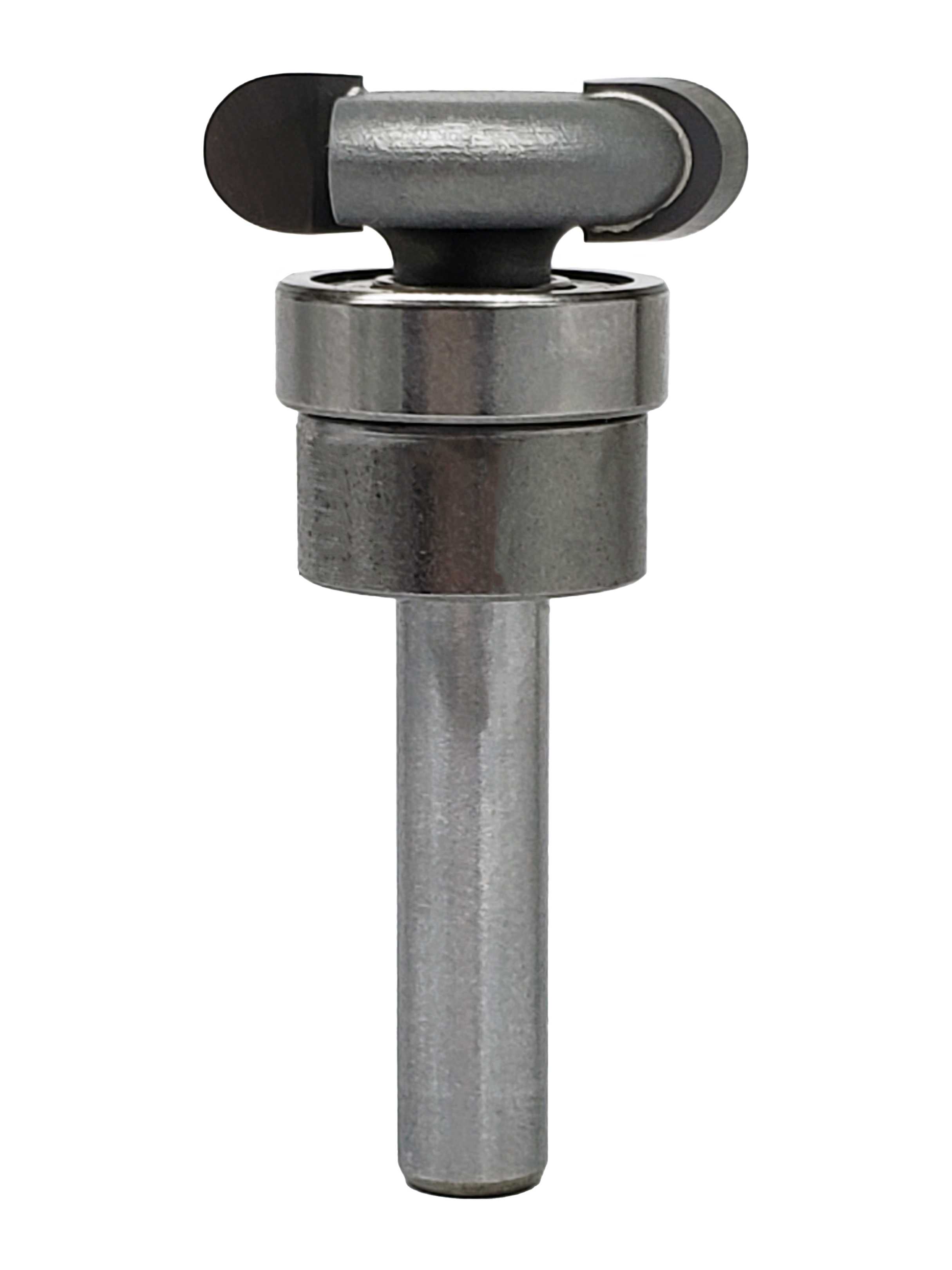

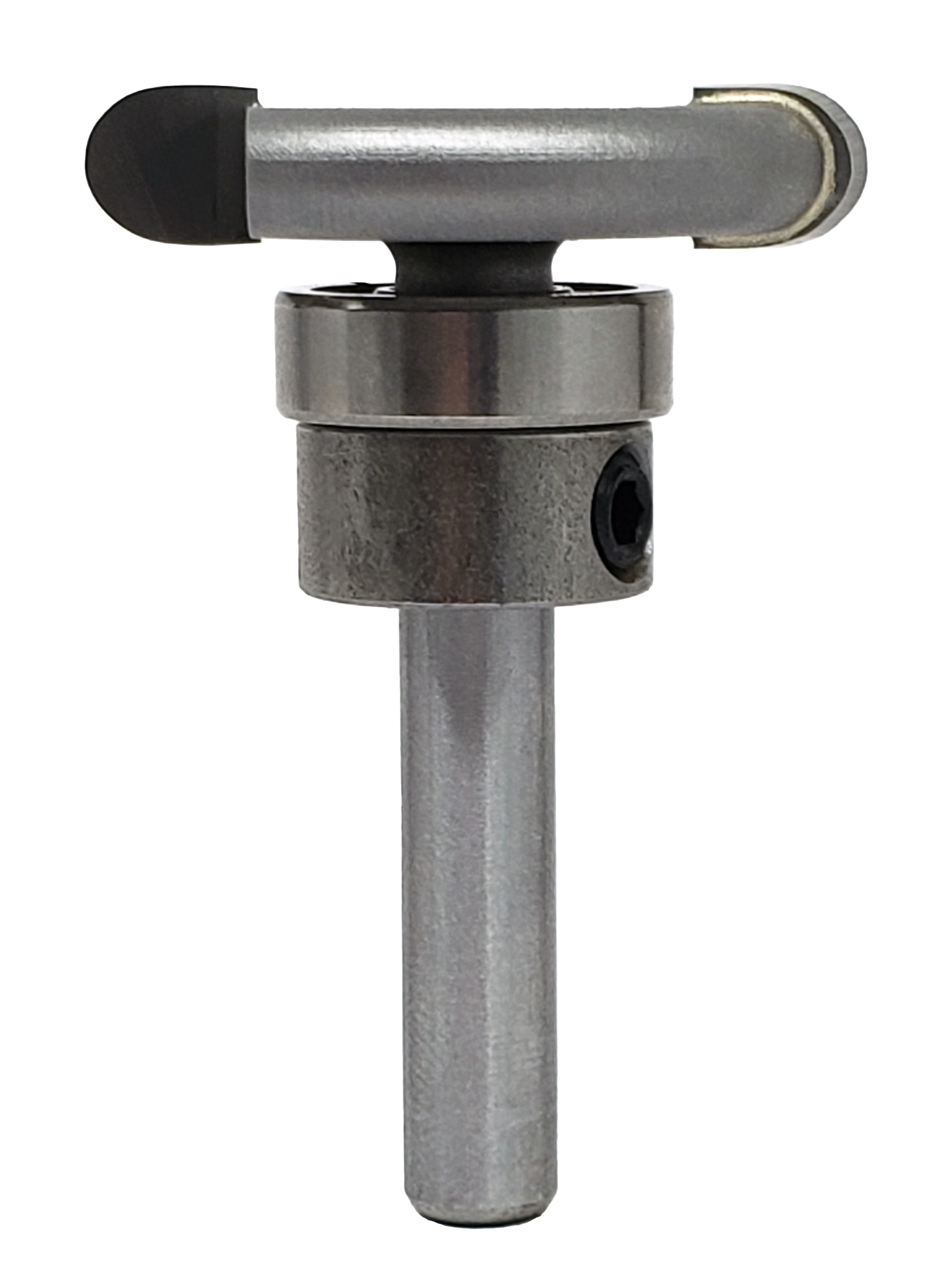

  • TOOL SPECS: Carbide-tipped radius flute cutter/canoe making bit with 1/8" radius, 1-1/8" large diameter, 1/4" cutting length, 1/8" depth of cut, 1/2" shank, and 2-1/4" overall length for use with 1/2" collets.
  • APPLICATIONS: Perfect for creating curved shapes with thin wood strips, ideal for projects like canoe hulls, hot tub enclosures, curved planters, and other bent wood designs.
  • CURVED JOINTS: Sold separately as flute (Item #3530) and bead (Item #3530) bits, designed to create seamless curved joints by precisely matching the two profiles for a perfect fit.
  • STOCK SIZE: The joint has a 1/8" radius, making it ideal for 1/4" thick stock.
  • TRIPLE FLUTE: This bit features three carbide cutting edges for an extra clean cut. The steel shank provides a stronger, rigid tool with reduced vibration.
  • MATERIALS: Perfect for use on natural woods, composite woods, and hard plastics, providing clean and precise cuts across a variety of surfaces.



Canoe Making Bits

Part # Style Shank Dia. Cutting Dia. Radius Overall Length
3520 Flute 1/2" 1-1/8" 1/8" 2-1/4"
3530 Bead 1/2" 1-1/8" 1/8" 2-3/8"
