2325
Edge Bevel

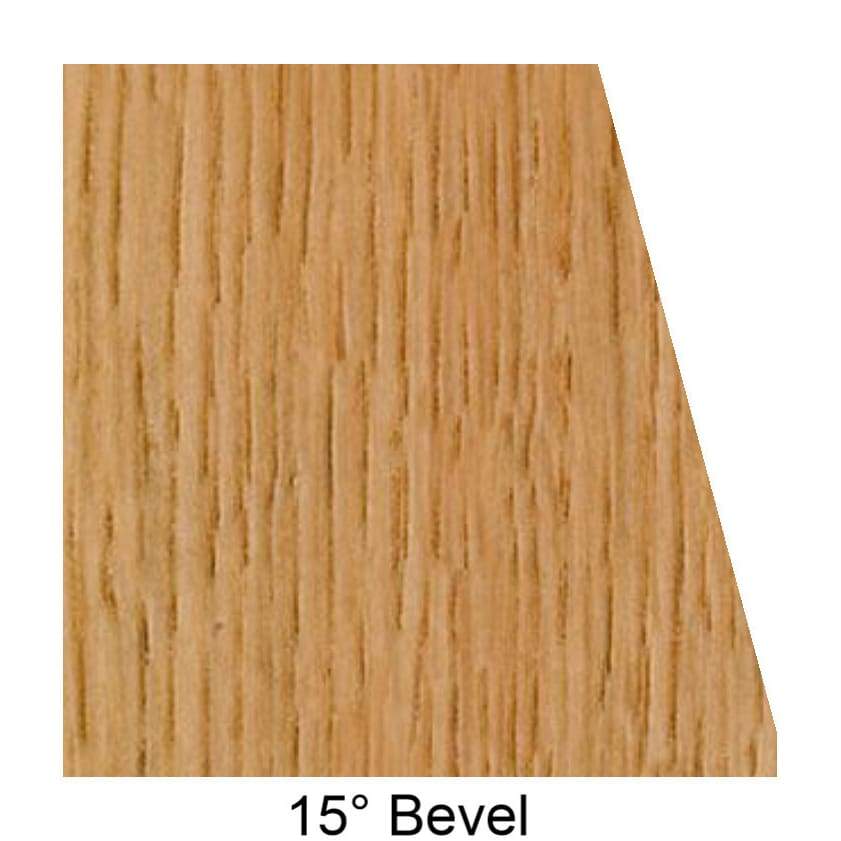

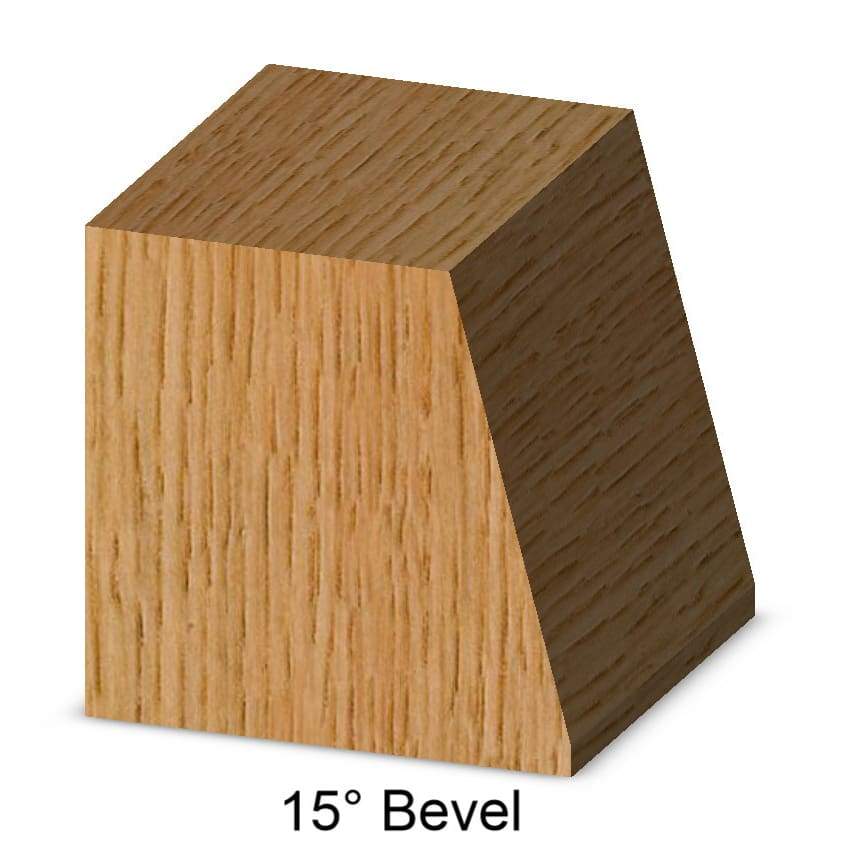

1/2"SH, 15°, 1"CL
Product Description
Similar to Chamfer bits, Edge Bevel bits provide a very small angle when used on your workpiece. This bit can also be used to make twelve sided boxes by using it to trim both ends of the side boards.
Materials: Natural woods, composite woods, hard plastics
Recommended RPM: 14,000-16,000 (max 18,000)
Similar Sizes
| Part # | Degree of Angle | Cutting Length | Cutting Height | Large Dia. |
|---|---|---|---|---|
| 1/4" SHANK | ||||
| * 2298 | 7° | 3/8" | 3/8" | 5/8" |
| 2300 | 15° | 1/2" | 1/2" | 7/8" |
| * 2300A | 15° | 1/4" | 1/4" | 3/4" |
| 2301 | 25° | 9/16" | 1/2" | 1" |
| 1 2308 | 30° | 7/8" | 3/4" | 1-3/8" |
| 1/2" SHANK | ||||
| 3 2325 | 15° | 1" | 15/16" | 1-1/8" |
| 2 2307 | 22.5° | 15/16" | 7/8" | 1-1/4" |
| 1 2309 | 30° | 7/8" | 3/4" | 1-3/8" |
| 2318 | 60° | 1-1/8" | 9/16" | 2-1/2" |
Bearing Number: B3
* Used on Laminate Trim
1 Used for six sided boxes
2 Used for eight sided boxes
3 Used for twelve sided boxes
