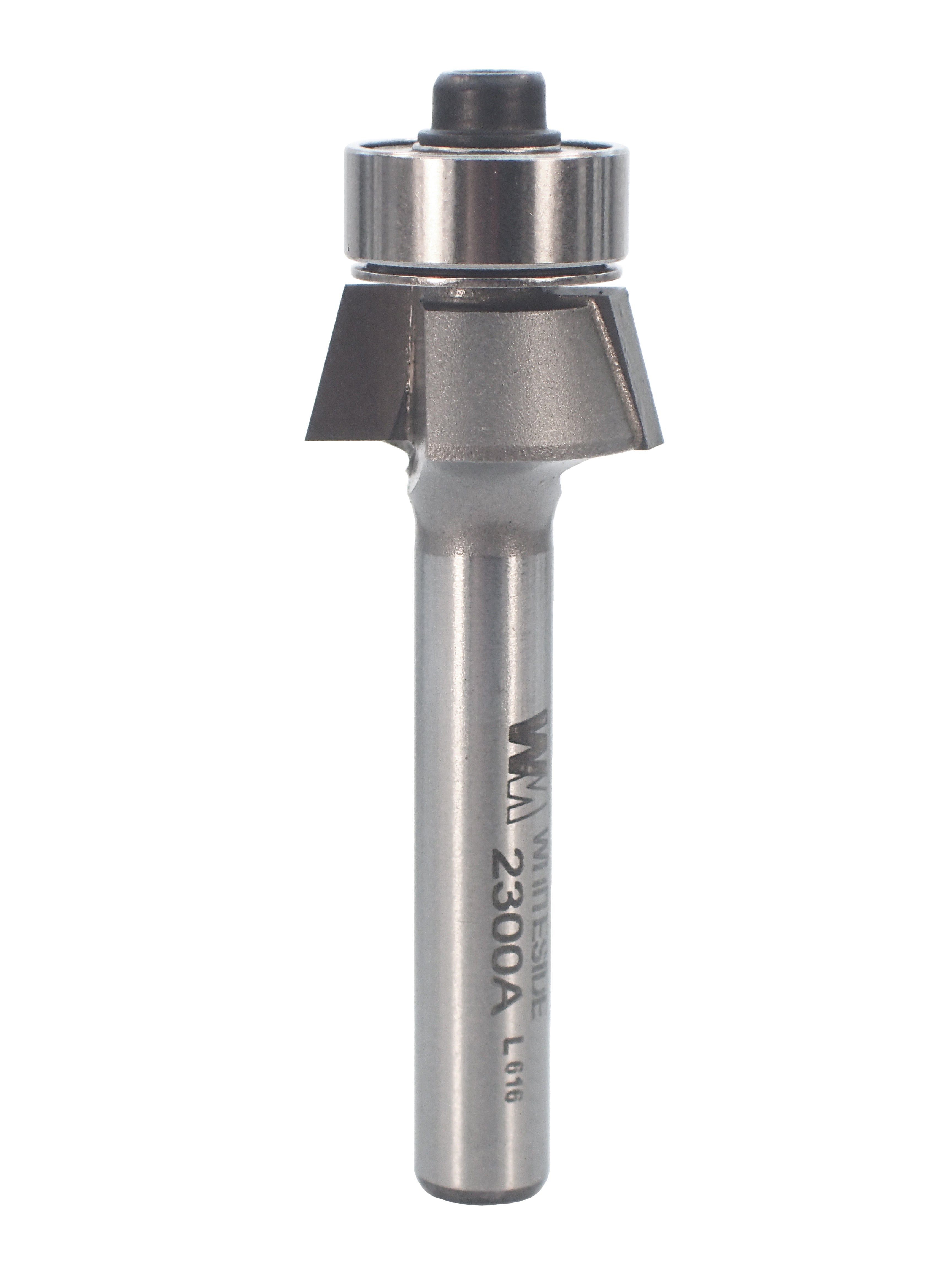

2300A
Edge Bevel
1/4"SH, 15°, 1/4"CL, 5/8"LD
Product Description
Materials: Laminate Trim, Natural woods, composite woods, hard plastics
Recommended RPM: 14,000-16,000 (max 18,000)

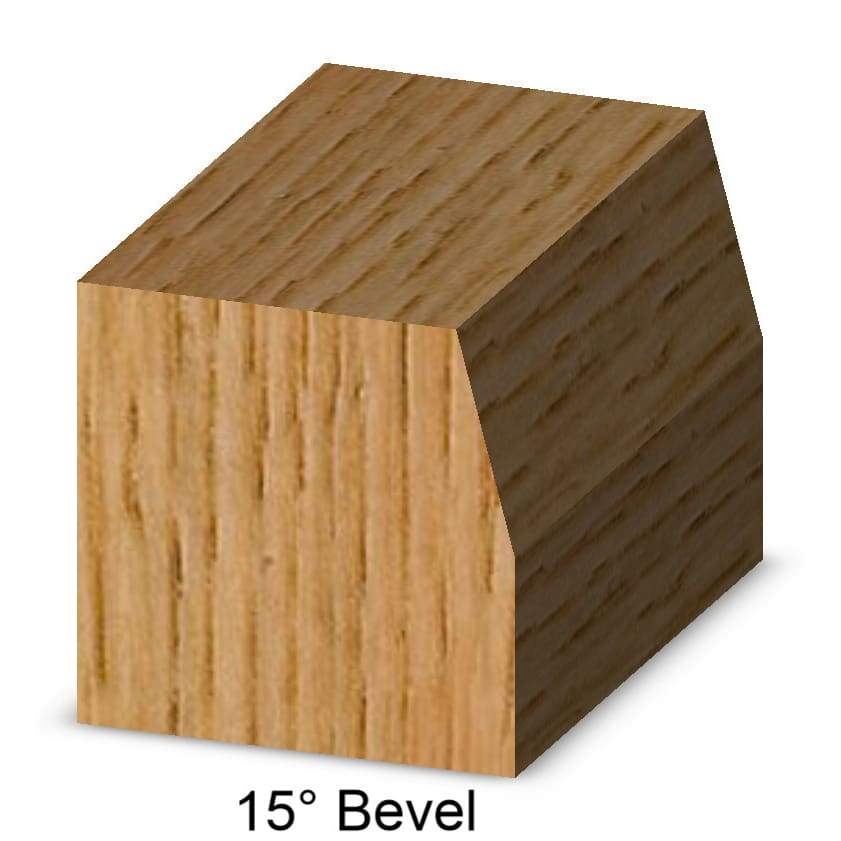

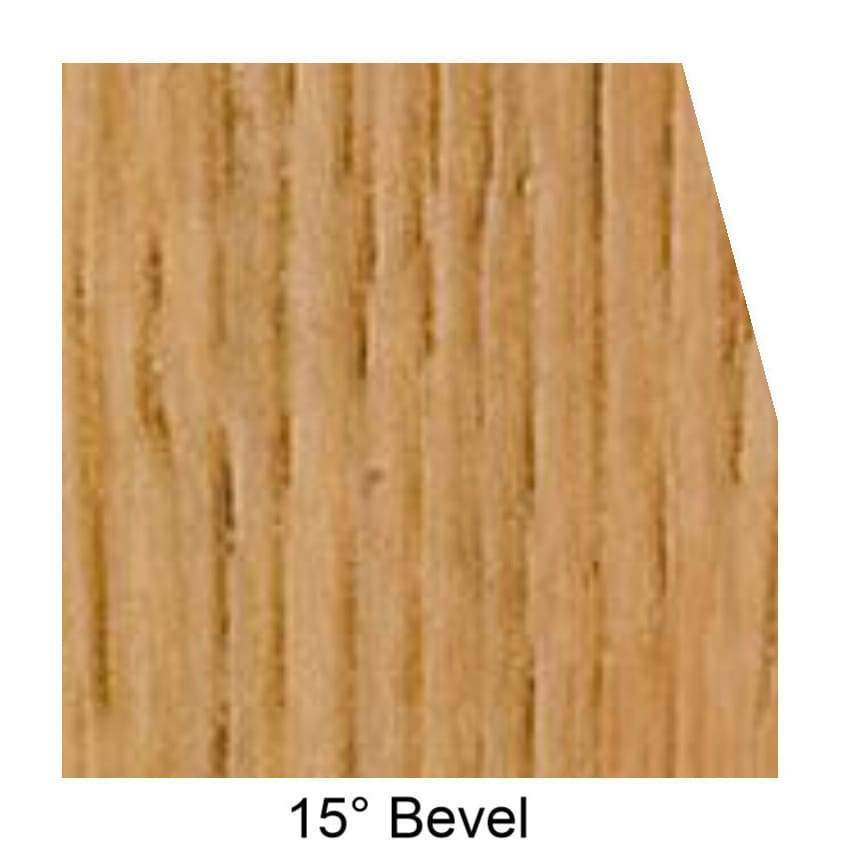

Similar to Chamfer bits, Edge Bevel bits provide a very small angle when used on your workpiece. This bit is very popular for use on Laminate Trim.
- TOOL SPECS: Carbide-tipped edge bevel laminate bit with 15° angle, 1/4" cutting length, 1/4" cutting height, 1/4" shank, and 3/4" large diameter for use with 1/4" collets.
- EDGE BEVEL: Edge bevel bits create a smaller, more delicate bevel compared to chamfer bits, offering precise, smooth edges for a refined finish on woodworking projects.
- APPLICATIONS: Perfect for laminate trimming or creating detailed bevels on boxes, picture frames, and table edges.
- BEARING GUIDE: A bearing guide is located on the end of the bit, ensuring precise cuts and optimal performance for your projects.
- CARBIDE TIPPED: Offers an excellent balance of quality and cost, making it ideal for a wide range of applications.
- STEEL SHANK: The steel body creates a rigid tool with reduced vibration while the carbide cutting edges provide extended life.
Similar Sizes
| Part # | Degree of Angle | Cutting Length | Cutting Height | Large Dia. |
|---|---|---|---|---|
| 1/4" SHANK | ||||

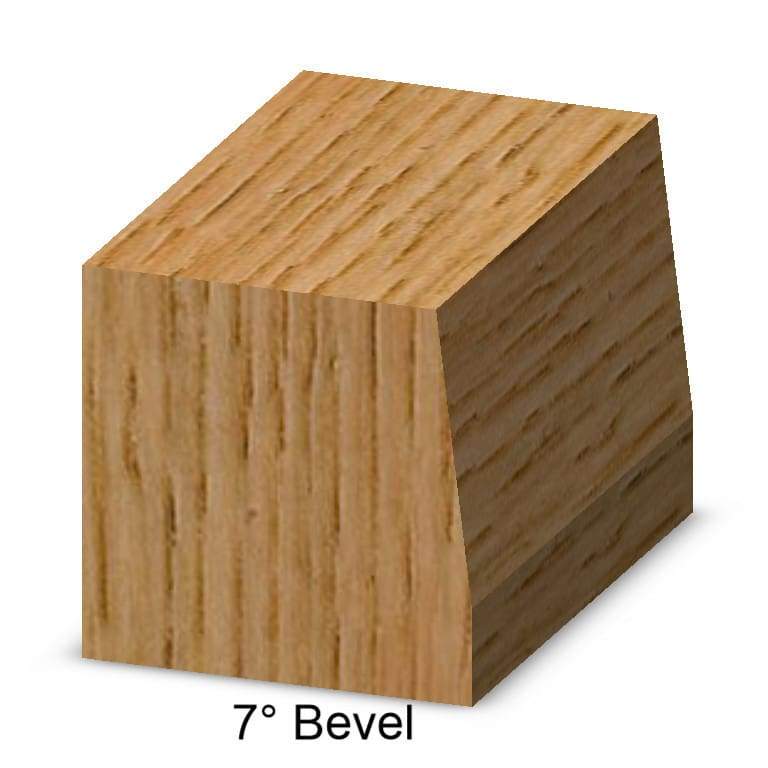

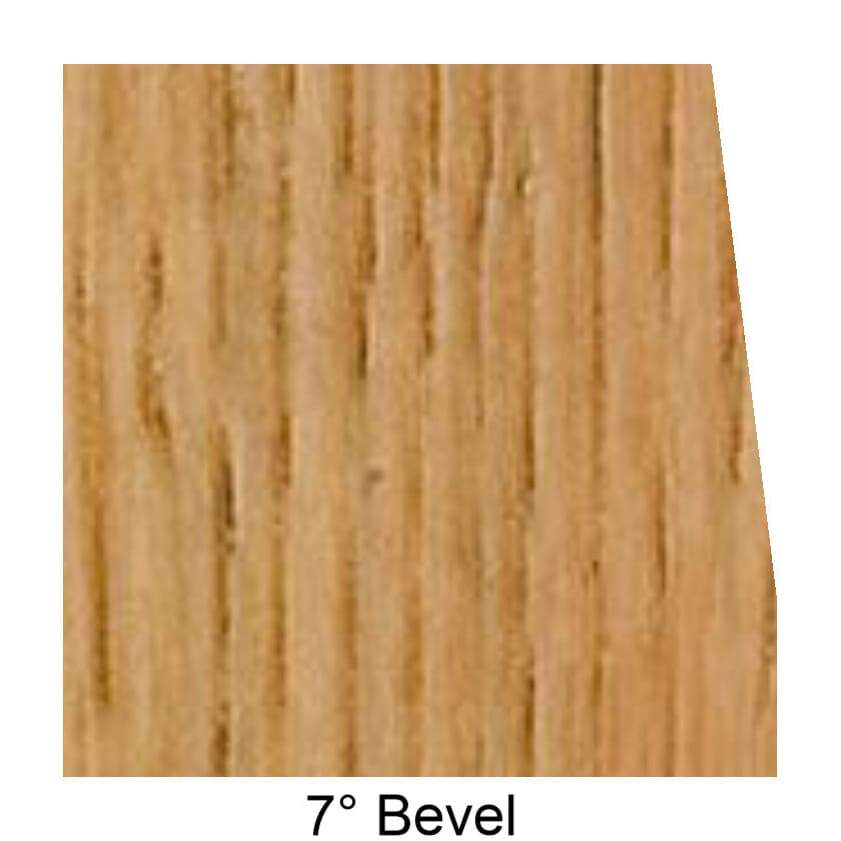

| * 2298 | 7° | 3/8" | 3/8" | 5/8" |
| 2300 | 15° | 1/2" | 1/2" | 7/8" |
| * 2300A | 15° | 1/4" | 1/4" | 3/4" |

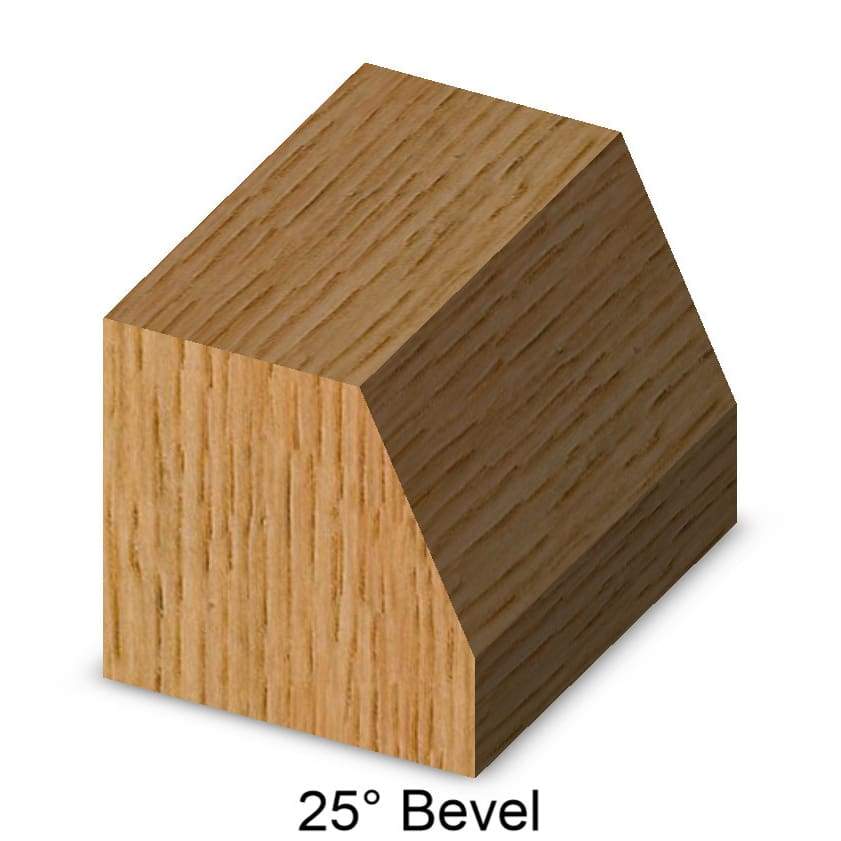

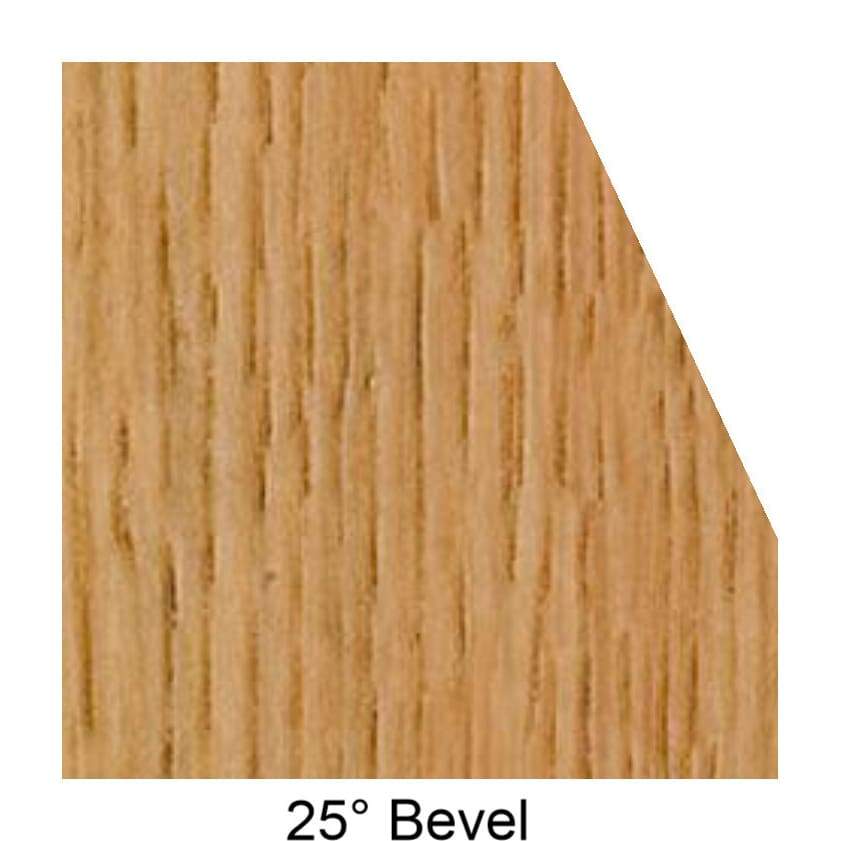

| 2301 | 25° | 9/16" | 1/2" | 1" |
| 1 2308 | 30° | 7/8" | 3/4" | 1-3/8" |
| 1/2" SHANK | ||||
| 3 2325 | 15° | 1" | 15/16" | 1-1/8" |
| 2 2307 | 22.5° | 15/16" | 7/8" | 1-1/4" |
| 1 2309 | 30° | 7/8" | 3/4" | 1-3/8" |
| 2318 | 60° | 1-1/8" | 9/16" | 2-1/2" |
Bearing Number: B3
* Used on Laminate Trim
1 Used for six sided boxes
2 Used for eight sided boxes
3 Used for twelve sided boxes
