2160

Double Roundover Bit

1/2"SH, 1/8"R

Product Description



Roundover bits provide a curved edge to your workpiece and are the most popular type of edge forming bit. Double Roundovers are capable of cutting two roundover designs with one bit. They also feature an adjustable cutting length.

Materials: Natural woods, composite woods, hard plastics

Recommended RPM: 14,000-16,000 (max 18,000)

Part # Radius Large Dia. Overall Length
1/2" SHANK
2160 1/8" 1-1/8" 3-3/4"
2162 3/16" 1-1/4" 3-3/4"
2164 1/4" 1-3/8" 3-3/4"
2174 45° 1-3/8" 3-3/4"

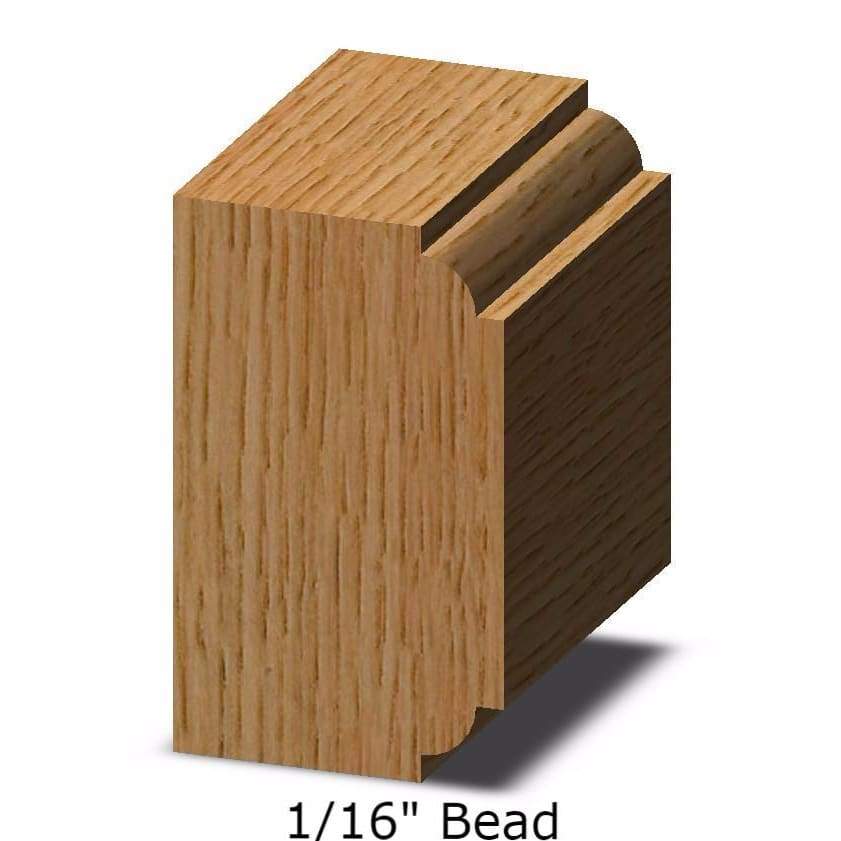

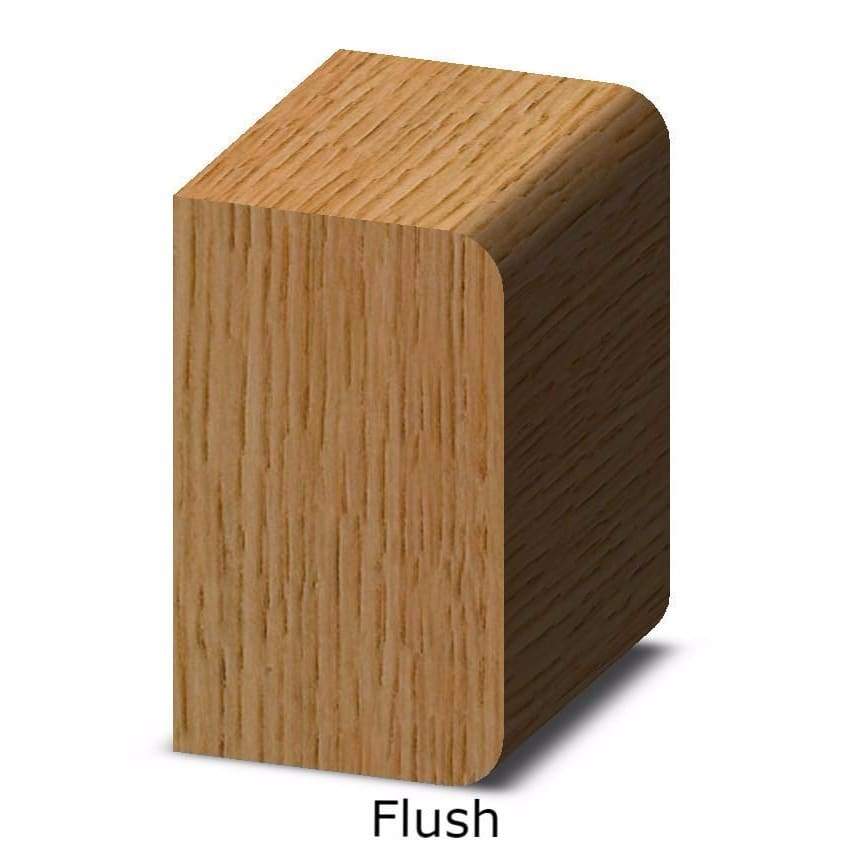

Assemblies sold with B5 Bearing for flush roundover and chamfer bit. Use B20 Bearing for 1/16" Bead. Use B27 Bearing for 1/8" Bead.

Replacement Cutter Heads for Double Roundover: RH part # is next to shank, LH part # for end cutter (2160RH, 2160LH, 2162RH, 2162LH, 2164RH, 2164LH).

Replacement Cutter Heads for Double Chamfer: RH part # is next to shank, LH part # for end cutter (2174RH, 2174LH).
