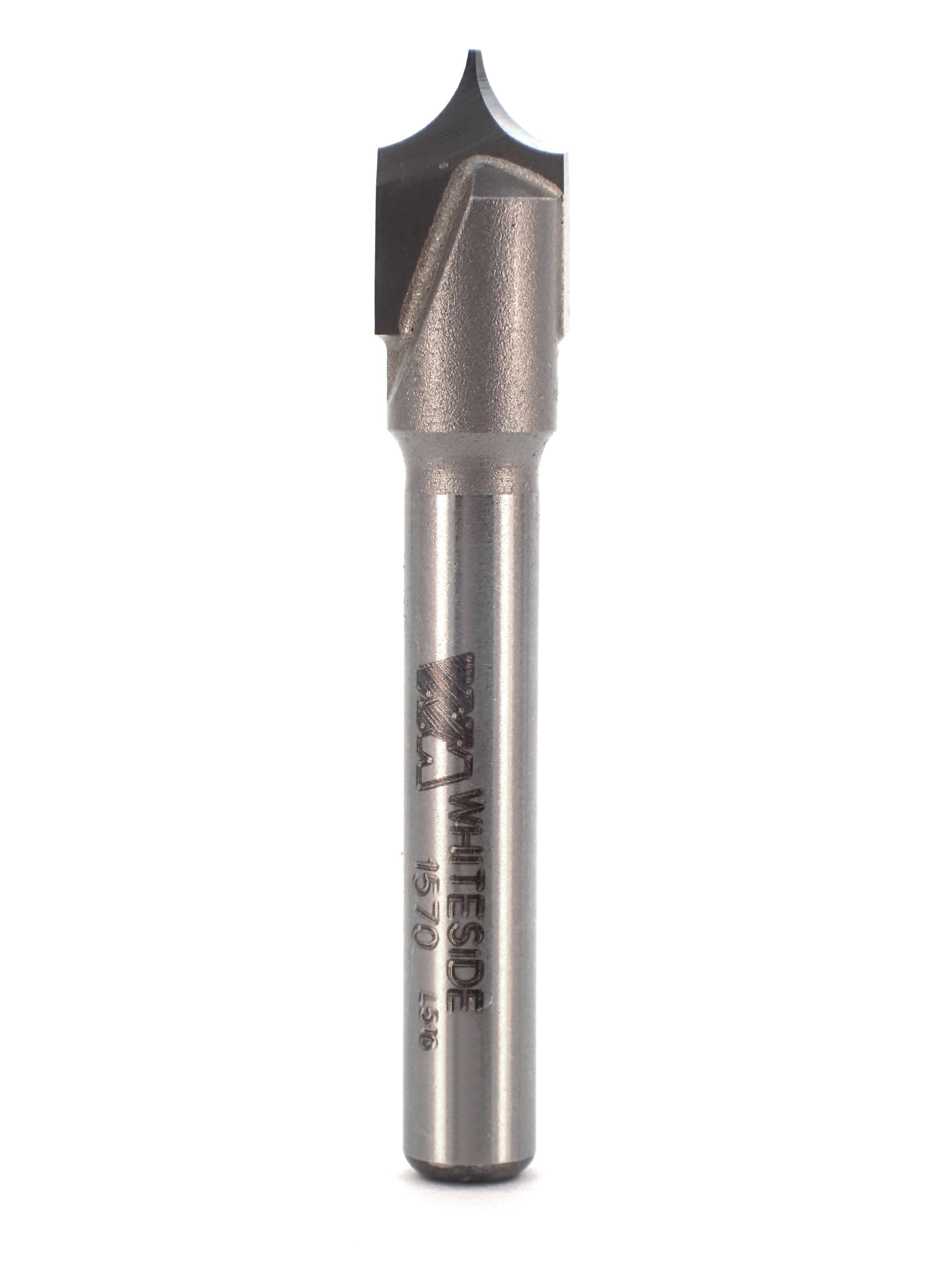

1570

Point Cutting Roundover Bit

1/4"SH, 3/16"R, 3/8"CD, 3/8"CL

Product Description



Materials: Natural woods, composite woods, hard plastics, thin aluminum

Recommended RPM: 18,000-22,000 (max 24,000)

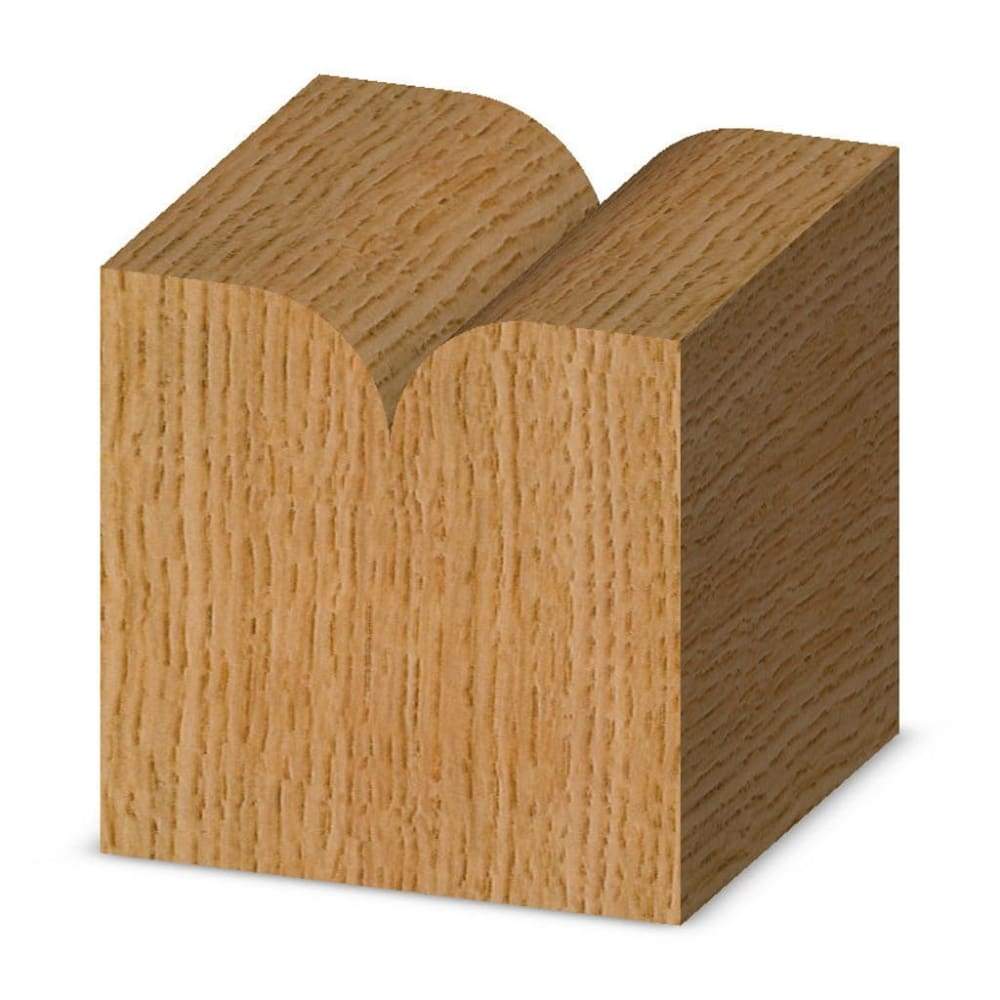

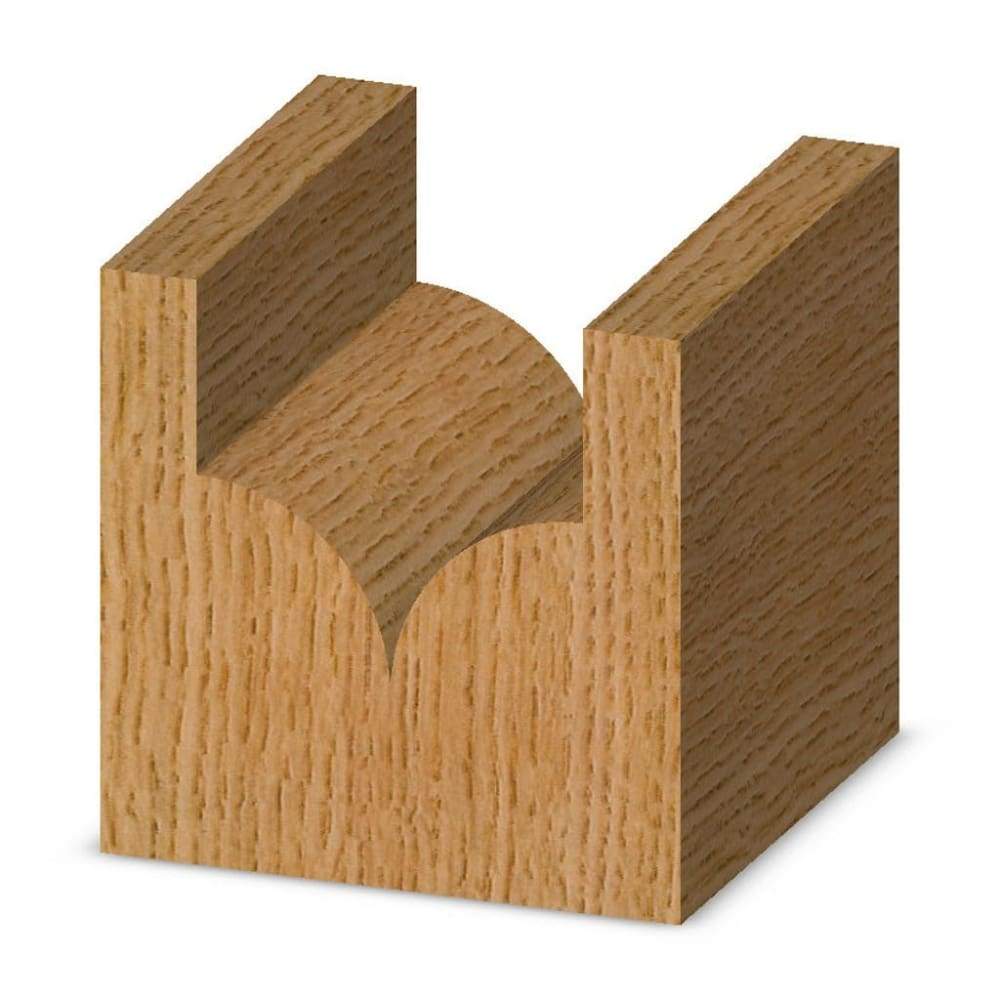

Unlike some tools, the tip of this bit is a part of the cutting edge. These Point Cutting Roundovers give your workpiece the vee shape of a V-Groove but with a rounded top edge. Designed for decorative trimming and lettering.

  • TOOL SPECS: Carbide-tipped, point cutting roundover bit with 3/8" cutting diameter, 3/16" radius, 1/2" cutting length, 1/4" shank, and 2" overall length for use with 1/4" collets.
  • POINT ROUNDOVER: Ideal for creating a decorative edge while trimming or for lettering, delivering precise and clean cuts for various woodworking projects.

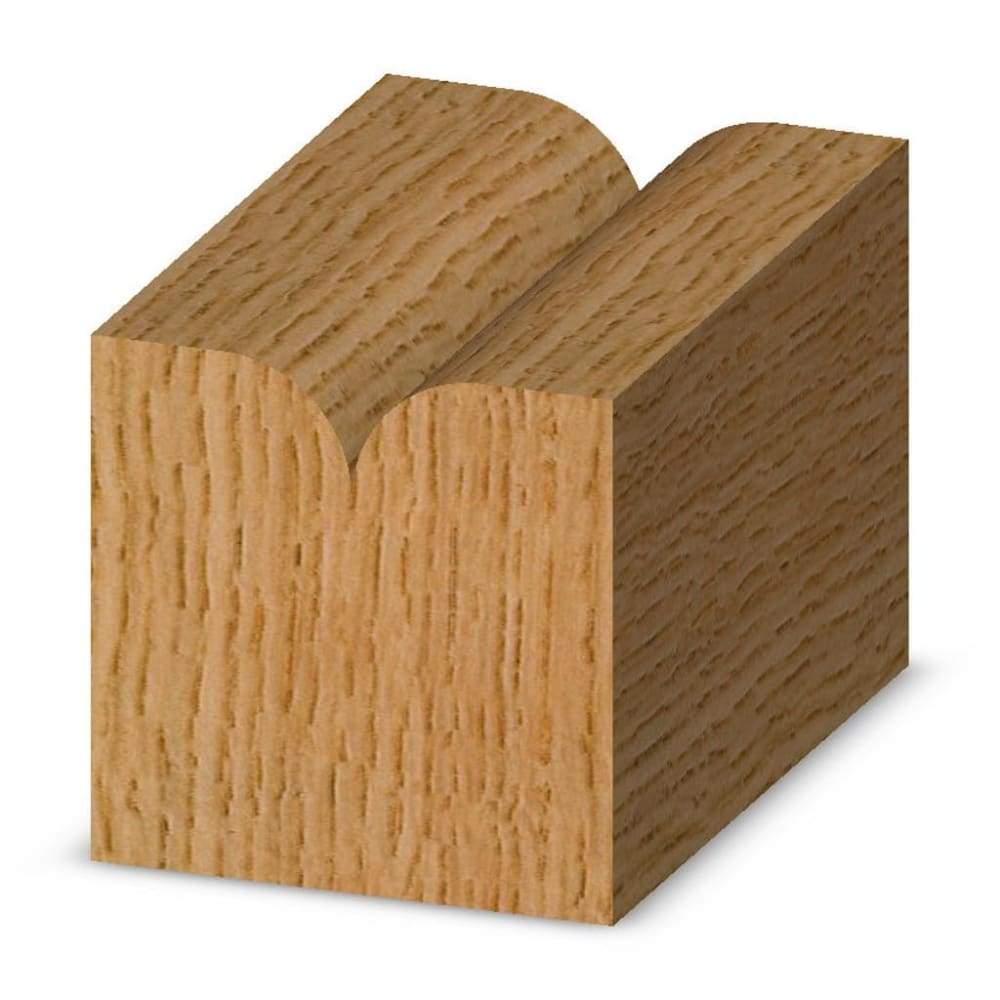

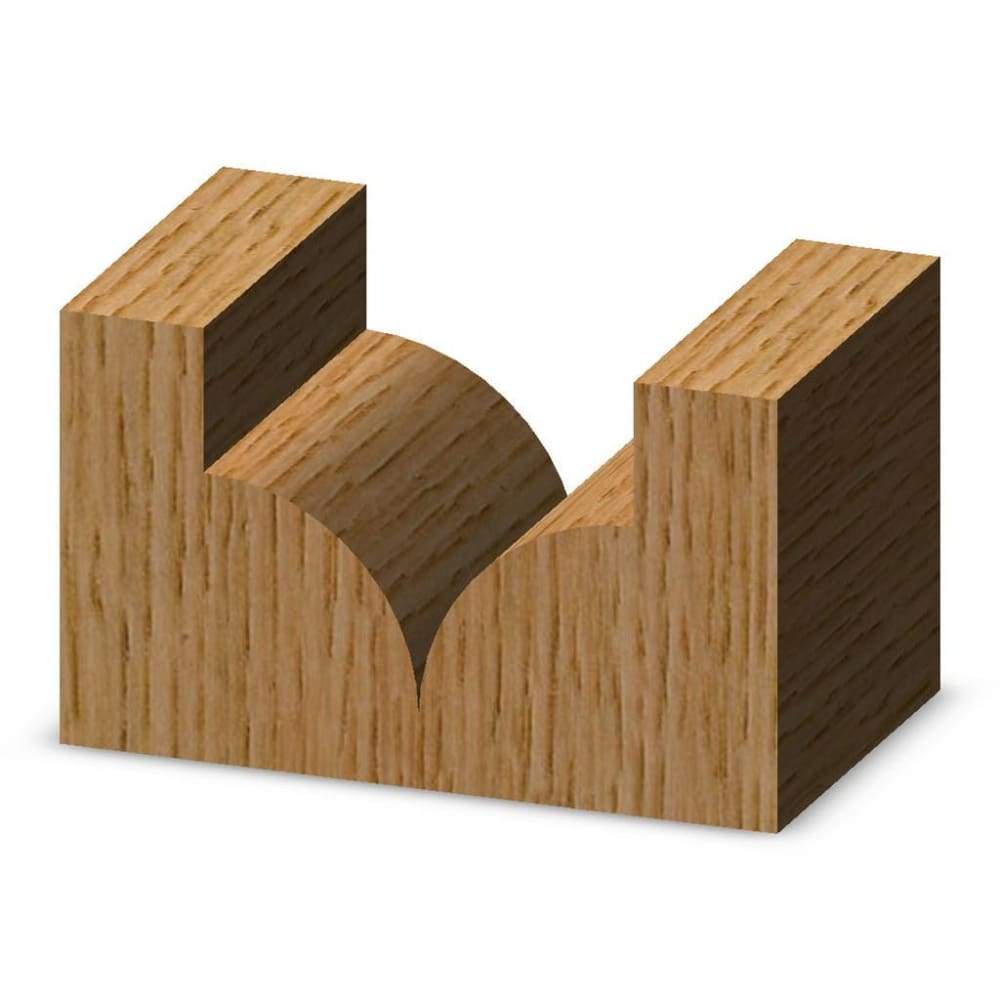

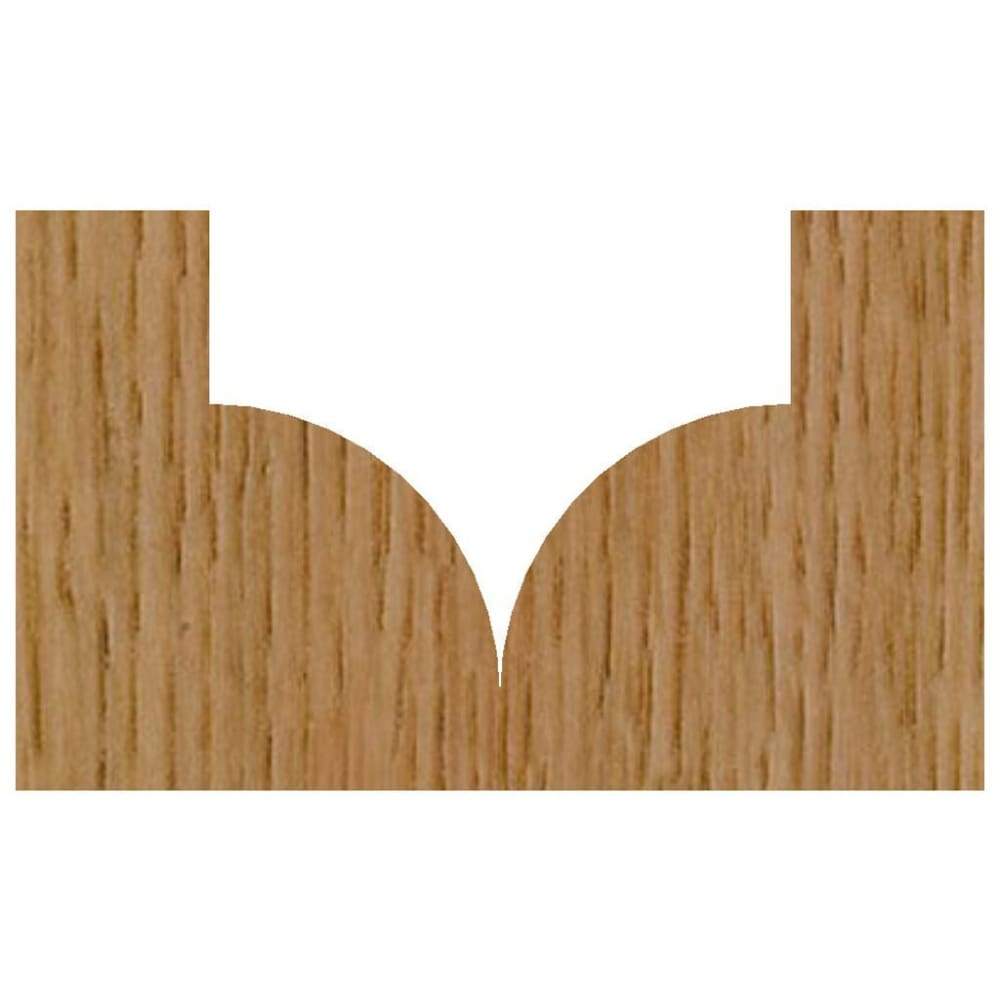

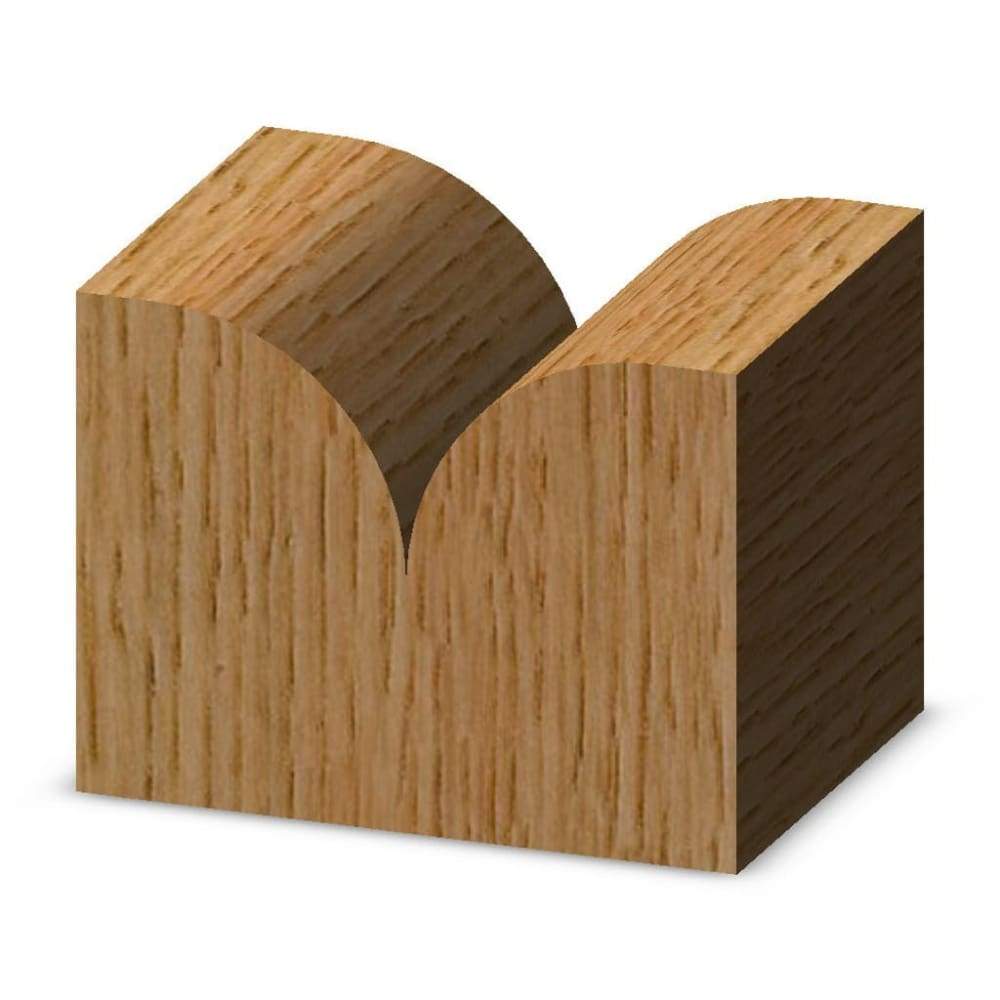

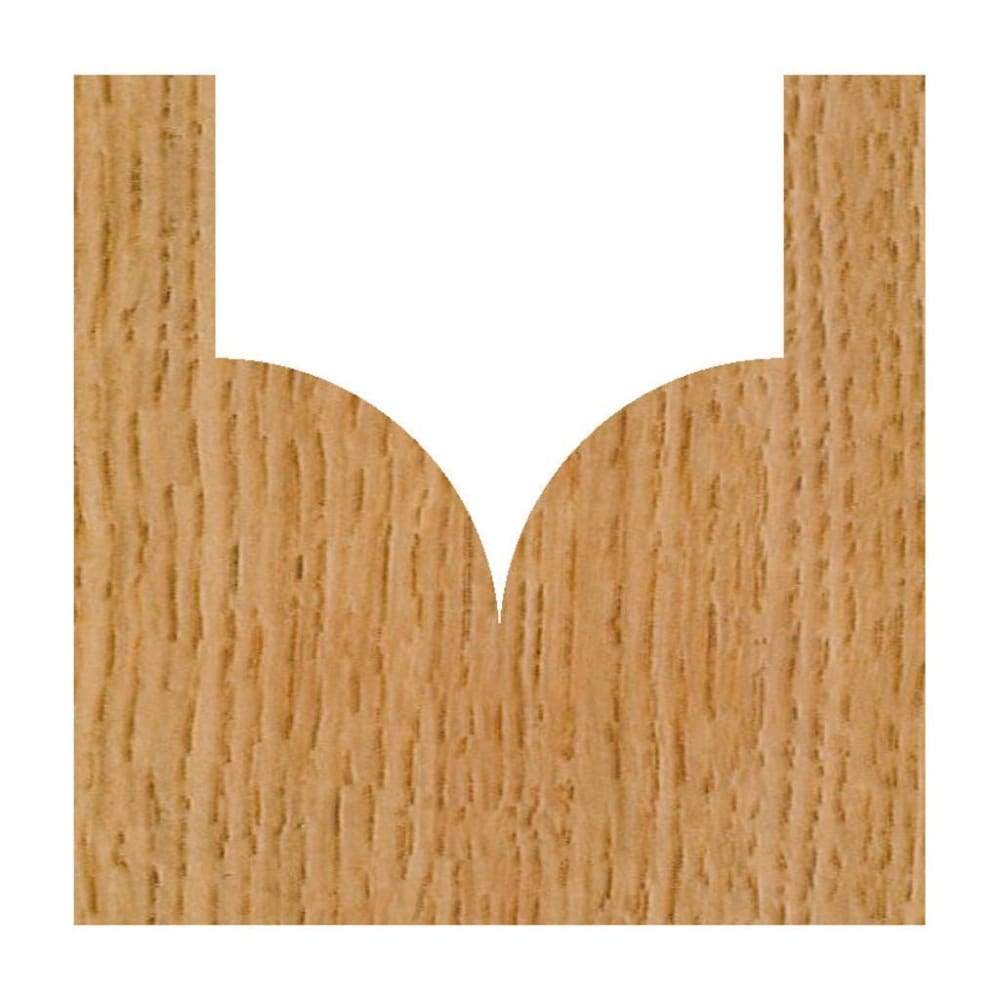

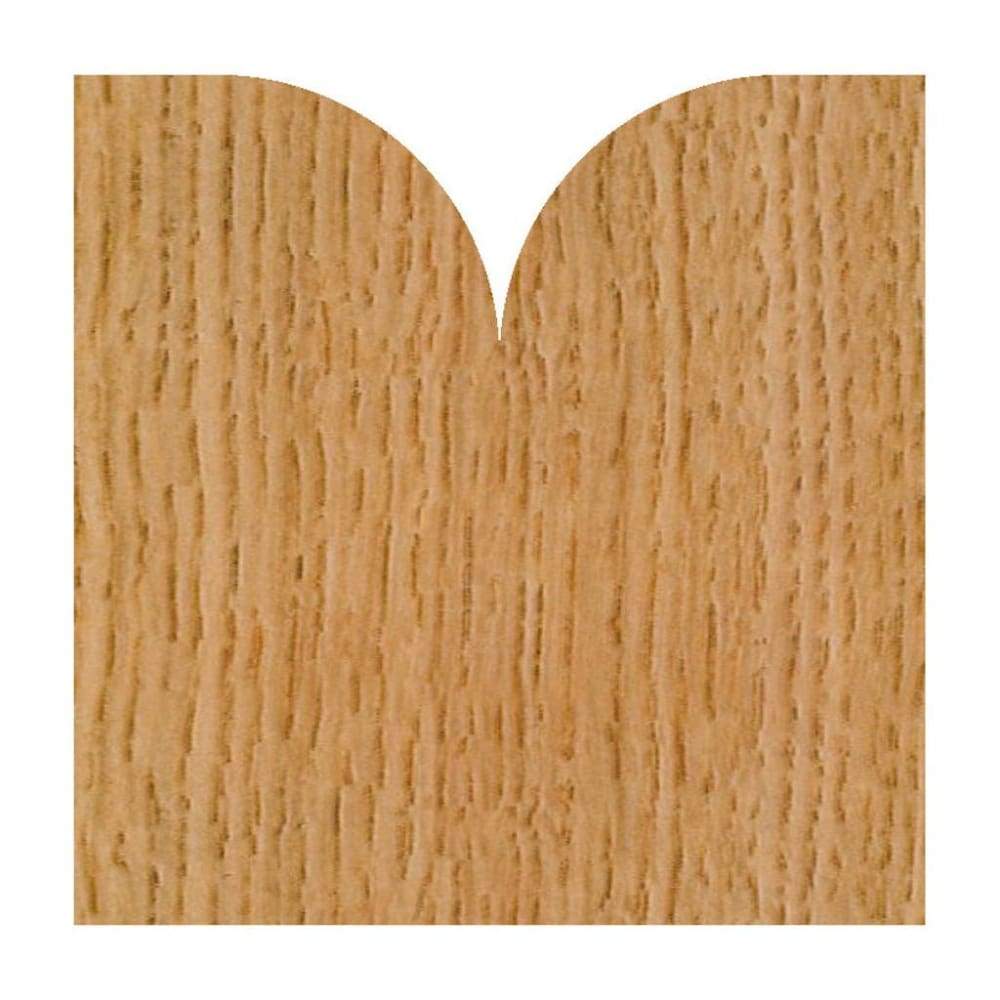

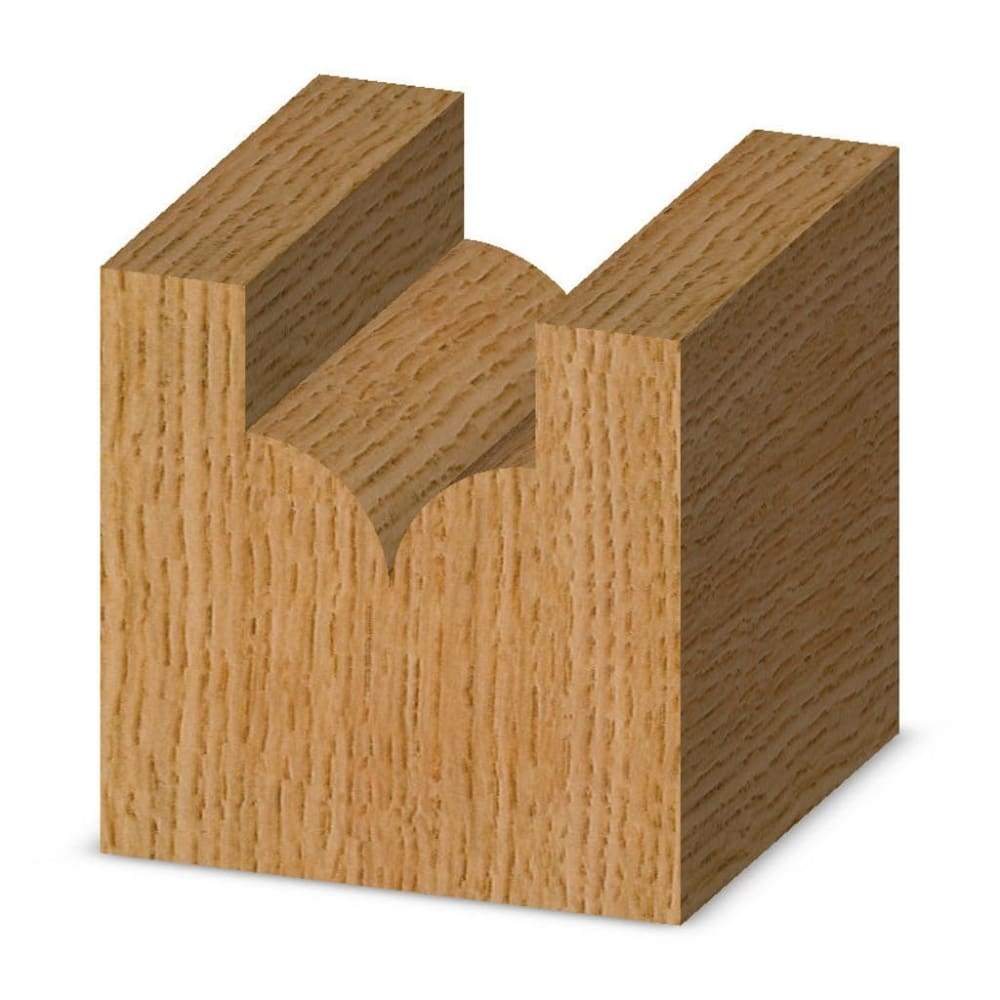

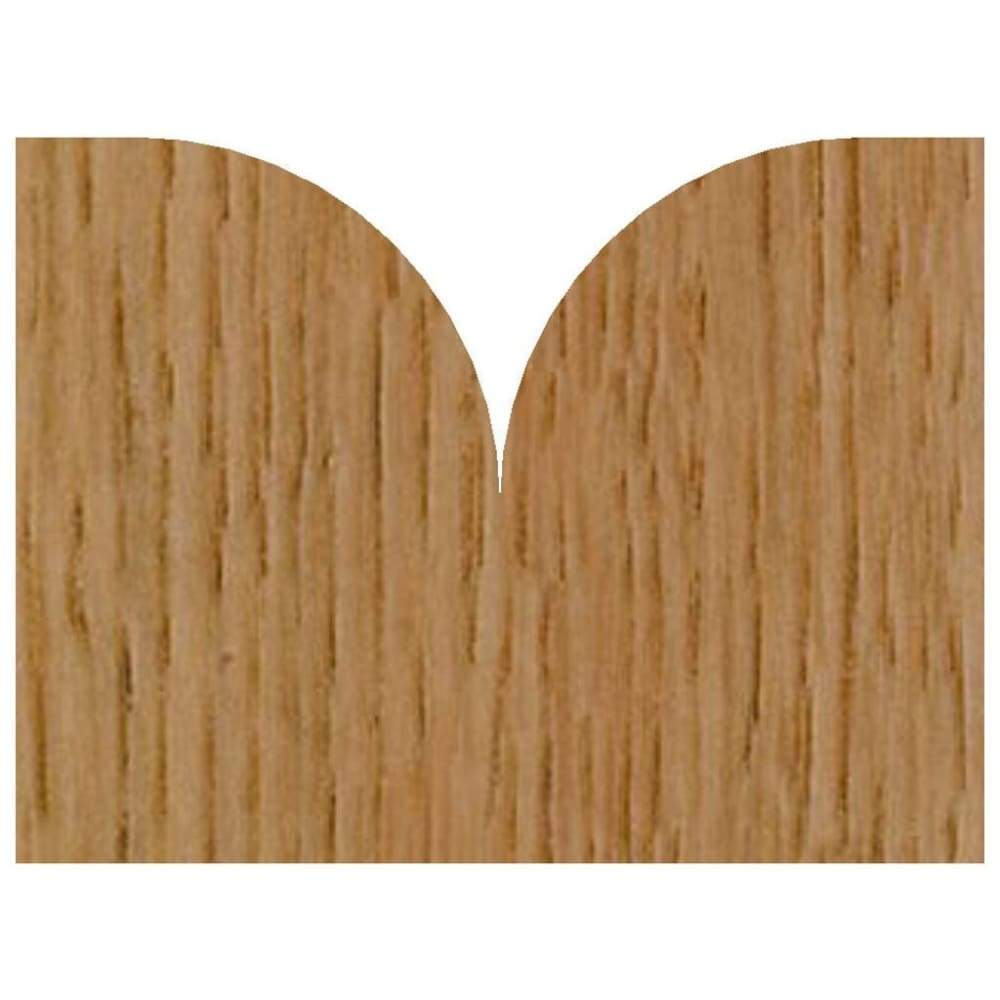

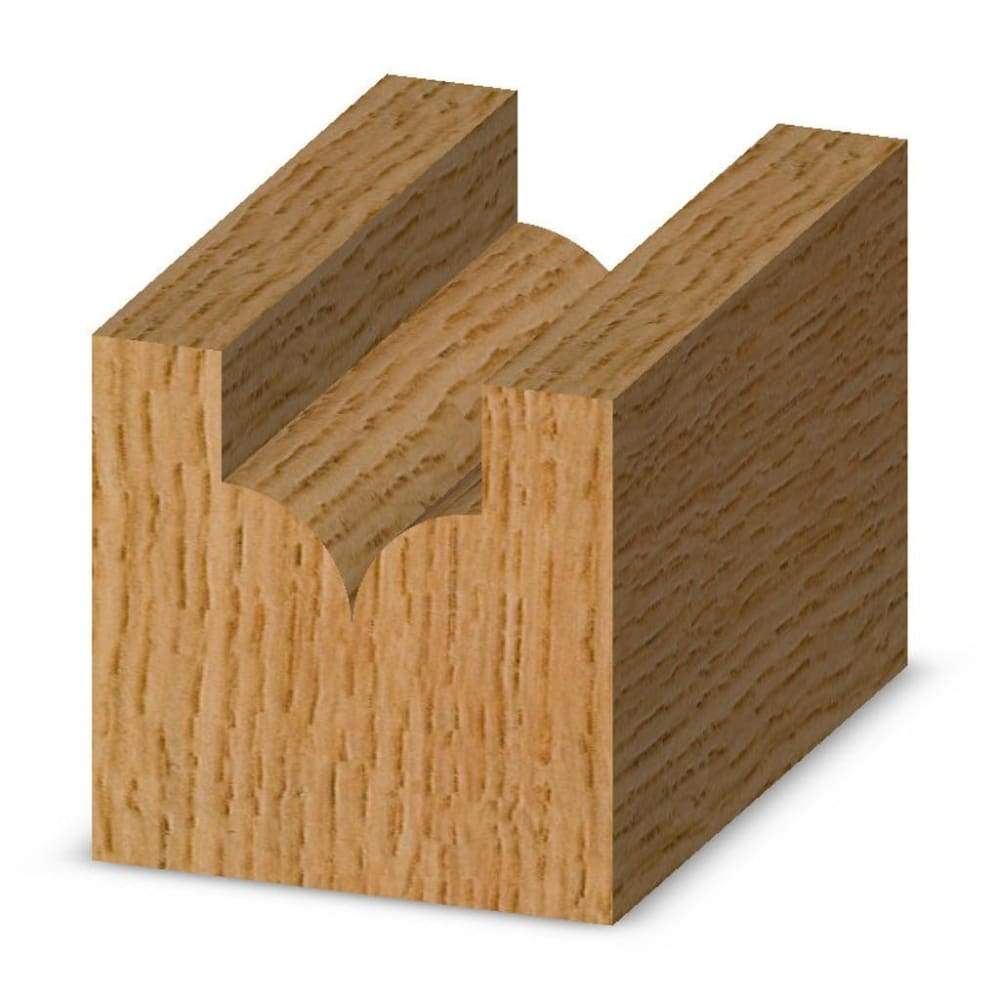

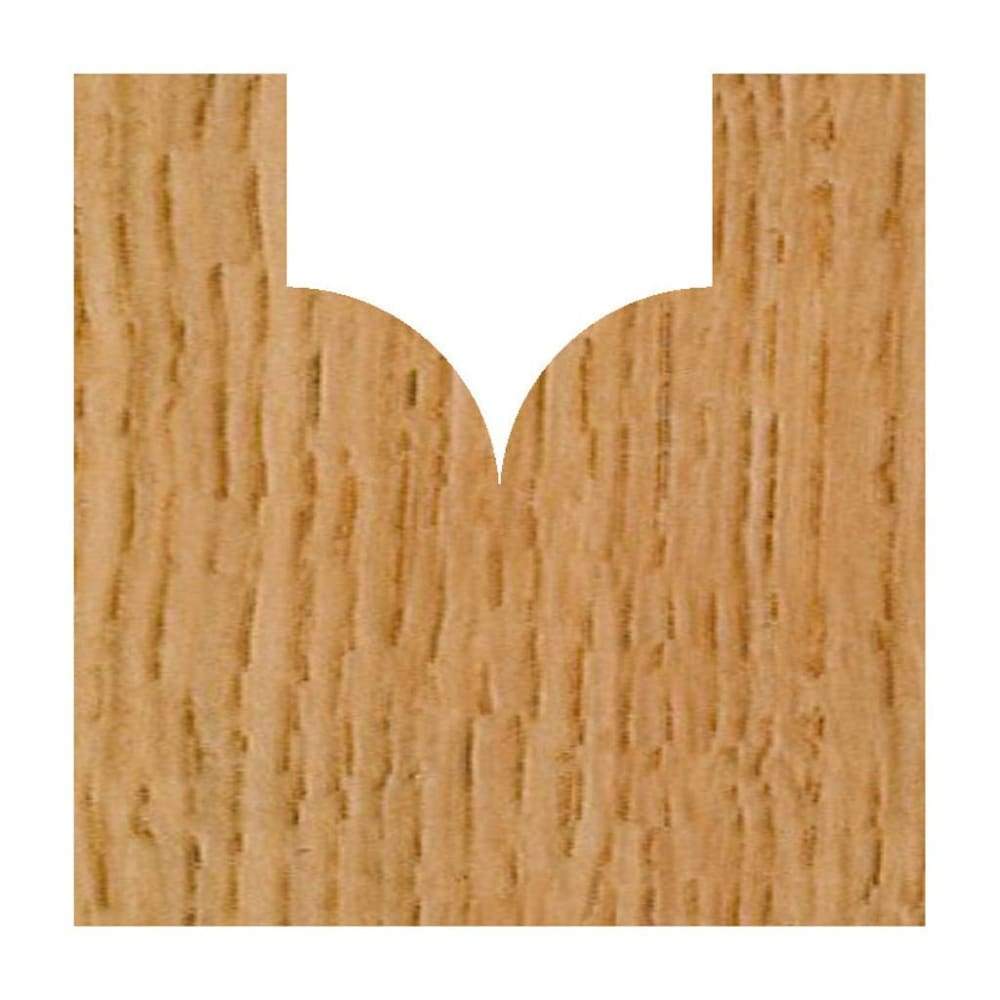

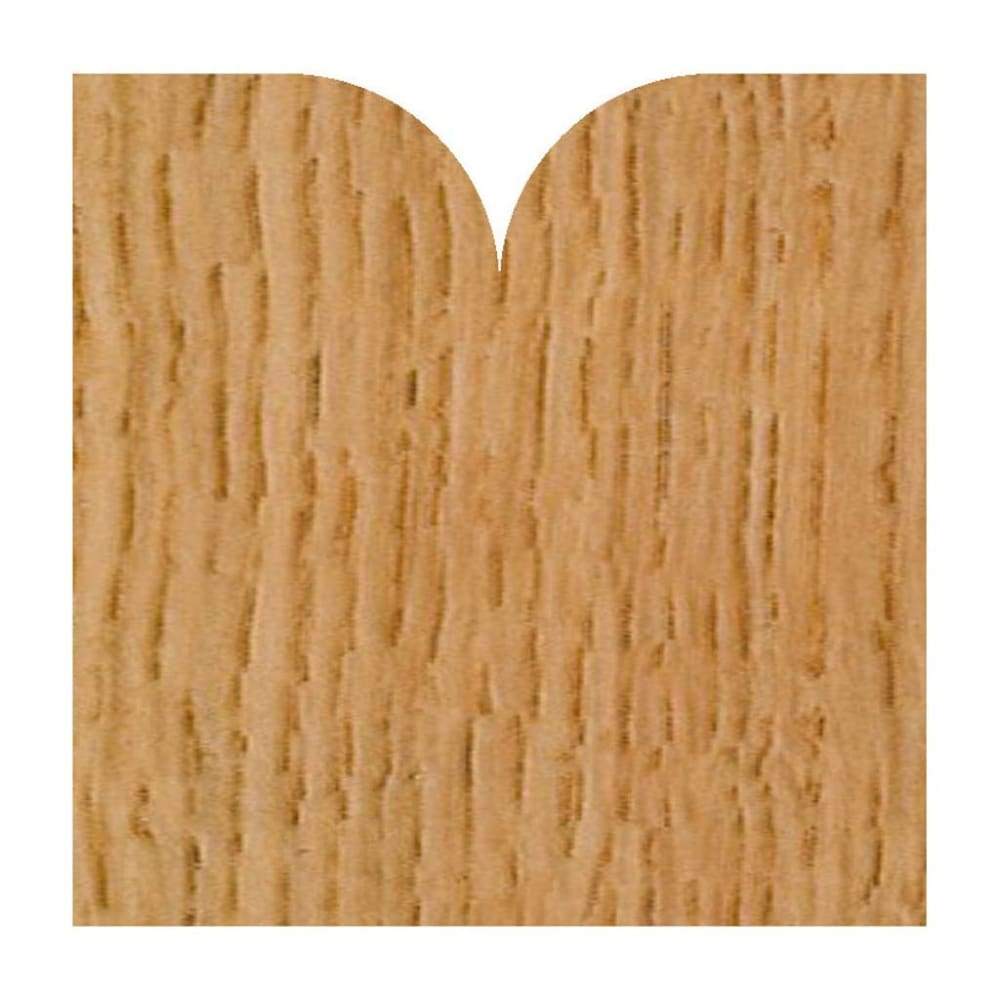

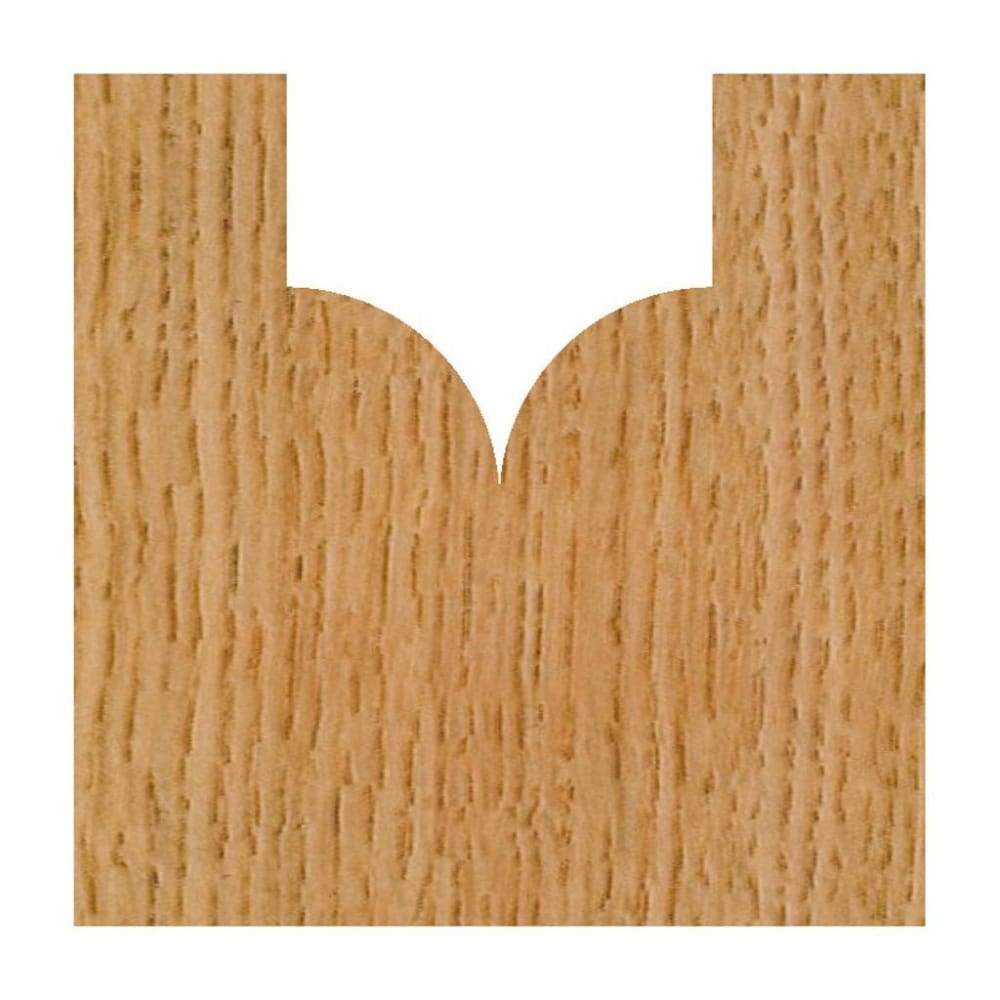

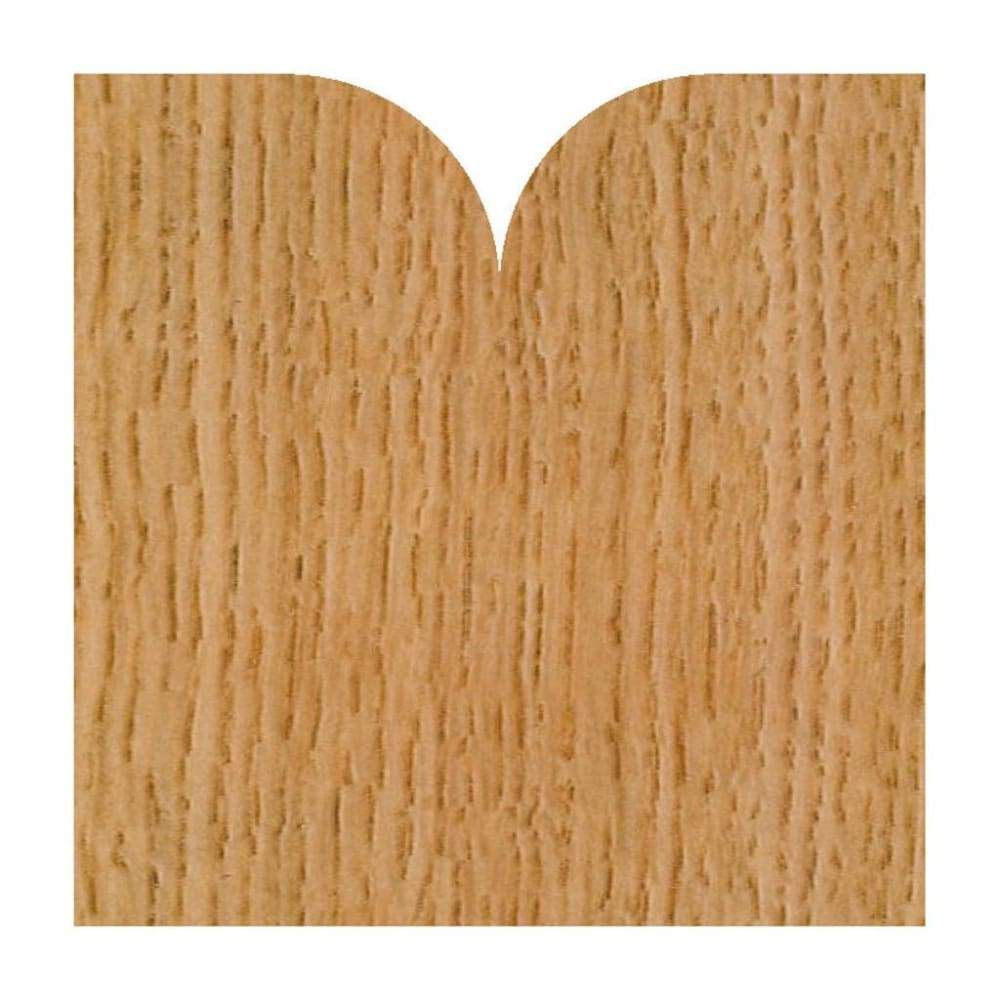

  • DISTINCT PROFILES: Create many different appearances with varying depths of cut. A shallow cut will leave a thin groove with a sight radius while a deeper cut will provide a full radius.
  • CARBIDE TIPPED: Offers an excellent balance of quality and cost, making it ideal for a wide range of applications.
  • MATERIALS: Perfect for use on natural woods, composite woods, and hard plastics, providing clean and precise cuts across a variety of surfaces.
  • DISTINCT PROFILES: Designed for hand-held routers, router tables, and CNC machines in a wide variety of applications.
Part # Cutting Dia. Radius Cutting Length Overall Length
1/4" SHANK

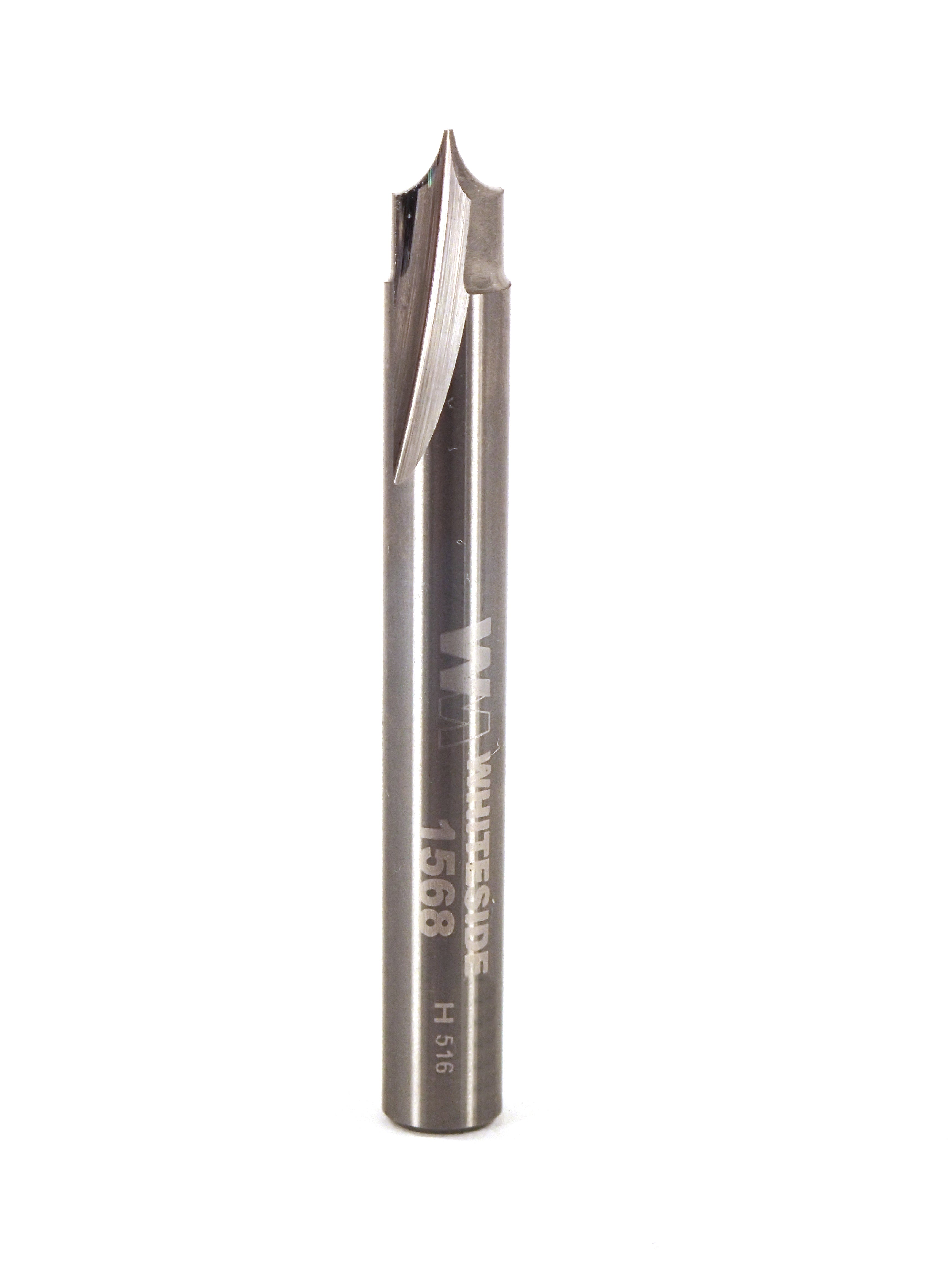

1568 1/4" 1/8" 1/4" 2"
1570 3/8" 3/16" 1/2" 2"

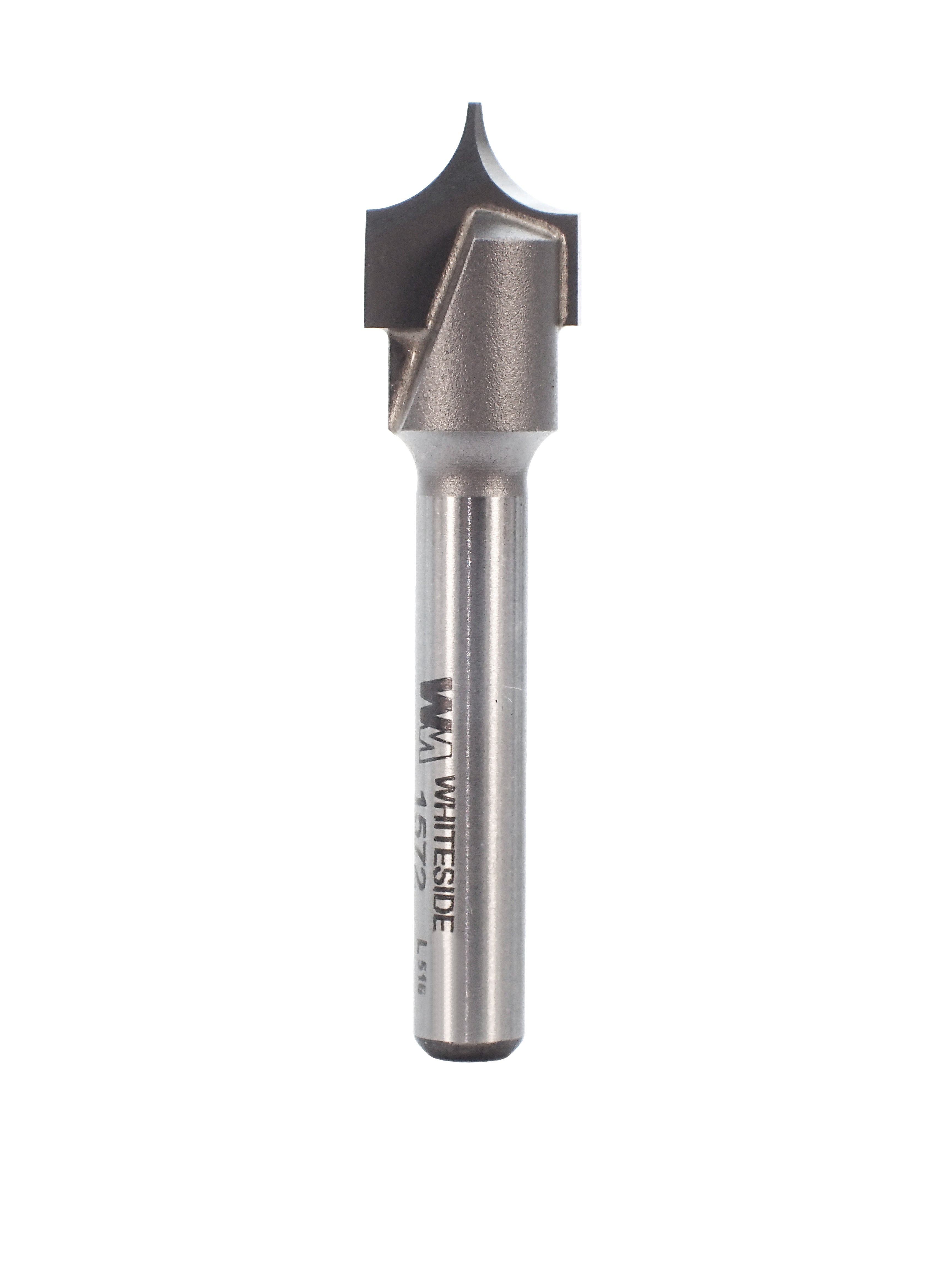

1572 1/2" 1/4" 1/2" 2"
1574 3/4" 3/8" 5/8" 2"
1/2" SHANK

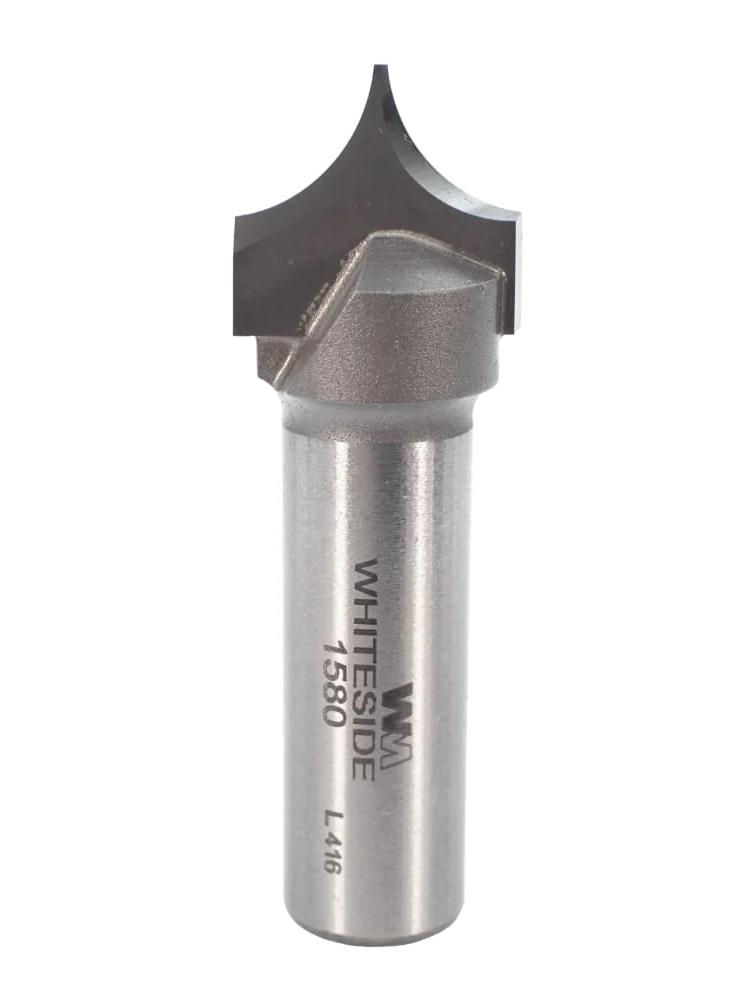

1580 3/4" 3/8" 5/8" 2-1/4"
1582 1" 1/2" 3/4" 2-3/8"

Point Cutting Roundovers are not guaranteed against breakage.
