1376

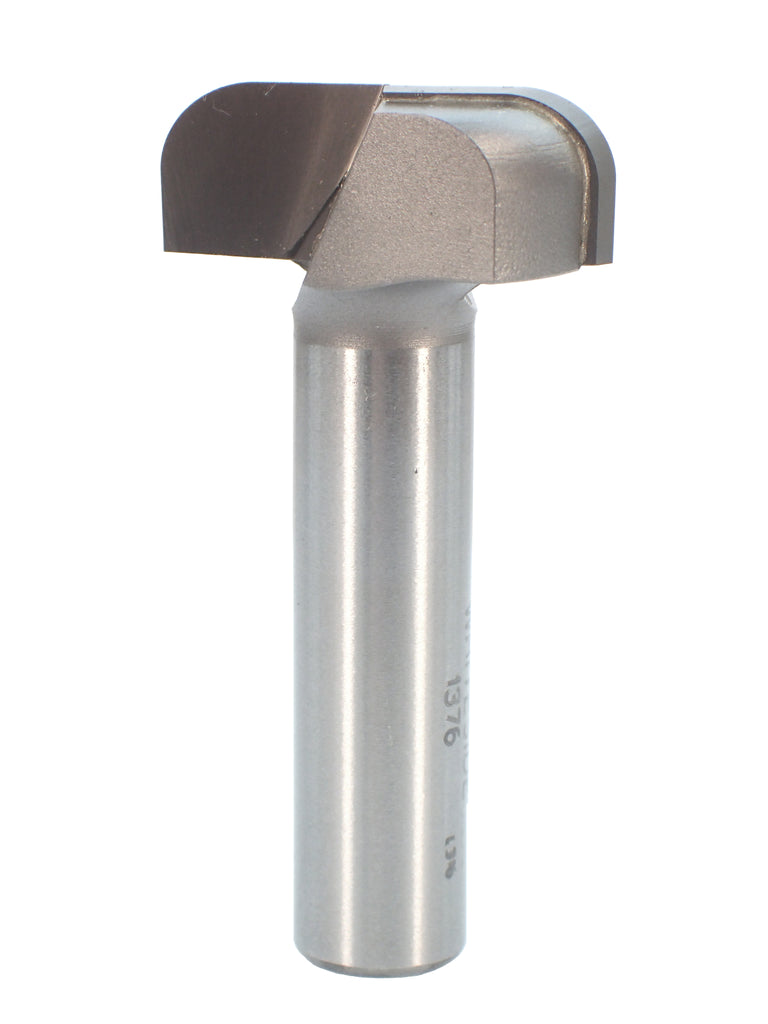

Bowl & Tray Bit
1/2"SH, 1/4"R, 1-1/4"CD
Product Description
Materials: Natural woods, composite woods, hard plastics, thin aluminum
Recommended RPM: 14,000-16,000 (max 18,000)

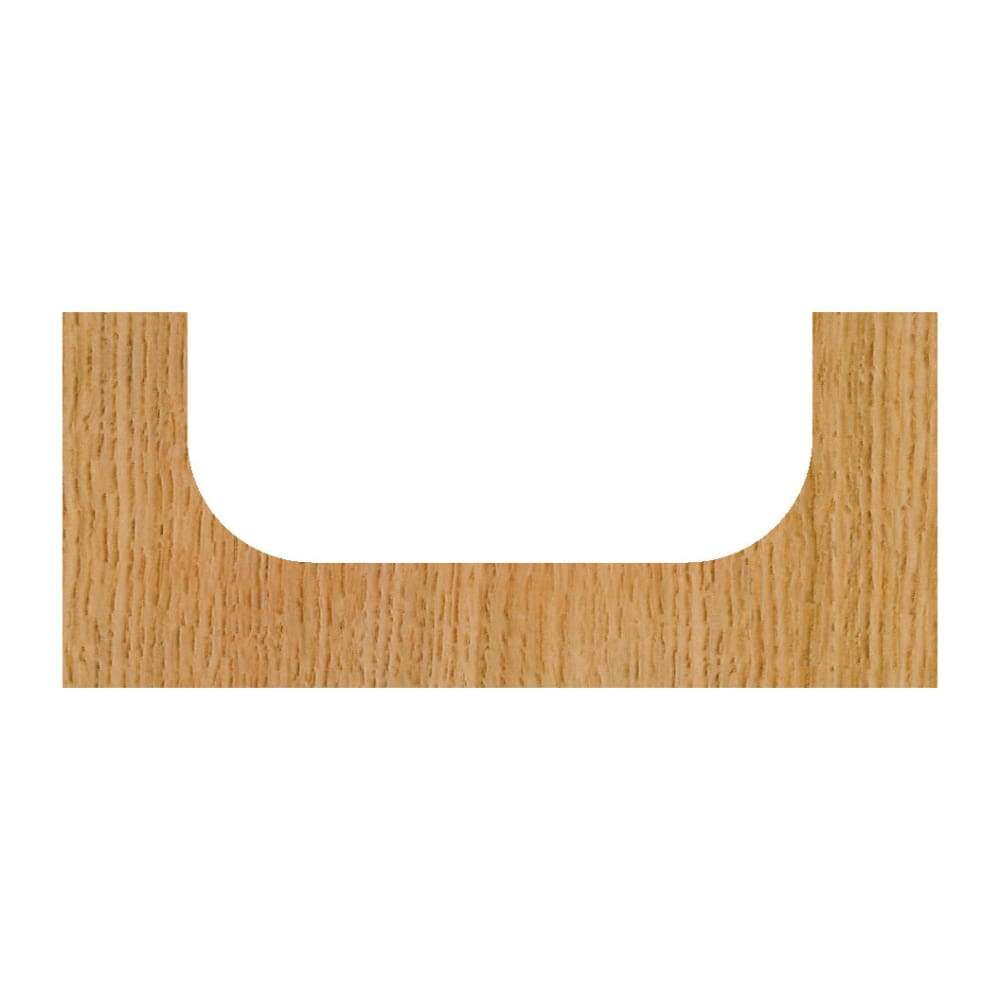

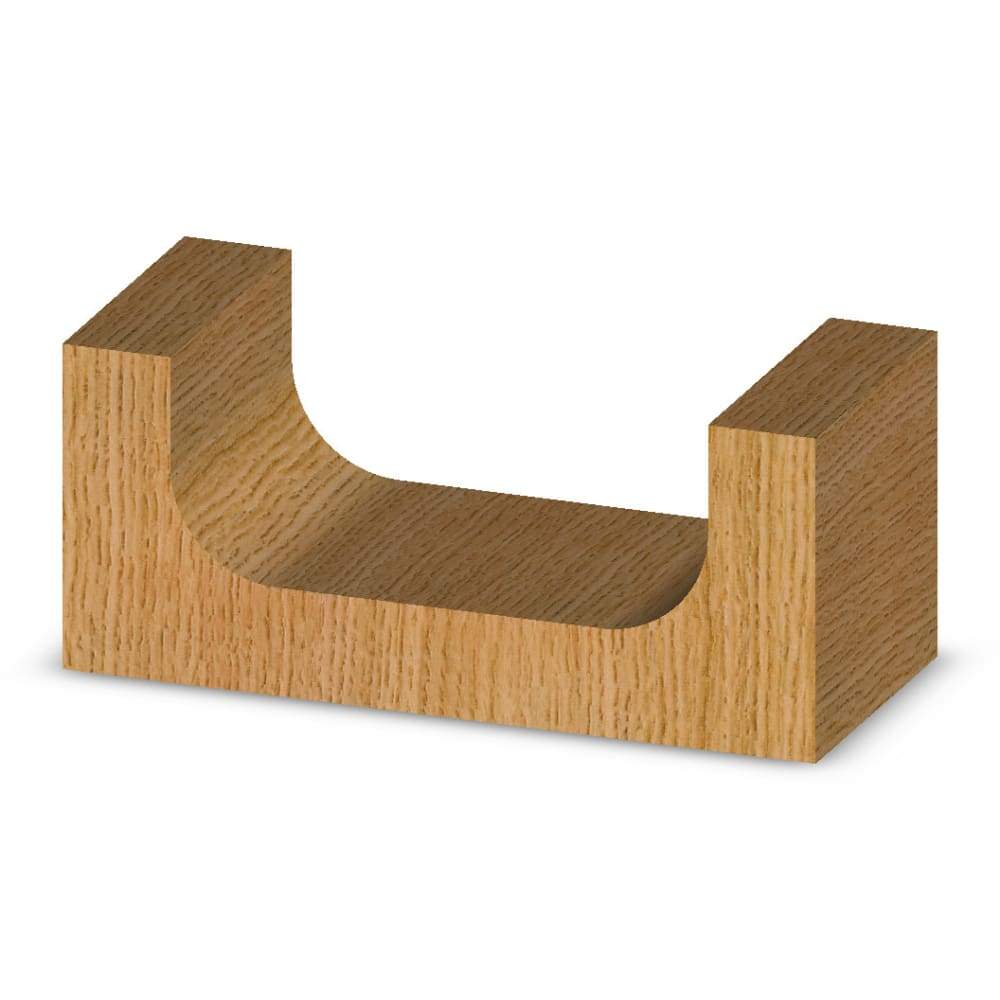

Bowl and Tray bits were designed as an alternate cutting shape to the traditional Round Nose. These bits have a flat bottom so that ridges are not left when cutting out the bottom of a bowl or serving tray.
- TOOL SPECS: Carbide-tipped, bowl and tray form bit with 1-1/4" cutting diameter, 1/2" cutting length, 1/2" shank, 1/4" radius, and 2-1/4" overall length for use with 1/2" collets.
- BOWL AND TRAY: These rounded bits are highlighted by their flat bottom, offering an alternative to traditional round nose bits for cutting the bottoms of bowls or trays for a smooth finish.
- CARBIDE TIPPED: Offers an excellent balance of quality and cost, making it ideal for a wide range of applications.
- STEEL SHANK: The steel body creates a rigid tool with reduced vibration while the carbide cutting edges provide extended life.
- MATERIALS: Works effectively on natural woods, composite woods, and hard plastics for versatile, high-performance cutting and shaping.
- DISTINCT PROFILES: Designed for hand-held routers, router tables, and CNC machines in a wide variety of applications.
Similar Sizes
| Part # | Cutting Dia. | Radius | Cutting Length | Overall Length |
|---|---|---|---|---|
| 1/4" SHANK | ||||
| 1370 | 7/16" | 1/8" | 5/16" | 2-1/8" |
| 1372 | 3/4" | 1/4" | 5/8" | 2-3/8" |
| * 1372B | 3/4" | 1/4" | 5/8" | 2-3/8" |
| 1/2" SHANK | ||||
| 1374 | 3/4" | 1/4" | 5/8" | 2-3/8" |
| * 1374B | 3/4" | 1/4" | 5/8" | 2-3/8" |
| 1376 | 1-1/4" | 1/4" | 1/2" | 2-1/4" |
| * 1376B | 1-1/4" | 1/4" | 1/2" | 2-1/4" |
* Supplied with bearing on shank for pattern template routing.
