09-165

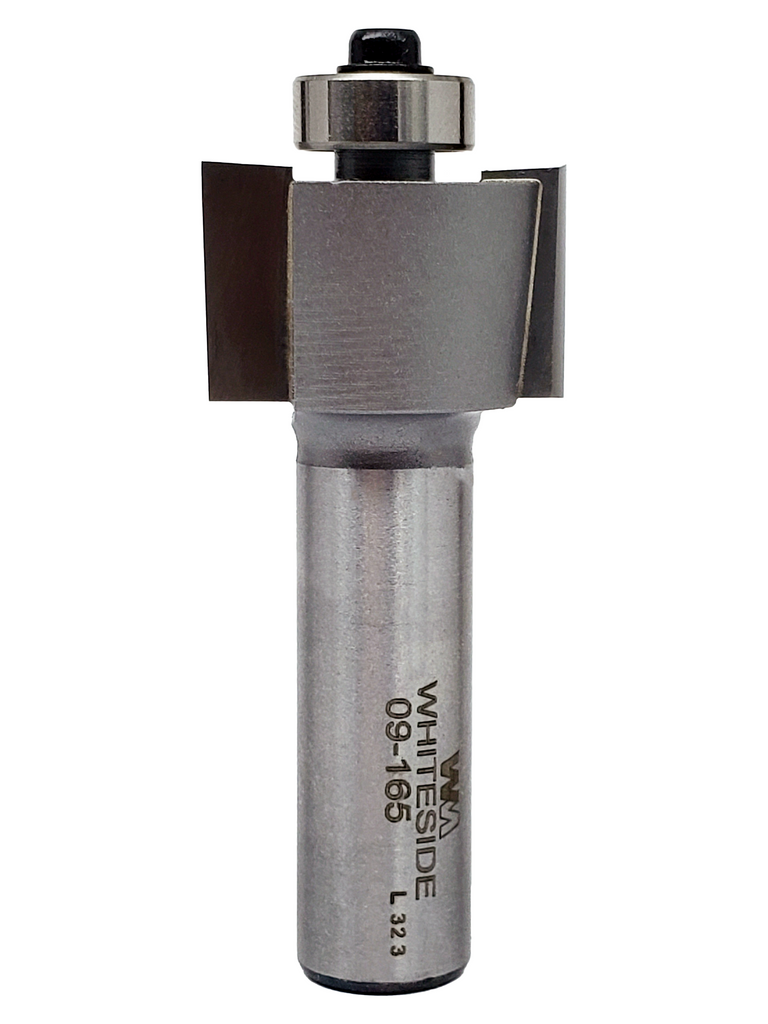

Straight Chairmaking Rabbet

1/2"SH, 1" CD, 5/8"CL

Product Description



These bits have a straight cutting edge and were made specifically for cutting the seat-to-leg tapered joints on "Maloof inspired" rocking chairs. See the other sizes listed below for the +5° option and the -5° edge option.

Materials: Natural woods, composite woods, hard plastics

Recommended RPM: 13,000-15,000 (max 18,000)

Part # Cutting Dia. Cutting Length Overall Length Bearing Number
1/2" SHANK
09-163 1" +5° 5/8" 2-1/2" 09-163B
09-164 1" -5° 5/8" 2-1/2" 09-164B
09-165 1" Straight 5/8" 2-1/2" B3
