6024

Drawer Pull - European Style

1/2"SH, 3/16"R, 7/8"CL

Product Description



Materials: Natural woods, composite woods

Recommended RPM: 16,000-18,000 (max 24,000)



This bit cuts a small European Style groove across the bottom of a desk drawer allowing a place for your fingers to pull open the drawer.

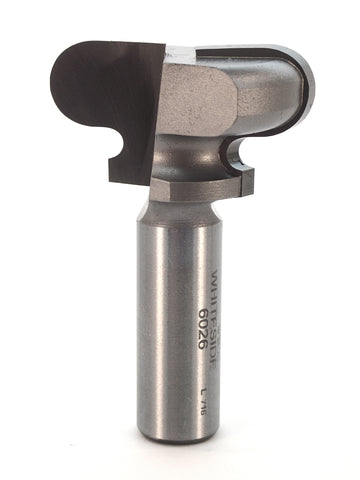

  • TOOL SPECS: Carbide-tipped European style drawer pull bit with 3/16" large radius, 3/4" large diameter, 7/8" cutting length, 1/2" shank, and 2-3/8" overall length for use with 1/2" collets.
  • DRAWER PULL: Perfect for creating a built-in, recessed finger pull directly on the edge of a drawer or cabinet door, offering a clean, functional design.
  • SLEEK DESIGN: Eliminates the need for a separate handle or knob, providing a clean, sleek look for your doors and drawers.

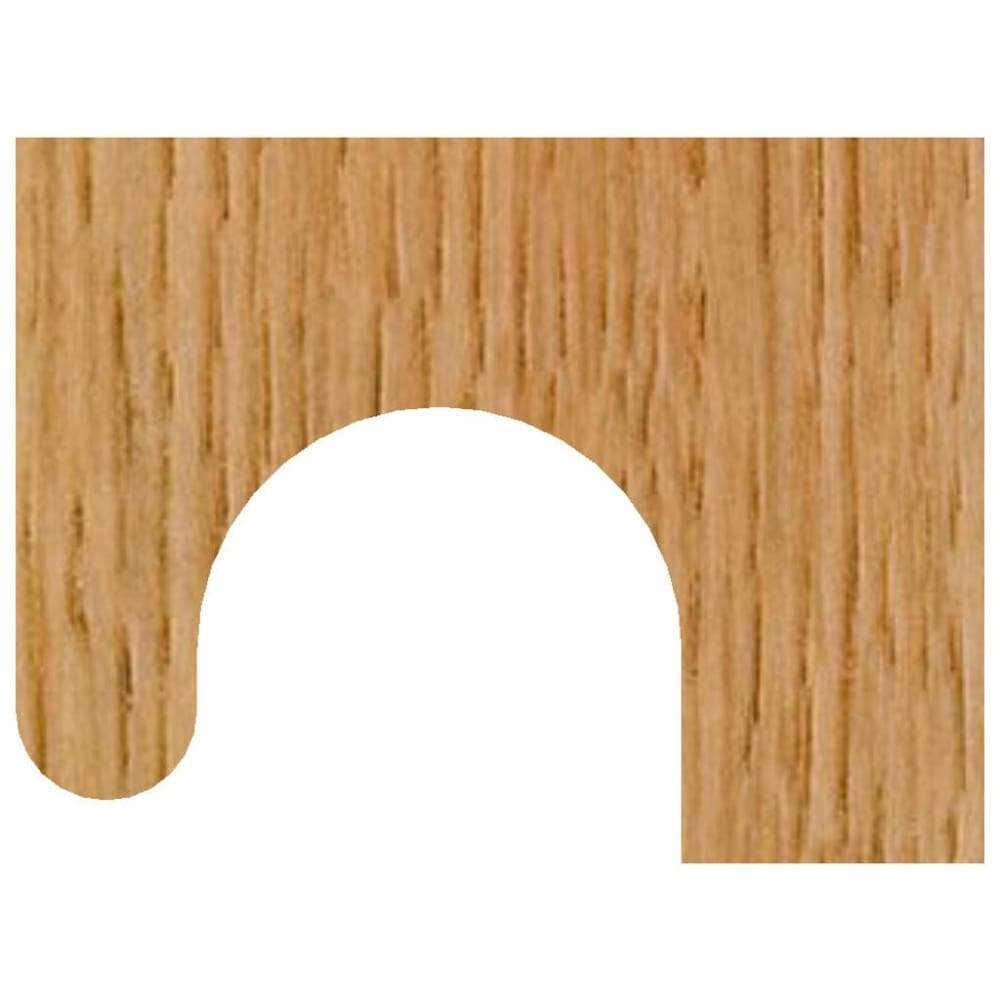

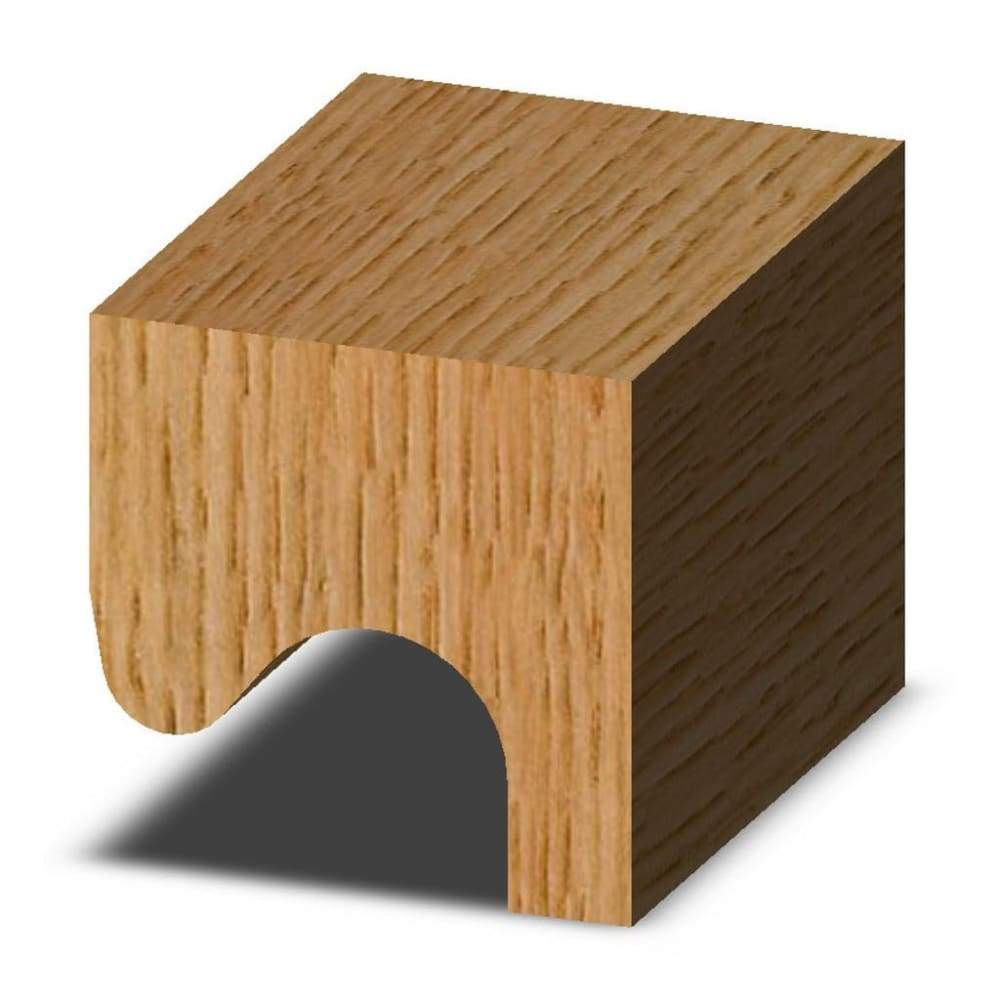

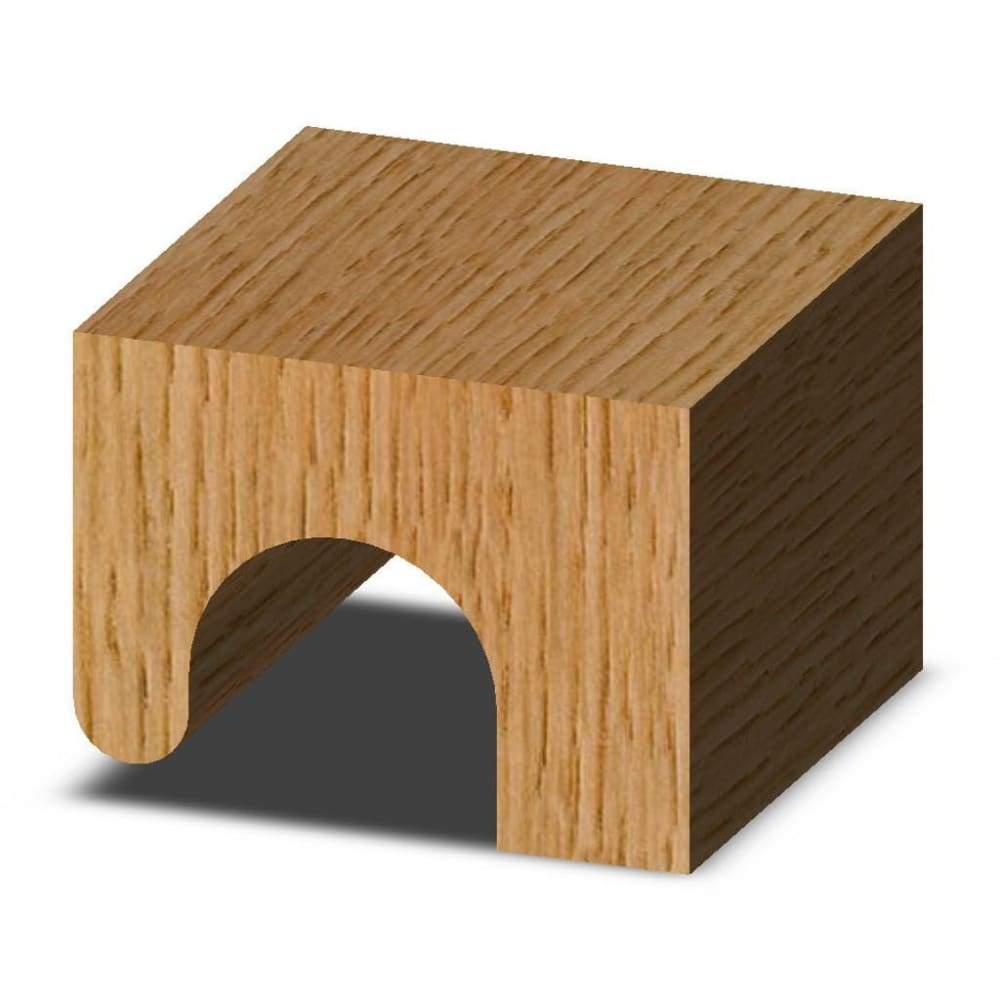

  • FINGER PULL: Produces a nice smooth finger grip primarily used on the bottom edge of drawer fronts. Creates a slight radius on the bottom lip of the front face.
  • CARBIDE TIPPED: Offers an excellent balance of quality and cost, making it ideal for a wide range of applications.
  • MATERIALS: Perfect for use on natural woods and composite woods, providing clean and precise cuts across a variety of surfaces.

Drawer Pull - European Style

Part # Large Radius Large Dia. Cutting Length Overall Length
1/2" SHANK
6024 3/16" 3/4" 7/8" 2-3/8"
6026 1/4" 1-1/2" 13/16" 2-3/8"

Drawer Edge Finger Pull

Part # Shank Dia. Large Dia. Cutting Length Overall Length
6032 1/2" 1-1/4" 3/4" 2-1/2"

Bearing Number: B3

Drawer Edge Finger Pull

Part # Radius Large Dia. Cutting Length Overall Length
1/2" SHANK
6045 7/32" 1-1/4" 13/16" 2-7/8"
6046 3/8" 1-7/16" 1-1/8" 3-3/8"

Use Bearing (B16 for #6045, B18 for #6046) and Lock Collar (LC-1/2) on shank for template work.
