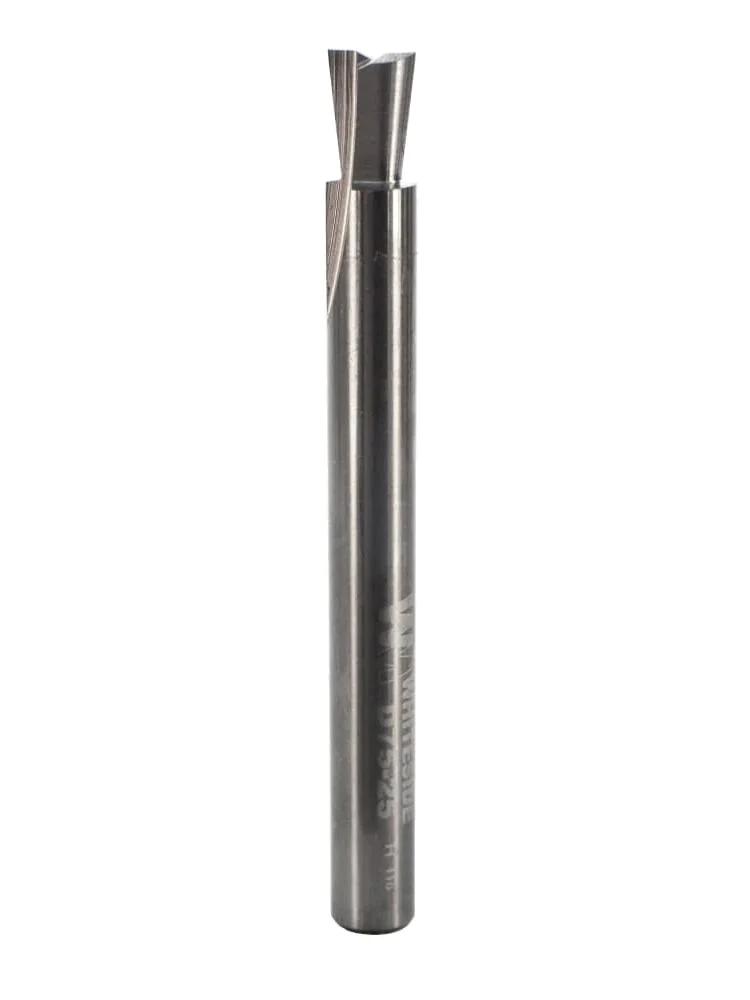

D75-25

7.5° Dovetail Bit

1/4"SH, 1/4"LD, 5/16"DOC

Product Description



For Incra®/OmniJig® 43639. Also compatible with JoinTech™ system.

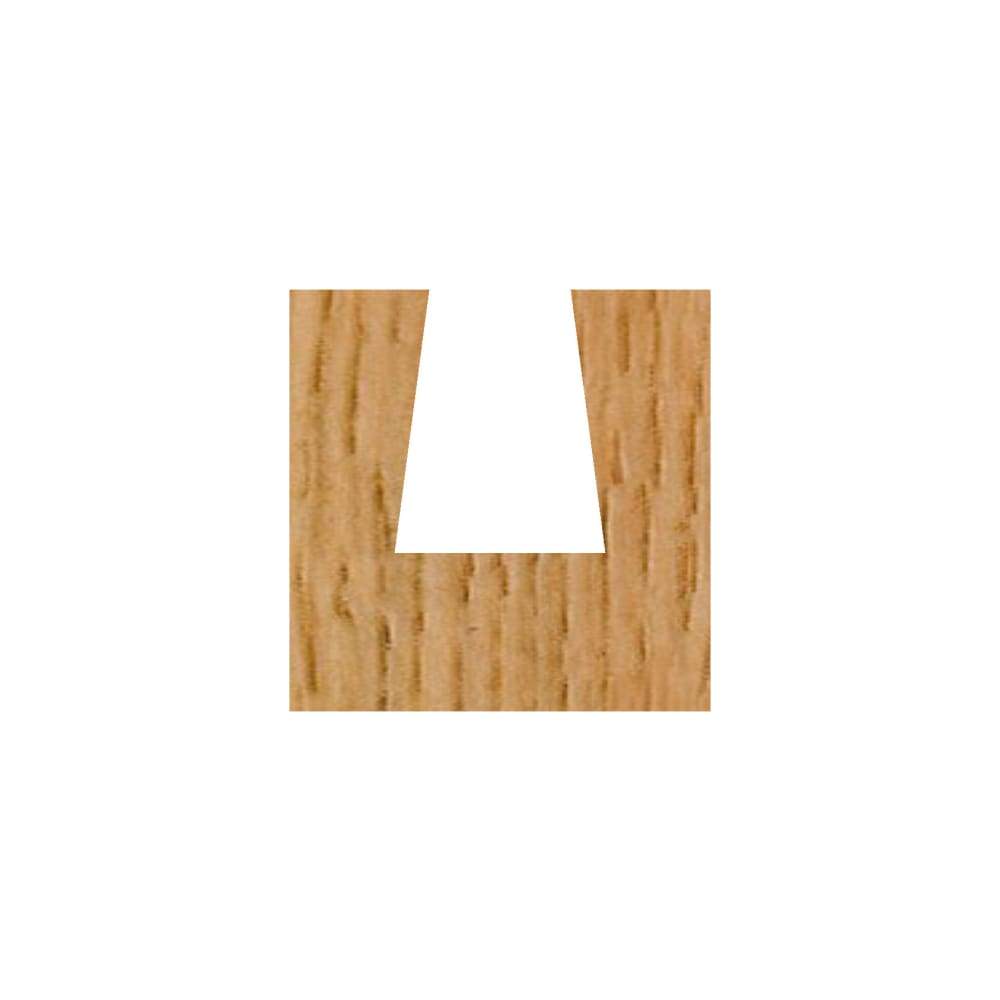

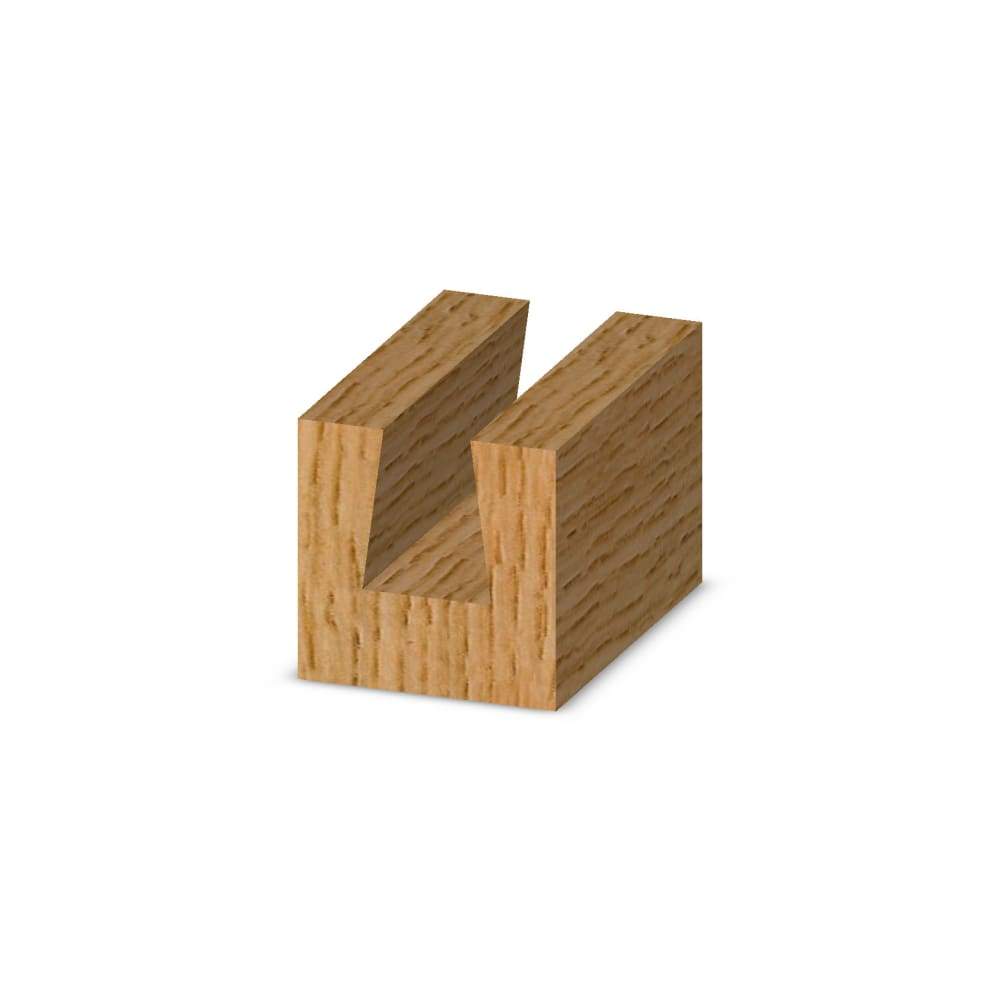

Dovetail joints have traditionally stood as a mark of craftsmanship to the woodworker. The interlocking notches create one of the strongest joints available for cabinets, furniture, boxes, and drawers. Our wide range of premium quality Dovetail Bits will meet all of your dovetailing needs.

Materials: Natural woods, composite woods

Recommended RPM: 16,000-18,000 (max 24,000)

Part # Shank Dia. Large Dia. Cut Depth Overall Length Cross Reference
7° ANGLE
 D7-530 1/4" 17/32" 3/4" 2-1/4" -
 D7-531 1/2" 17/32" 3/4" 2-1/2" P.C. #43776PC
 D7-625 1/2" 5/8" 7/8" 2-5/8" Incra®
 D7-750 1/2" 3/4" 7/8" 2-5/8" Incra®
 D7-875 1/2" 7/8" 7/8" 2-1/2" Stair Tread
      D7-875LH 1/2" 7/8" 7/8" 2-1/2" Stair Tread- Left Hand
7-1/2° ANGLE
sc D75-25    1/4" 1/4" 5/16" 2-1/2" Incra®/OmniJig® 43639
8° ANGLE
sc D8-250     1/4" 1/4" 1/4" 2-1/2" Leigh® #50
sc D8-250x8 8mm 1/4" 1/4" 2-1/2" Leigh® #50-8mm shank
 D8-375 1/4" 3/8" 1/2" 2-3/8" Leigh® #70
     D8-375x8 8mm 3/8" 1/2" 2-3/8" Leigh® #70-8mm shank
 D8-437 1/4" 7/16" 5/8" 2-3/8" Leigh® #75
     D8-437x8 8mm 7/16" 5/8" 2-3/8" Leigh® #75-8mm shank
 D8-500 1/4" 1/2" 13/16" 2-3/4" Leigh® #80
     D8-500x8 8mm 1/2" 13/16" 2-3/4" Leigh® #80-8mm
 D8-687 1/2" 11/16" 1" 3" Leigh® #90
 D8-812 1/2" 13/16" 1-1/4" 3-1/4" Leigh® #100
9° ANGLE
 D9-312 1/4" 5/16" 3/8" 2-1/4" Incra®
 D9-372 1/4" 3/8" 3/8" 2" Incra®
 D9-375 1/2" 3/8" 3/8" 2" -
      D9-375LH 1/2" 3/8" 3/8" 2" Left Hand
 D9-376 1/2" 3/8" 3/8" 2-1/2" Incra®
      D9-376LH 1/2" 3/8" 3/8" 2-1/2" Incra®- Left Hand
10° ANGLE
 D10-50 1/4" 1/2" 5/8" 2-1/2" Incra®/Leigh® #101
     D10-50x8 8mm 1/2" 5/8" 2-1/2" Leigh® #101-8mm shank
 D10-55 1/2" 1/2" 5/8" 2-5/8" Incra®
14° ANGLE
   D14-375 1/4" 3/8" 3/8" 2" -
 D14-50 1/4" 1/2" 1/2" 2" Incra®/OmniJig® 43705
 D14-51 1/4" 1/2" 1/2" 2-3/8" Leigh® #120
     D14-51x8 8mm 1/2" 1/2" 2-3/8" Leigh® #120-8mm shank
 D14-55 1/2" 1/2" 1/2" 2-1/2" Incra®/OmniJig® 43750
   D14-531 1/4" 17/32" 1/2" 2" Incra®
 D14-75 1/2" 3/4" 3/4" 3" OmniJig® 43774
   D14-100 1/2" 1" 7/8" 2-1/2" -
18° ANGLE
 D18-50 1/4" 1/2" 3/8" 2-1/4" Leigh® #128
     D18-50x8 8mm 1/2" 3/8" 2-1/4" Leigh® #128-8mm shank

SC - Solid Carbide
All bits designated Incra® are also compatible with the JoinTech­™ system.

Incra® Dovetail Sets: D101 and 605
Leigh® Dovetail Sets: D108 and D116
