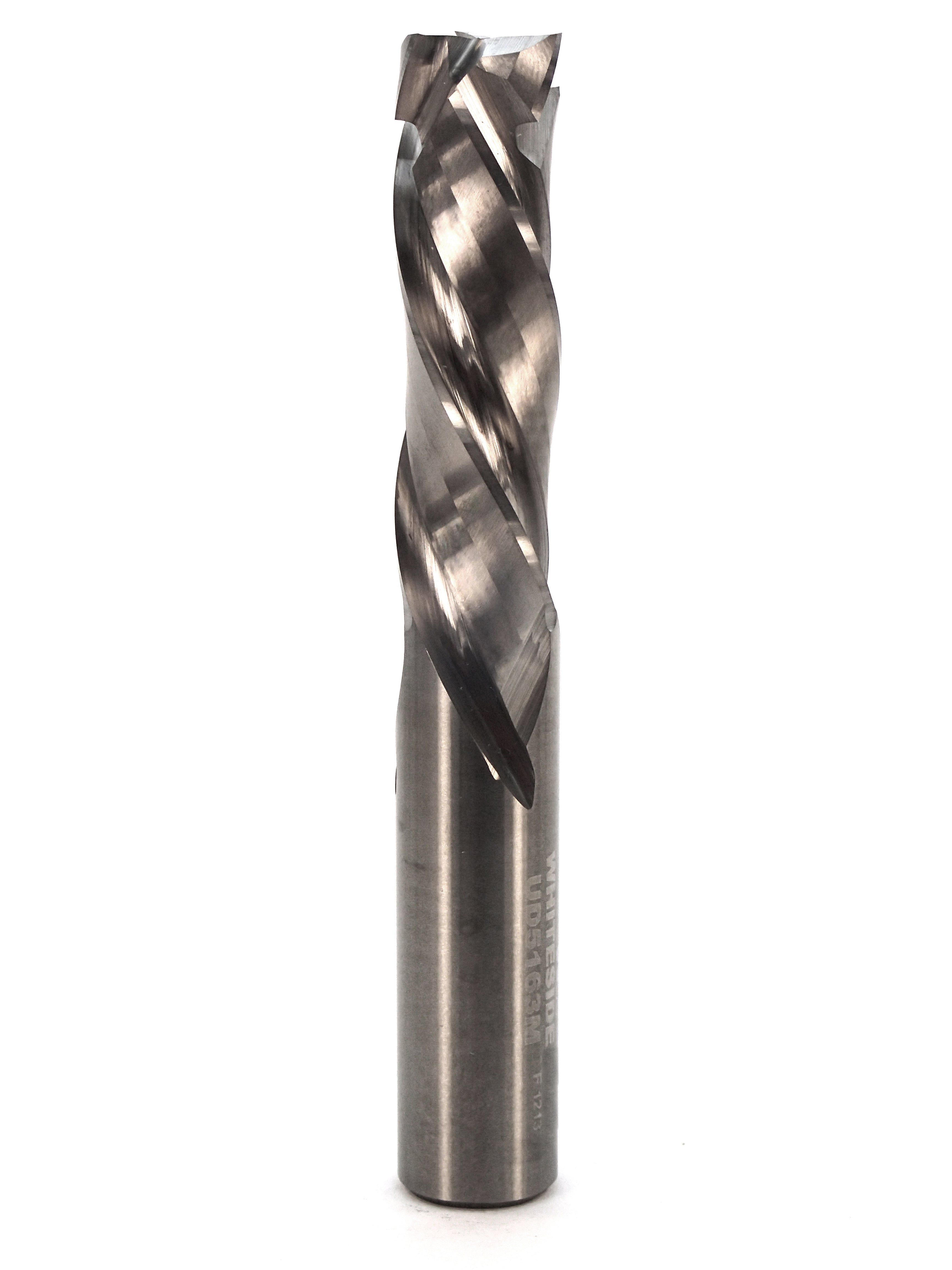

UD5163M

Up/Down Cut Spiral

3+3, 1/2"SH, 1/2"CD, 1-5/8"CL

Product Description

Made from solid carbide, each bit has both up cut and down cut flutes to provide a smooth cut to both the top and bottom side of your project.  This bit has the added feature of shorter up cut flutes, allowing the down shear cutting action to the top surface during shallow cuts.

Part # Shank Dia. Cutting Dia. Cutting Length Overall Length
  UD4123 3/8" 3/8" 1-1/4" 3"
UD4123M 3/8" 3/8" 1-1/4" 3"
  UD5123 1/2" 1/2" 1-1/4" 3"
UD5123M 1/2" 1/2" 1-1/4" 3"
  UD5143 1/2" 1/2" 1-3/8" 3-1/2"
  UD5163 1/2" 1/2" 1-5/8" 3-1/2"
UD5163M 1/2" 1/2" 1-5/8" 3-1/2"

* Mortise Style - These bits have a short up-cut end flute. This design allows down shear cutting action to the top surface during shallow cuts.
