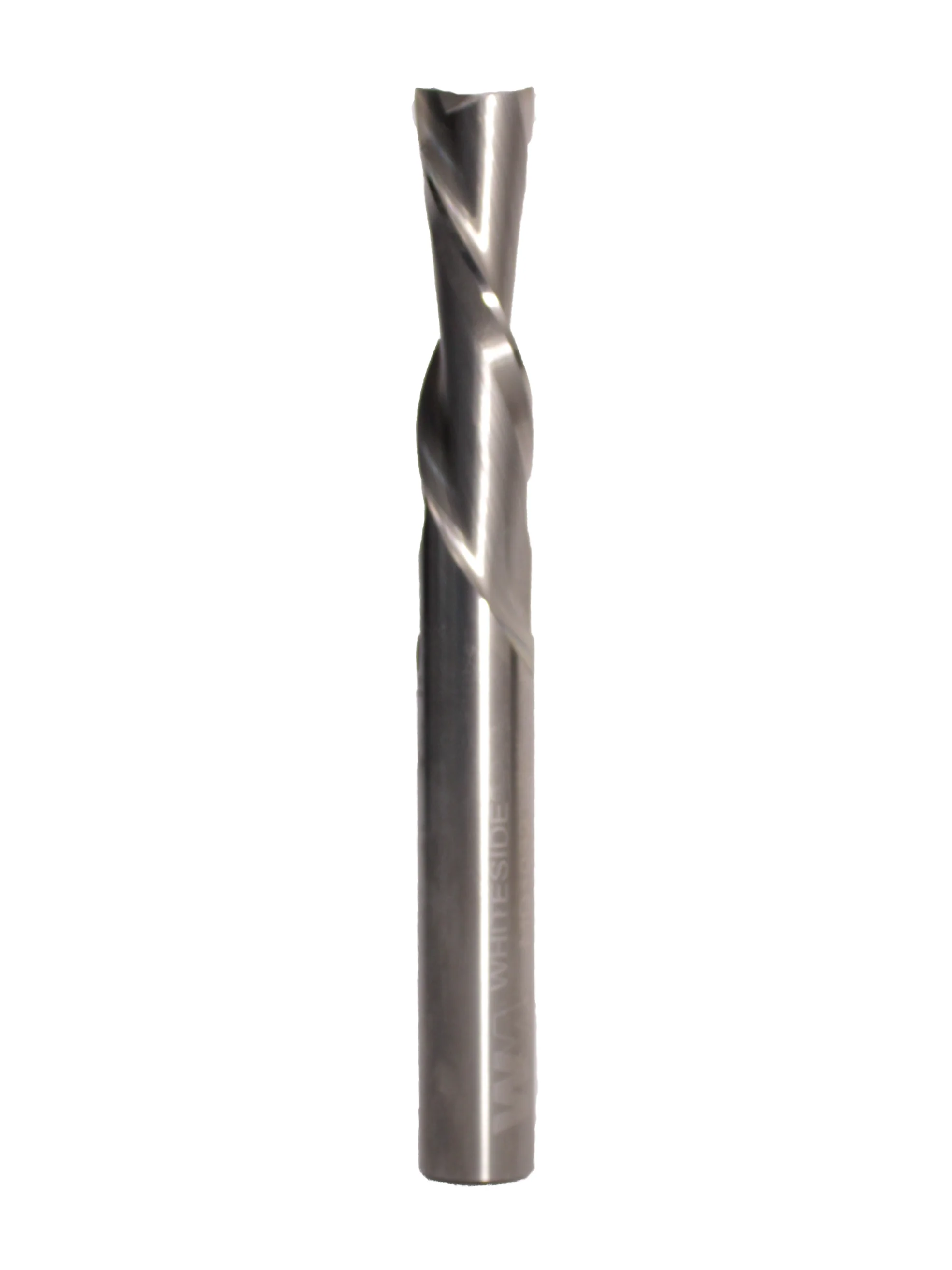

MD1032

Metric Down Cut Spiral

10mmSH, 10mmCD, 1-1/4"CL

Product Description



Spiral bits provide a shear cutting edge that leaves a smoother cut than standard router bits. The down cut spiral design provides the best top surface edges, ejecting chips away from the router when routing through material. This design also decreases the tendency to lift thin/small work pieces during CNC routing.

Materials: Natural woods, composites, hard plastics

Recommended RPM: 16,000-18,000 (max 24,000)

Imperial Shank

Part # Shank Dia. Cutting Dia. Cutting Length Overall Length
RU1805 1/4" 5mm 3/4" 2-1/2"
RU2006 1/4" 6mm 7/8" 2-1/2"
RU4858 1/2" 8mm 1" 3"
RU4910 1/2" 10mm 1-1/8" 3"
RU4918 1/2" 10mm 1-3/4" 4"

Metric Shank - Up Cut

Part # Shank Dia. Cutting Dia. Cutting Length Overall Length
MU622 6mm 6mm 7/8" 2-1/2"
MU825 8mm 8mm 1" 3"
MU832 8mm 8mm 1-1/4" 3"
MU1032 10mm 10mm 1-1/4" 3-1/2"
MU1038 10mm 10mm 1-1/2" 4"

Metric Shank - Down Cut

Part # Shank Dia. Cutting Dia. Cutting Length Overall Length
MD622 6mm 6mm 7/8" 2-1/2"
MD825 8mm 8mm 1" 3"

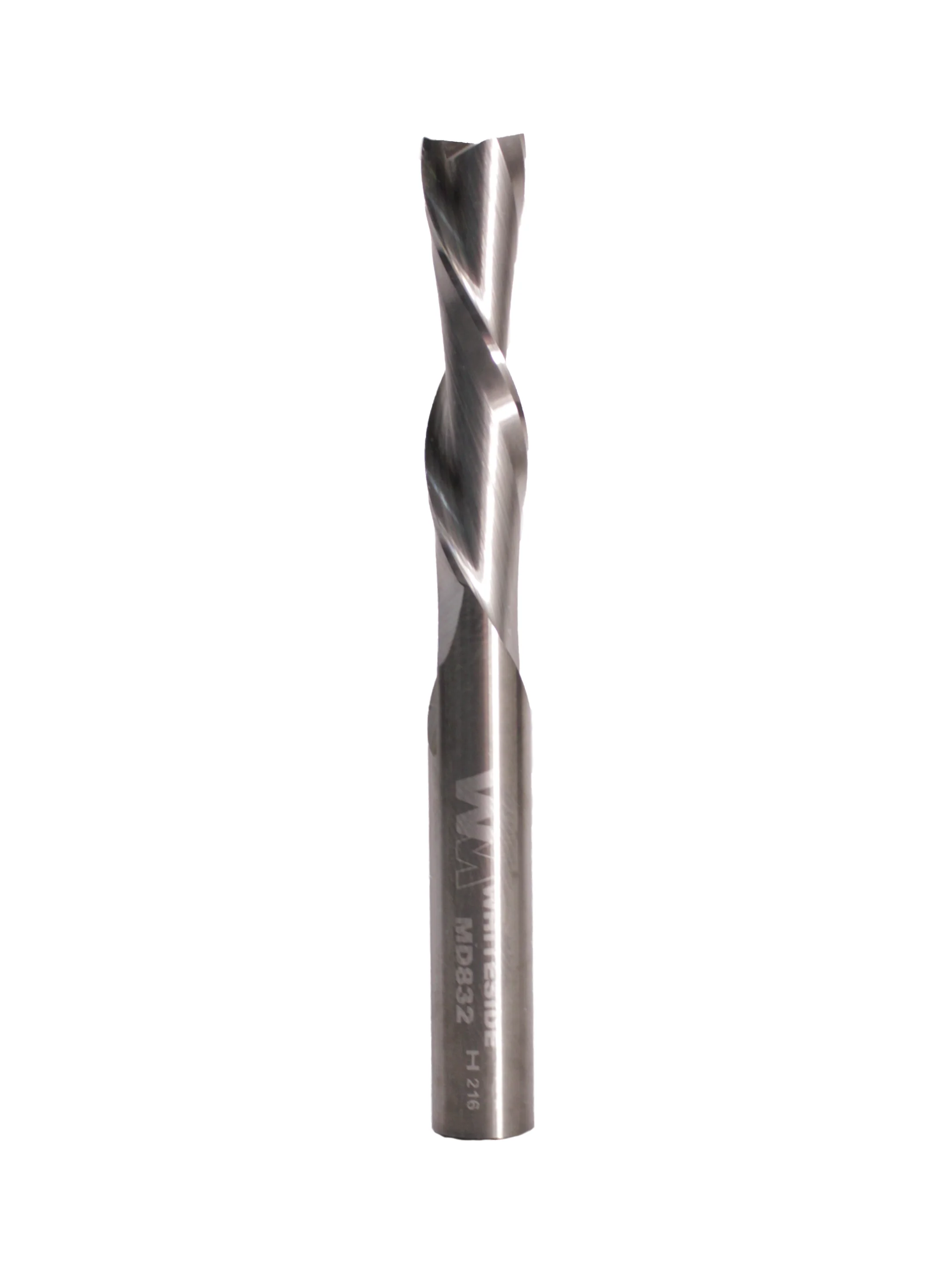

MD832 8mm 8mm 1-1/4" 3"
MD1032 10mm 10mm 1-1/4" 3-1/2"

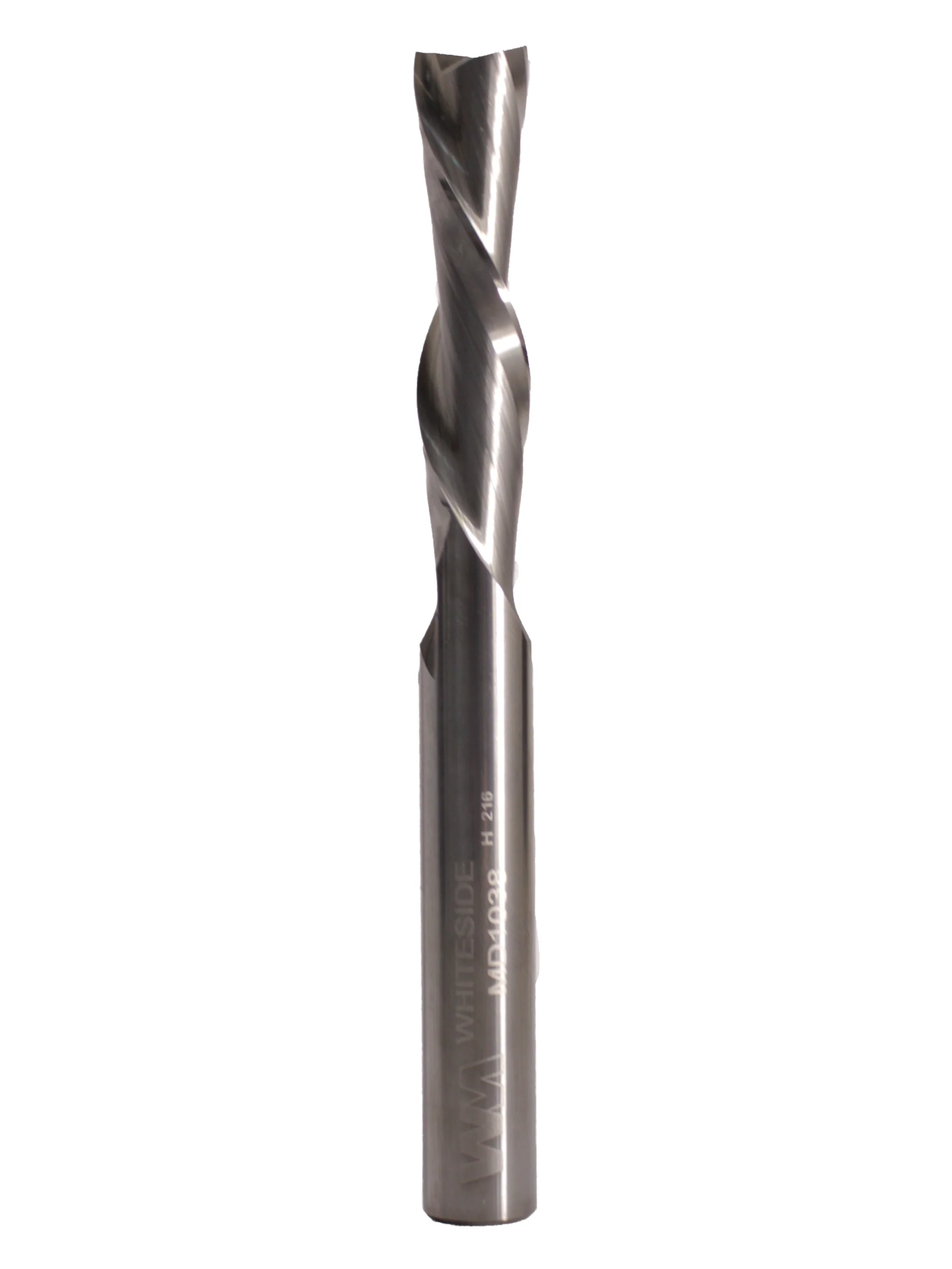

MD1038 10mm 10mm 1-1/2" 4"
