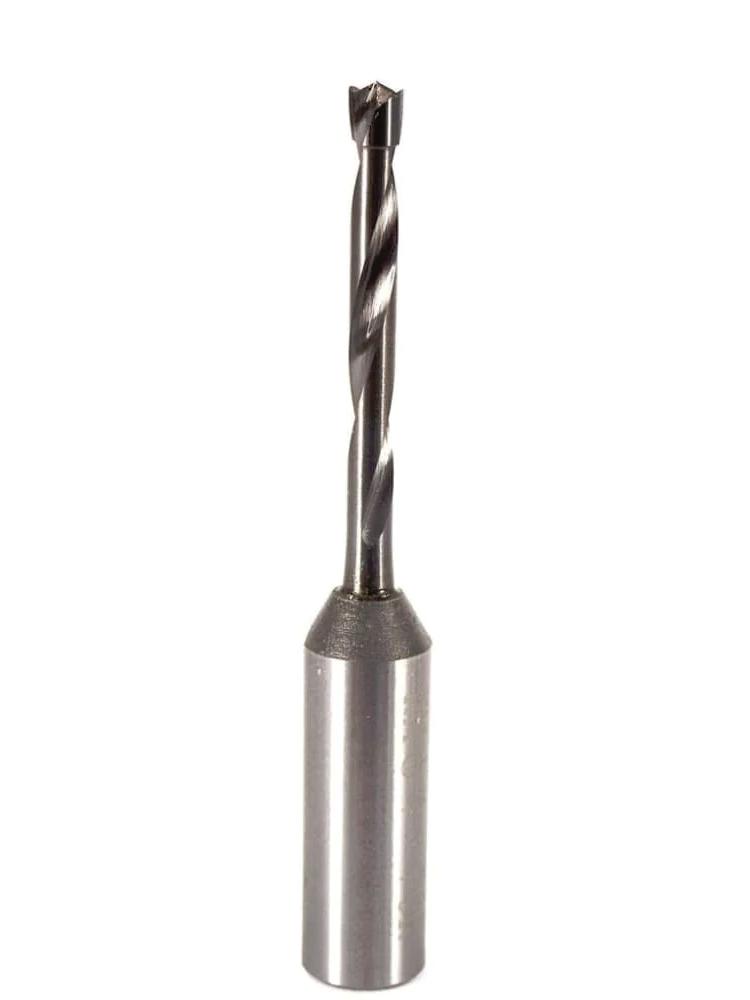

DB4-70SC
Right Hand Brad Point Dowel Drill
Solid Carbide, 4mmCD, 70mmOAL
Product Description
Brad Point Dowel Drills are used for boring a hole into your wood so that dowels can be used in your project.
Similar Sizes
Brad Point (Solid Carbide)
| Cutting Dia. | Shank Dia. | Rotation | Part # 57mm OAL | Part # 70mm OAL |
|---|---|---|---|---|
| METRIC SIZES | ||||
| * 3mm | 10mm | Right | DB3-57SC | DB3-70SC |
| * 3mm | 10mm | Left | DB3-57LHSC | DB3-70LHSC |
| 4mm | 10mm | Right | DB4-57SC | DB4-70SC |
| 4mm | 10mm | Left | DB4-57LHSC | DB4-70LHSC |
| 5mm | 10mm | Right | DB5-57SC | DB5-70SC |
| 5mm | 10mm | Left | DB5-57LHSC | DB5-70LHSC |
| 6mm | 10mm | Right | DB6-57SC | DB6-70SC |
| 6mm | 10mm | Left | DB6-57LHSC | DB6-70LHSC |
| 8mm | 10mm | Right | DB8-57SC | DB8-70SC |
| 8mm | 10mm | Left | DB8-57LHSC | DB8-70LHSC |
Supplied with flat on shank.
3 mm available in Solid Carbide only.
Brad Point (Right Hand)
| Cutting Dia. | Shank Dia. | Part # 57mm OAL | Part # 70mm OAL |
|---|---|---|---|
| INCH SIZES | |||
| 3/16" | 10mm | DB187-57 | DB187-70 |
| 7/32" | 10mm | DB218-57 | DB218-70 |
| 1/4" | 10mm | DB250-57 | DB250-70 |
| 3/8" | 10mm | DB375-70 | |
| 7/16" | 10mm | DB437-70 | |
| 1/2" | 10mm | DB500-70 | |
| METRIC SIZES | |||
| * 3mm | 10mm | DB3-57SC | DB3-70SC |
| 4mm | 10mm | DB4-57 | DB4-70 |
| 5mm | 10mm | DB5-57 | DB5-70 |
| 6mm | 10mm | DB6-57 | DB6-70 |
| 7mm | 10mm | DB7-57 | DB7-70 |
| 8mm | 10mm | DB8-57 | DB8-70 |
| 9mm | 10mm | DB9-57 | DB9-70 |
| 10mm | 10mm | DB10-57 | DB10-70 |
| 11mm | 10mm | DB11-57 | DB11-70 |
| 12mm | 10mm | DB12-57 | DB12-70 |
| 13mm | 10mm | DB13-57 | DB13-70 |
| 14mm | 10mm | DB14-57 | DB14-70 |
| 15mm | 10mm | DB15-57 | DB15-70 |
| 16mm | 10mm | DB16-57 | DB16-70 |
Supplied with flat on shank.
3 mm available in Solid Carbide only.
Brad Point (Left Hand)
| Cutting Dia. | Shank Dia. | Part # 57mm OAL | Part # 70mm OAL |
|---|---|---|---|
| INCH SIZES | |||
| 3/16" | 10mm | DB187-57LH | DB187-70LH |
| 7/32" | 10mm | DB218-57LH | DB218-70LH |
| 1/4" | 10mm | DB250-57LH | DB250-70LH |
| 3/8" | 10mm | DB375-70LH | |
| 7/16" | 10mm | DB437-70LH | |
| 1/2" | 10mm | DB500-70LH | |
| METRIC SIZES | |||
| * 3mm | 10mm | DB3-57LHSC | DB3-70LHSC |
| 4mm | 10mm | DB4-57LH | DB4-70LH |
| 5mm | 10mm | DB5-57LH | DB5-70LH |
| 6mm | 10mm | DB6-57LH | DB6-70LH |
| 7mm | 10mm | DB7-57LH | DB7-70LH |
| 8mm | 10mm | DB8-57LH | DB8-70LH |
| 9mm | 10mm | DB9-57LH | DB9-70LH |
| 10mm | 10mm | DB10-57LH | DB10-70LH |
| 11mm | 10mm | DB11-57LH | DB11-70LH |
| 12mm | 10mm | DB12-57LH | DB12-70LH |
| 13mm | 10mm | DB13-57LH | DB13-70LH |
| 14mm | 10mm | DB14-57LH | DB14-70LH |
| 15mm | 10mm | DB15-57LH | DB15-70LH |
| 16mm | 10mm | DB16-57LH | DB16-70LH |
Supplied with flat on shank.
3 mm available in Solid Carbide only.
