DB4-57

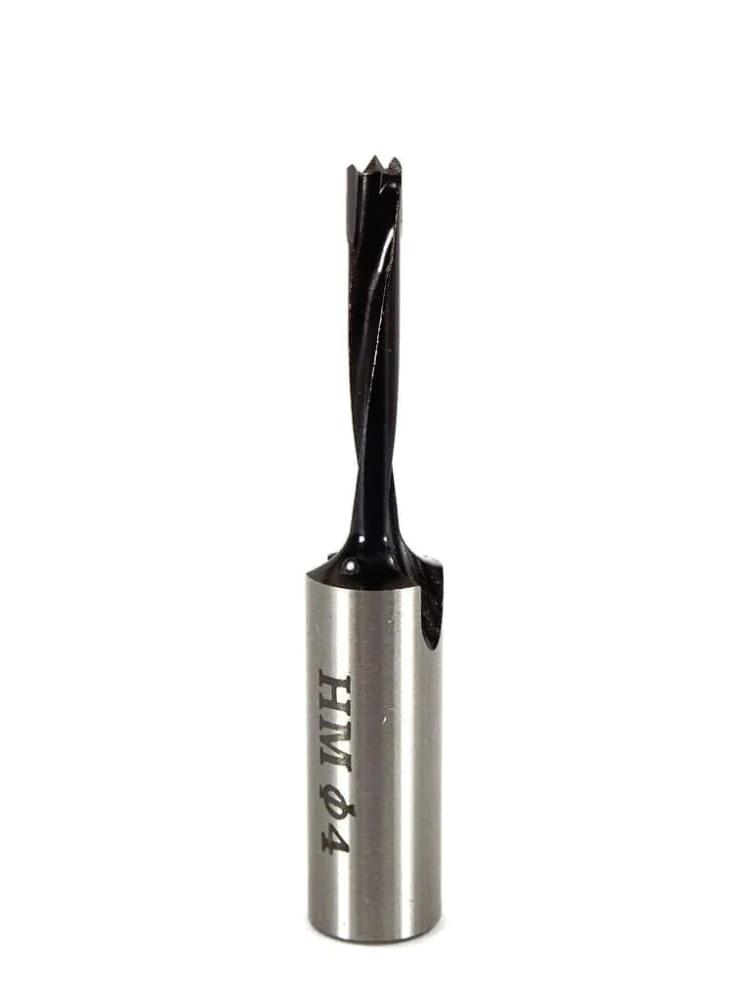

Right Hand Brad Point Dowel Drill

4mmCD, 57mmOAL

Product Description

Brad Point Dowel Drills are used for boring a hole into your wood so that dowels can be used in your project.

Brad Point (Right Hand)

Cutting Dia. Shank Dia. Part # 57mm OAL Part # 70mm OAL
INCH SIZES
   3/16" 10mm DB187-57 DB187-70
   7/32" 10mm DB218-57 DB218-70
  1/4" 10mm DB250-57 DB250-70
  3/8" 10mm   DB375-70
   7/16" 10mm   DB437-70
  1/2" 10mm   DB500-70
METRIC SIZES
* 3mm 10mm DB3-57SC DB3-70SC
   4mm 10mm DB4-57 DB4-70
   5mm 10mm DB5-57 DB5-70
   6mm 10mm DB6-57 DB6-70
   7mm 10mm DB7-57 DB7-70
   8mm 10mm DB8-57 DB8-70
   9mm 10mm DB9-57 DB9-70
    10mm 10mm DB10-57 DB10-70
    11mm 10mm DB11-57 DB11-70
    12mm 10mm DB12-57 DB12-70
    13mm 10mm DB13-57 DB13-70
    14mm 10mm DB14-57 DB14-70
    15mm 10mm DB15-57 DB15-70
    16mm 10mm DB16-57 DB16-70

Supplied with flat on shank.

3 mm available in Solid Carbide only.

Brad Point (Left Hand)

Cutting Dia. Shank Dia. Part # 57mm OAL Part # 70mm OAL
INCH SIZES
   3/16" 10mm DB187-57LH DB187-70LH
   7/32" 10mm DB218-57LH DB218-70LH
  1/4" 10mm DB250-57LH DB250-70LH
  3/8" 10mm   DB375-70LH
   7/16" 10mm   DB437-70LH
  1/2" 10mm   DB500-70LH
METRIC SIZES
* 3mm 10mm DB3-57LHSC DB3-70LHSC
   4mm 10mm DB4-57LH DB4-70LH
   5mm 10mm DB5-57LH DB5-70LH
   6mm 10mm DB6-57LH DB6-70LH
   7mm 10mm DB7-57LH DB7-70LH
   8mm 10mm DB8-57LH DB8-70LH
   9mm 10mm DB9-57LH DB9-70LH
    10mm 10mm DB10-57LH DB10-70LH
    11mm 10mm DB11-57LH DB11-70LH
    12mm 10mm DB12-57LH DB12-70LH
    13mm 10mm DB13-57LH DB13-70LH
    14mm 10mm DB14-57LH DB14-70LH
    15mm 10mm DB15-57LH DB15-70LH
    16mm 10mm DB16-57LH DB16-70LH

Supplied with flat on shank.

3 mm available in Solid Carbide only.

Brad Point (Solid Carbide)

Cutting Dia. Shank Dia. Rotation Part # 57mm OAL Part # 70mm OAL
METRIC SIZES
* 3mm 10mm Right DB3-57SC DB3-70SC
* 3mm 10mm Left DB3-57LHSC DB3-70LHSC
   4mm 10mm Right DB4-57SC DB4-70SC
   4mm 10mm Left DB4-57LHSC DB4-70LHSC
   5mm 10mm Right DB5-57SC DB5-70SC
   5mm 10mm Left DB5-57LHSC DB5-70LHSC
   6mm 10mm Right DB6-57SC DB6-70SC
   6mm 10mm Left DB6-57LHSC DB6-70LHSC
   8mm 10mm Right DB8-57SC DB8-70SC
   8mm 10mm Left DB8-57LHSC DB8-70LHSC

Supplied with flat on shank.

3 mm available in Solid Carbide only.
