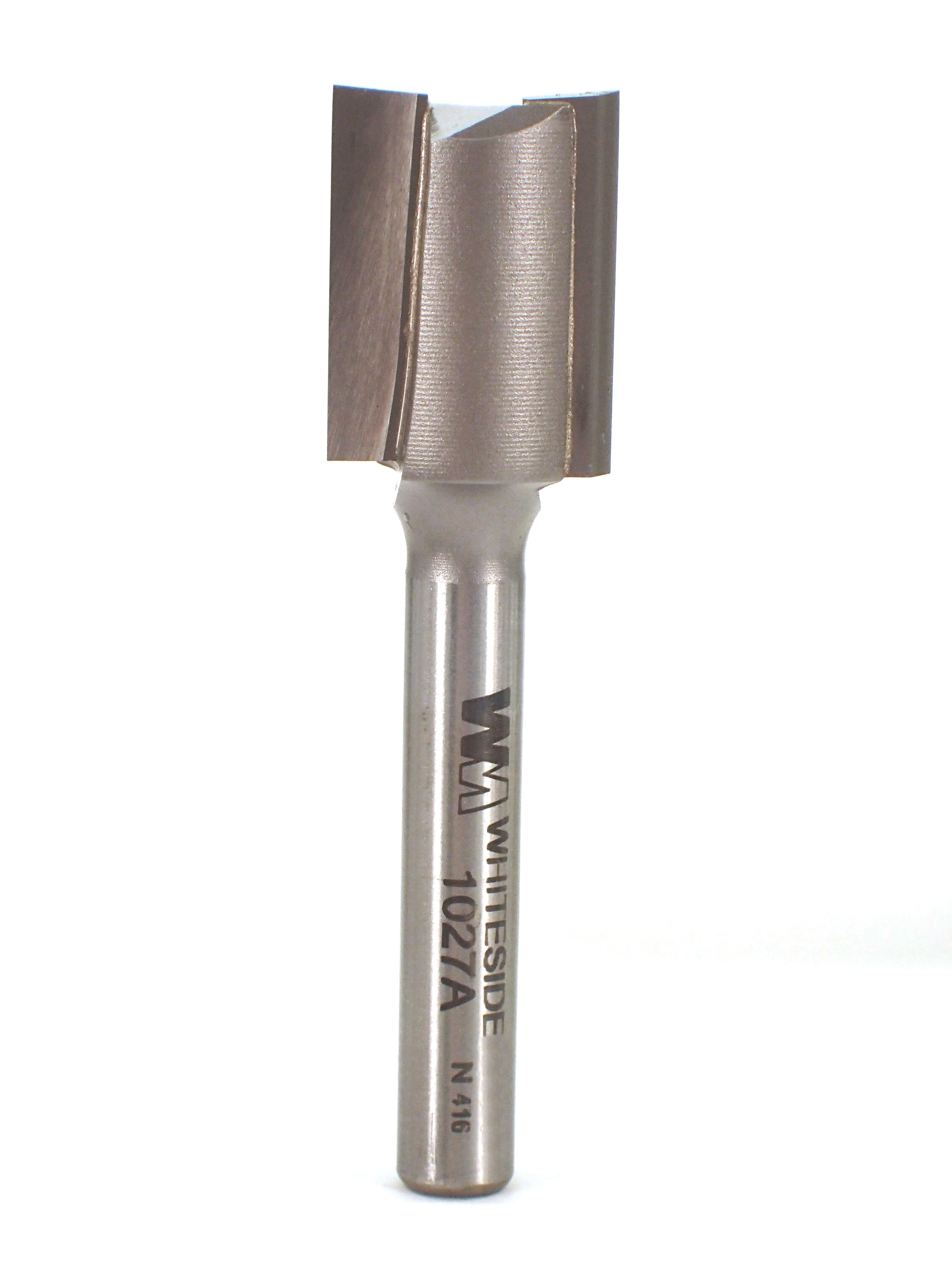

1027A
Straight Bit
1/4"SH, 19/32"CD, 3/4"CL
Product Description
Standard Straight bit with plunging capabilities for cutting grooves, dados, mortising, and more.
Materials: Natural woods, composite woods, hard plastics
Recommended RPM: 14,000-16,000 (max 24,000)
Similar Sizes
| Part # | Cutting Dia. | Cutting Length | Overall Length | Special Use |
|---|---|---|---|---|
| 1/4" SHANK - Single Flute | ||||
| 1004 | 1/4" | 3/4" | 2-1/4" | - |
| 1005 | 1/4" | 1" | 2-1/2" | - |
| 1007 | 1/4" | 1" | 3-1/4" | Air Router |
| 1008 | 9/32" | 3/4" | 2-1/4" | - |
| 1/4" SHANK - Two Flute | ||||
| 1012 | 1/4" | 1/2" | 2" | - |
| 1013 | 1/4" | 3/4" | 2-1/4" | Incra® |
| 1014 | 1/4" | 1" | 2-1/2" | - |
| 1016 | 1/4" | 1" | 3" | - |
| 1016-01 | 1/4" | 1" | 3-1/4" | Air Router |
| 1018 | 9/32" | 1" | 3" | - |
| 1019 | 5/16" | 1" | 2-1/2" | OmniJig® #43300 |
| 1020 | 5/16" | 1" | 2-3/4" | Leigh #140 |
| 1020x8 | 5/16" | 1" | 2-3/4" | Leigh #140-8mm Shank |
| 1021 | 3/8" | 3/4" | 2-1/4" | - |
| 1022 | 3/8" | 1" | 2-1/2" | Incra® |
| 1023 | 3/8" | 1-1/4" | 2-3/4" | - |
| 1023A | 13/32" | 1" | 2-1/2" | - |
| 1024 | 7/16" | 1" | 2-1/2" | - |
| 1024A | 31/64" | 3/4" | 2-1/4" | Plywood Dado |
| 1025 | 1/2" | 3/4" | 2-1/4" | - |
| 1026 | 1/2" | 1" | 2-1/2" | OmniJig® #43318 |
| 1027 | 9/16" | 3/4" | 2-1/4" | - |
| 1027A | 19/32" | 3/4" | 2-1/4" | Plywood Dado |
| 1028 | 5/8" | 3/4" | 2-1/8" | - |
| 1029 | 11/16" | 3/4" | 2-1/8" | - |
| 1029A | 23/32" | 3/4" | 2-1/8" | Plywood Dado |
| 1030 | 3/4" | 3/4" | 2-1/8" | - |
| 1031 | 3/4" | 1" | 2-5/8" | - |
| 1033 | 1" | 3/4" | 2-1/8" | - |
| 1303 | 1-1/4" | 1/2" | 2-1/8" | Mortising |
